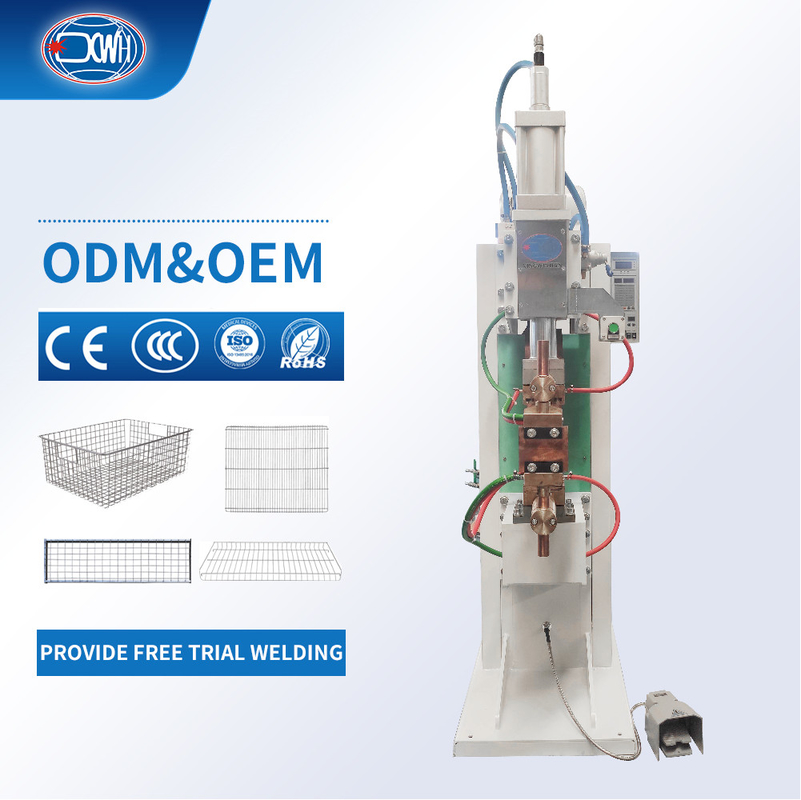

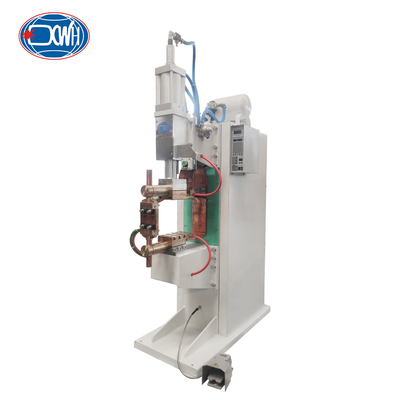

Projection Single Head Pneumatic Row Spot Welding Machine for Wire Mesh

Projection Single Head Pneumatic Row Spot Welding Machine for Wire Mesh

Brand Name:	XWH
Model Number:	DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
MOQ:	1
Price:	USD3500-USD5000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，RoHs

Product Name:

Mesh Projection Single Head Pneumatic Row Spot Welding Machine

Application:

Welded Wire Mesh Machine

Function:

Welded Mesh Machine

Machine Type:

Steel Mesh Welding Machines

Keyword:

Steel Wire Mesh Welding Machine

Welding Material:

Metal Aluminum Stainless Steel

Feature:

Wire Mesh Spot Welding Machine

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Projection Pneumatic Row Spot Welding Machine

Single Head Pneumatic Welding Machine

Product Description

Bird Cages Welded Mesh Projection Single Head Pneumatic Row Spot Welding Machine

Product Introduction:

The long arm spot welding machine is our DTN series fixed point projection spot welding machine, customized with a long welding arm for welding special workpiece. The spot welder is a dual purpose welding machine produced by our company, mainly used for welding low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve welding between plates, between plates and projection welding nuts and bolts.

Features:

1. High welding efficiency: Multiple welding points can be evenly welded in one go, and the operation is controlled by a foot switch, with high productivity and low labor intensity.

2. Wide applicability: Suitable for welding metal mesh and mesh covers, especially for welding steel mesh.

3. Advanced technology: Adopting synchronous CNC technology, the welding time and sub control welding are both composed of digital programming systems, which have the characteristics of high automation and easy operation.

Technical Parameters:

Item/Model		DN-40	DN-63	D(T)N-80	D(T)N-100	D(T)N-125	D(T)N-160	D(T)N-200
Rated power At 50%	KVA	40	63	80	100	125	160	200
Rated primary power	V	380	380	380	380	380	380	380
Secondary Voltage	V	5.2	6.7	7.9	8.3	8.6	9.1	10.6
Rated frequency	HZ	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Max.Short Circuit Current	KA	14	15	16	18	20	28	34
Max. weld power	KVA	62	86	170	280	300	330	410
Throat	MM	500	500	630	630	630	630	630
Max.Froce at electrodes	N	6000	6000	10000	10000	10000	12000	12000
Working stroke	MM	20	20	30	40	40	50	50
Cooling Water Consumpion 2.5bar	L/min	6	6	8	8	8	10	10
Electrodes tlp	MM	Φ13*45	Φ13*45	Φ16*45	Φ16*45	Φ16*45	Φ20*45	Φ20*45
Arms	MM	Φ50*150	Φ50*150	Φ80*220	Φ80*220	Φ80*220	Φ80*220	Φ80*220
Projection Clamping Plate	MM	125*125	125*125	200*200	200*200	200*200	200*200	200*200
Max.Welding Capaciry A3 steel	MM	2.5+2.5	3+3	4+4	4.5+4.5	5+5	5+5	6+6

General Structures:

Projection Single Head Pneumatic Row Spot Welding Machine for Wire Mesh 0

Detailed Images:

Projection Single Head Pneumatic Row Spot Welding Machine for Wire Mesh 1

Standard Type: Mainly used for welding low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve welding between plates, between plates and projection welding nuts and bolts.

Projection Single Head Pneumatic Row Spot Welding Machine for Wire Mesh 2

Customized Type: Customized with flat electrode, a wider and longer contact surface, suitable for welding wire meshes, cages and steel bars.

Production Line:

Projection Single Head Pneumatic Row Spot Welding Machine for Wire Mesh 3

Application:

Projection Single Head Pneumatic Row Spot Welding Machine for Wire Mesh 5

Projection Single Head Pneumatic Row Spot Welding Machine for Wire Mesh 7

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
