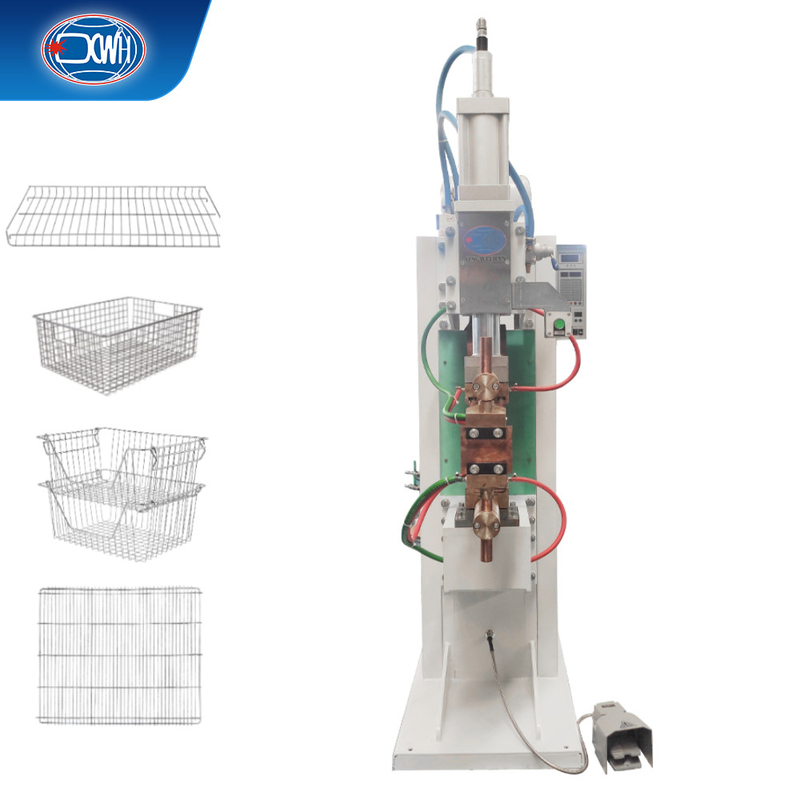

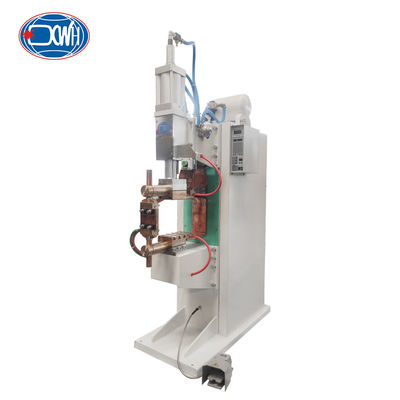

Stationary Spot Welding Machine
Created with Pixso.

Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine

Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine

Brand Name: XWH
Model Number: DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
MOQ: 1
Price: USD3500-USD5000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Place of Origin:
China
Certification:
CE,RoHs
Product Name:
Steel Wire Welded Mesh Row Welding Machine
Application:
Mesh Welding Rebar Machine
Function:
Steel Welded Mesh Machine
Machine Type:
Spot Welding Machine For Wire Mesh
Keyword:
Rebar Mesh Welding Machine
Welding Material:
Metal Aluminum Stainless Steel
Feature:
Machine Of Welded Wire Mesh
Warranty:
12 Months Guarantee
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
Highlight:

Galvanized Rebar Cage Welding Machine

,

Steel Wire Welded Mesh Welding Machine

,

Manual Welder Row Welding Machine

Product Description

Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine







Product Introduction:



The long arm spot welding machine is our DTN series fixed point projection spot welding machine, customized with a long welding arm for welding special workpiece. The spot welder is a dual purpose welding machine produced by our company, mainly used for welding low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve welding between plates, between plates and projection welding nuts and bolts.







The Application:



1. Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.



2. Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring, also reduces the noise when welding.



3. Upper and lower electrode adopts supplementary stroke pressurized mode which can improve the operation of welding process.



4. Intelligent microcomputer control, multiple-section of discharging. It can be used to preheat, to weld, to reform to temper for special materials. Solve the problems of cold joint or loose welding due to current shunt during the process of multiple projection welding. Especially suitable for welding high-carbon steel or special inter layer of metal plate.



5. Be able to memorize 15 types of welding model. When the voltage of power supply is fluctuated, it can automatically compensate the current to weld.







Technical Parameters:





Item/Model   DN-40 DN-63 D(T)N-80 D(T)N-100 D(T)N-125 D(T)N-160 D(T)N-200
Rated power At 50% KVA 40 63 80 100 125 160 200
Rated primary power V 380 380 380 380 380 380 380
Secondary Voltage V 5.2 6.7 7.9 8.3 8.6 9.1 10.6
Rated frequency HZ 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Max.Short Circuit Current KA 14 15 16 18 20 28 34
Max. weld power KVA 62 86 170 280 300 330 410
Throat MM 500 500 630 630 630 630 630
Max.Froce at electrodes N 6000 6000 10000 10000 10000 12000 12000
Working stroke MM 20 20 30 40 40 50 50
Cooling Water Consumpion 2.5bar L/min 6 6 8 8 8 10 10
Electrodes tlp MM Φ13*45 Φ13*45 Φ16*45 Φ16*45 Φ16*45 Φ20*45 Φ20*45
Arms MM Φ50*150 Φ50*150 Φ80*220 Φ80*220 Φ80*220 Φ80*220 Φ80*220
Projection Clamping Plate MM 125*125 125*125 200*200 200*200 200*200 200*200 200*200

Max.Welding Capaciry A3 steel

MM 2.5+2.5 3+3 4+4 4.5+4.5 5+5 5+5

6+6







General Structures:

Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine 0



Detailed Images:



Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine 1

Standard Type: Mainly used for welding low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve welding between plates, between plates and projection welding nuts and bolts.





Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine 2

Customized Type: Customized with flat electrode, a wider and longer contact surface, suitable for welding wire meshes, cages and steel bars.







Production Line:



Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine 3Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine 4







Workpiece:



Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine 5Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine 6

Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine 7Galvanized Rebar Cage Steel Wire Welded Mesh Manual Welder Row Welding Machine 8







FAQ:



1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.




8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
