Product Introduction:

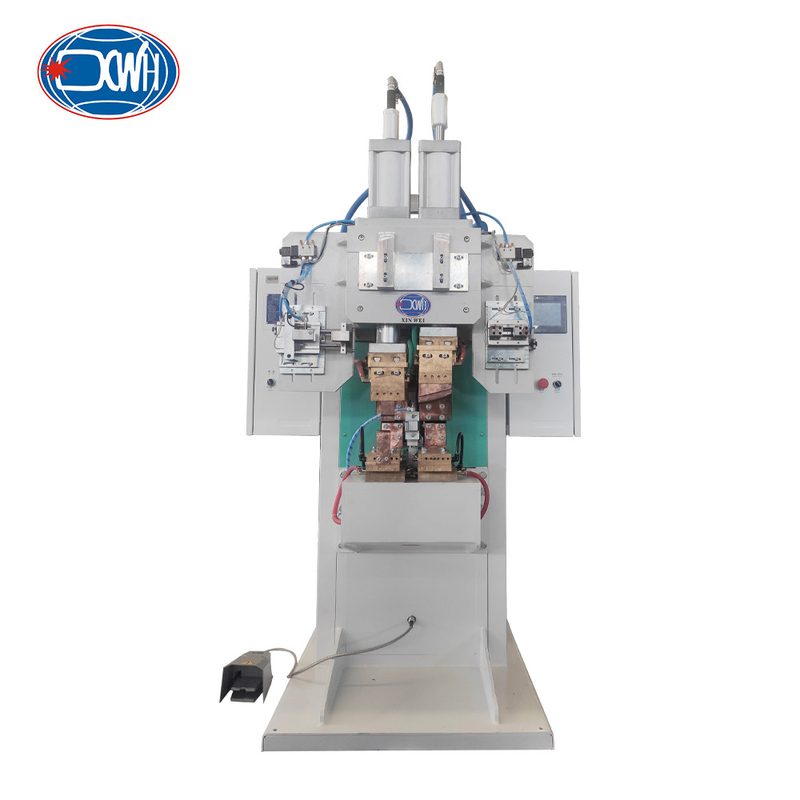

The two heads welding machine is customized for welding lever lock ring of steel drum. The all surface of workpiece is galvanized coated / Chrome Plating. Mainly composed of components such as the host frame, pneumatic transmission mechanism, welding positioning fixture, secondary circuit, welding transformer, welding controller, and water and gas circuit system. Equipment footprint: (length x width x height) 1300mm × 1200mm × 2100mm, equipment weight 900KG.

Features:

1. The overall structure of the machine adopts a unique tree style, and the body is designed for impact resistance, earthquake resistance, and high rigidity. Through precise mechanical processing, it meets the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the rack to ensure the rigidity of the equipment during use and minimize slight deformation during the welding process, ensuring the stability of welding and the safety of manual use.

2. The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points.

3. Capacitive charging and discharging have fast speed, short welding time, and high efficiency.

4. The operation is controlled by a foot switch, which has high production efficiency, low labor intensity, and conforms to the operating habits of operators.

Technical Parameters:

General Structures:

Detailed Images:

The Upper Electrode:The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points.

The Pressure Component:The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.

Production Line:

Application:

FAQ:
