Resistance Spot Welders Projection Stainless Steel Shock Absorber Welding Machine

Resistance Spot Welders Projection Stainless Steel Shock Absorber Welding Machine

Brand Name:	XWH
Model Number:	D(N)B-100，D(N)B-160, D(N)B-200, D(N)B-250
MOQ:	1
Price:	USD24000-USD30000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHs

Product Name:

Resistance Welders Projection Stainless Steel Shock Absorber Welding Machine

Application:

Shock Absorber Welding

Function:

Metal Spot Welding Machine

Machine Type:

Resistance Spot Projection Welding

Keyword:

Stationary Spot And Projection Welding Machine

Welding Material:

Projection Welding Machine

Feature:

Pedal Point Welding Machine

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Stainless Steel Spot Welders

Projection Spot Welders

Shock Absorber Spot Welders

Product Description

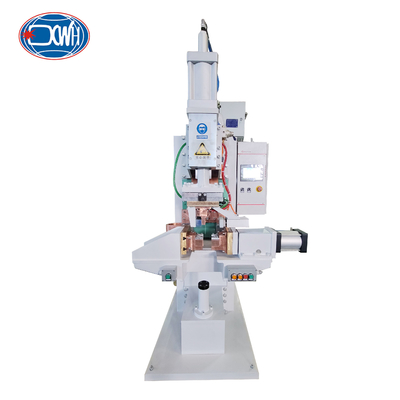

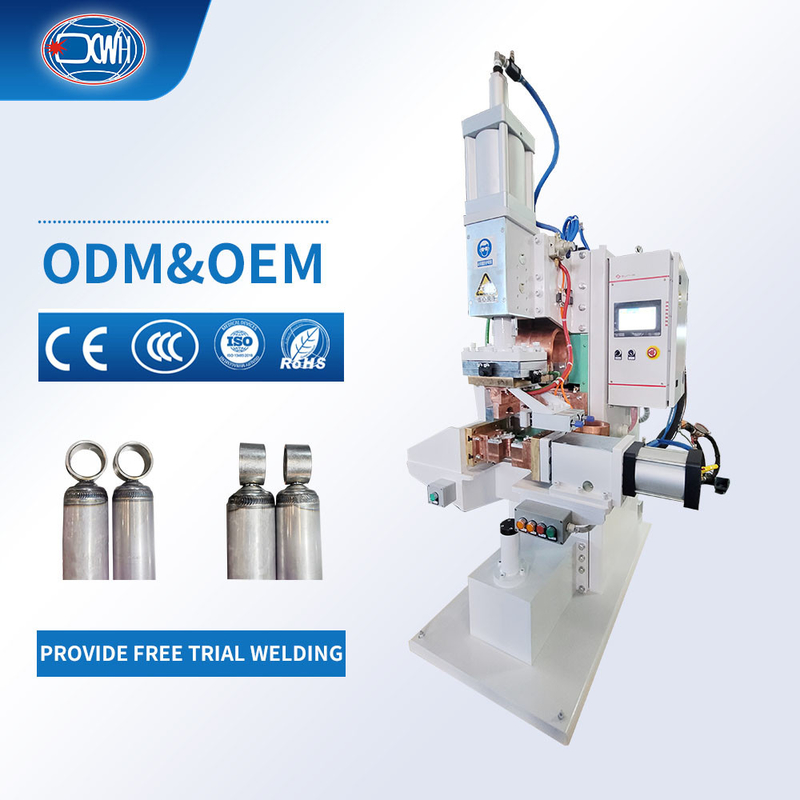

Resistance Spot Welders Projection Stainless Steel Shock Absorber Welding Machine

Product Introduction:

The projection welding machine is designed for welding shock absorber oil storage cylinder convex ring.Mainly composed of main frame, pneumatic transmission mechanism, horizontal welding mechanism, support components, secondary circuit, welding transformer, welding controller, water and gas circuit system and other components.

Welding Advantages:

1.Within a unit length, the heating time is short and the heat is concentrated, resulting in a small heat affected zone and minimal deformation and stress. Therefore, it is usually not necessary to arrange correction and heat treatment processes after welding.

2.No need for filler metals such as welding wires and rods, as well as welding consumables such as chlorine, ethylene, hydrogen, etc., resulting in low welding costs.

3.Simple operation, easy to achieve mechanization and automation, low requirements for worker proficiency, and low labor intensity.

4.High productivity, low noise, and no harmful gases.

5.Can be used for convex welding of hoop rings.

Technical Parameters:

Items Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current (KA)	30	35	40	45
Duty cycle(%)	50	50	50	50
Max. force(N)	6000	6000	10000	15000
Electrode length( MM)	450	450	450	500
Working stroke( MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max. welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

General Structures:

Resistance Spot Welders Projection Stainless Steel Shock Absorber Welding Machine 0

Resistance Spot Welders Projection Stainless Steel Shock Absorber Welding Machine 1

Detailed Images:

Resistance Spot Welders Projection Stainless Steel Shock Absorber Welding Machine 2

The Upper Electrode: The upper electrode is pressurized with an auxiliary cylinder, making stroke adjustment convenient and precise, allowing for continuous adjustment of the workpiece operation stroke.

Resistance Spot Welders Projection Stainless Steel Shock Absorber Welding Machine 3

Gas Storage Tank: The spare dedicated gas storage tank for welding machines is beneficial in reducing welding pressure fluctuations and ensuring stable welding force.

Production Line:

Resistance Spot Welders Projection Stainless Steel Shock Absorber Welding Machine 4

Application:

Resistance Spot Welders Projection Stainless Steel Shock Absorber Welding Machine 5

Resistance Spot Welders Projection Stainless Steel Shock Absorber Welding Machine 6

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
