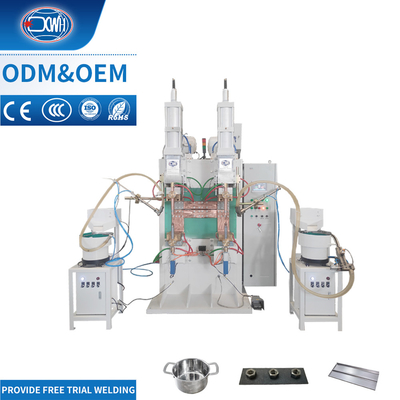

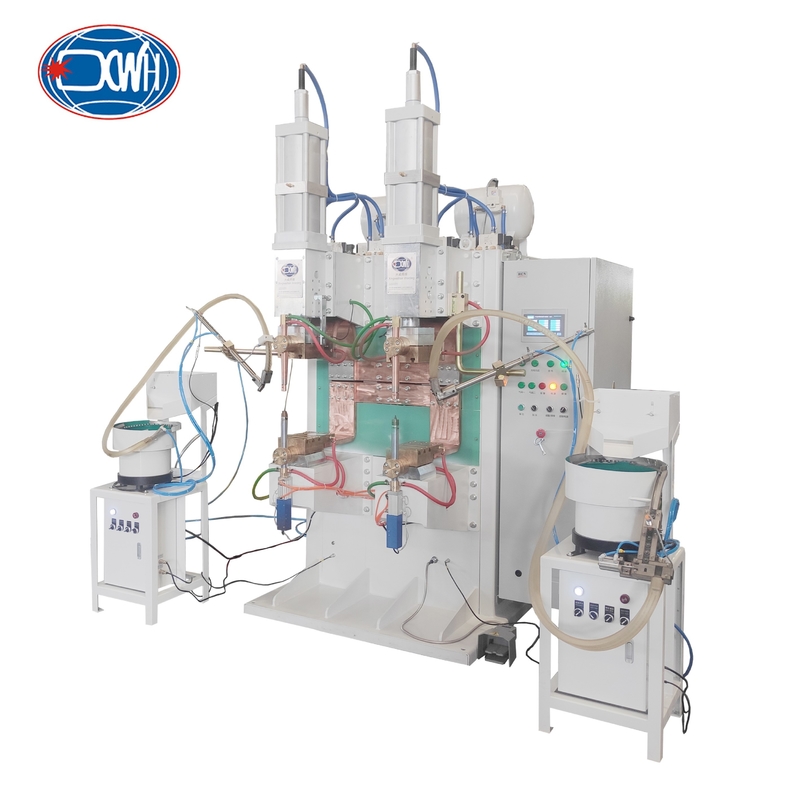

20000J Capacitance Nut Welder Capacitor Discharge Capacitive Spot Welding Machine

20000J Capacitance Nut Welder Capacitor Discharge Capacitive Spot Welding Machine

Product Introduction:

Capacitive energy storage spot welding is the use of capacitors to store energy. When the capacitor discharges instantaneously, the energy can melt small areas of solder joints. Compared with other welding methods such as AC machines, the instantaneous power drawn from the power grid is low, the load balance of each phase is high, the power factor is high, and concentrated energy can be provided to the welding area. It can obtain welded parts with good surface quality and small deformation, and can weld some difficult to weld non-ferrous metals with good thermal conductivity and conductivity. Suitable for welding aluminum, copper silver, nickel metal and alloy materials. This welding method has been widely used in industrial production, such as hardware, home appliances, electronics, metal vessels and other industries.

Features:

Technical Parameters:

General Structures:

Detailed Images:

The Upper Electrode: The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points. Adopting double-layer cylinder pressurization, welding pressure is sufficient and stable.

Dual Cylinders: The cylinder adopts a combination of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, with wear-resistant surface and long service life, achieving extremely high spot welding speed, electrode pressurization, smooth and fast.

Dual Gas Storage Tanks: Dual backup dedicated gas storage tanks, greatly reducing welding pressure fluctuations and ensuring stable welding force.

Equipped With Two Nut Conveyors: Equipped with two nut conveyors, it has increased the time for nut loading and unloading, greatly reducing labor and time costs, and improving work efficiency.

Scene Images:

Welding Test:

Application:

FAQ:
