Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber

Brand Name:	Xingweihan
Model Number:	DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
MOQ:	1
Price:	USD28000-USD30000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, ISO

Product Name:

Rolling Seam Welding Machine For Shock Absorber

Application:

Automatic Seam Roll Welding Machine

Function:

Resistance Seam Welding Machine

Machine Type:

Seam Welding Production Line

Keyword:

Automatic Welding Machine

Welding Material:

Carbon Steel

Feature:

High Efficiency Automatic Welding

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Product Description

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber

Product Introduction:

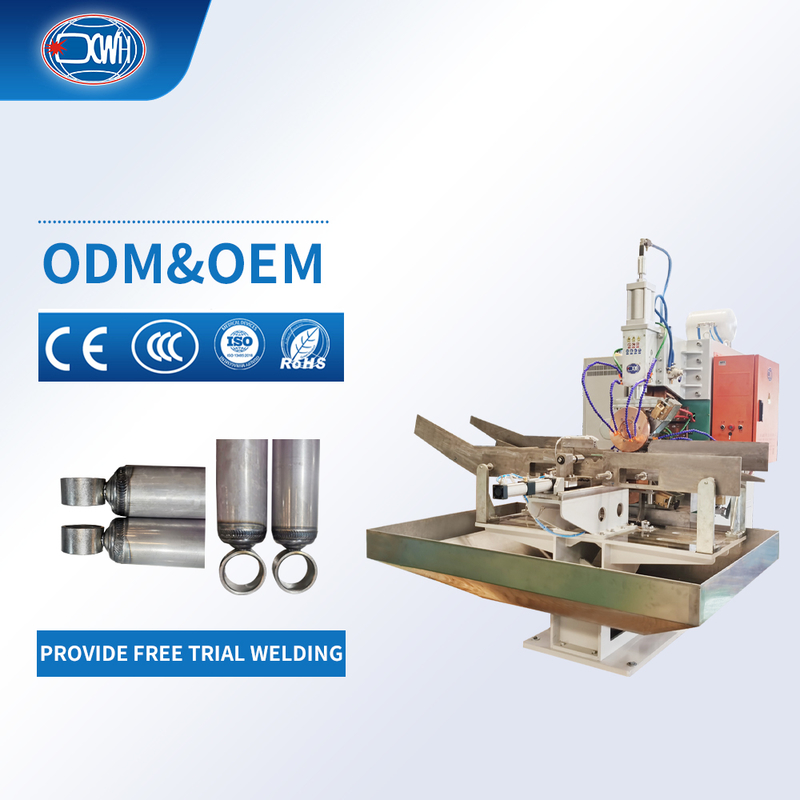

The horizontal automatic seam welding machine is mainly designed for welding shock absorbers or piston cylinder tubes. It is an automatic welding equipment used for welding circular and annular welds, widely used for welding various metal materials with sealing requirements, including stainless steel, low-alloy steel, aluminum, iron, and other alloys. It mainly completes welding by rotating the electrode to drive the workpiece to rotate.

Features:

1. The overall structure of the machine adopts a single tree style, and the body is designed for impact resistance, earthquake resistance, and high rigidity. Through precise mechanical processing, it meets the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the rack to ensure the rigidity of the equipment during use and minimize slight deformation during the welding process, ensuring the stability of welding and the safety of manual use.

2.Electrode pressurization, smooth and fast, aluminum alloy cylinder barrel, low damping sealing ring, light friction ring combination cylinder, equipped with a pilot high flow electromagnetic directional valve, with faster response speed and extremely sensitive follow-up performance, achieving extremely high dot speed.

3. Insulation protection, safe and reliable. The secondary side circuit adopts a pressurized cylinder seat and upper arm insulation method, which facilitates direct installation and welding work on the lower seat without worrying about short circuits. It is simple and practical

4. Welding power supply, energy-saving and efficient. The main welding circuit adopts a fully water-cooled resistance welding transformer and rectifier, with strong output power.

Technical Parameters:

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

General Structures:

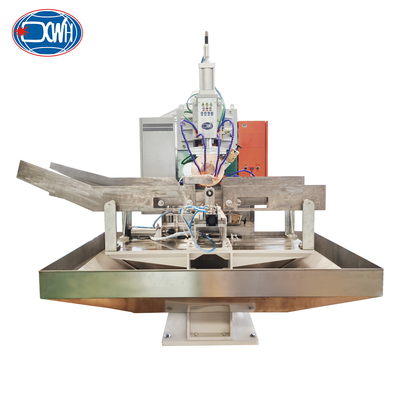

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 0

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 1

Detailed Images:

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 2

Customized Fixtures and Moving Components: Adopting a cyclic transplanting mechanism can achieve fully automatic welding and improve welding efficiency.The device has high compatibility and can weld workpieces of different diameters and lengths.

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 3

Cylinder: Adopting aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring combination with hydraulic cylinder, the surface is wear-resistant and has a long service life, achieving extremely high dot speed, electrode pressurization, smooth and fast.

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 4

Gas Storage Tanks: The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 5

Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

Scene Images:

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 6

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 7

Application:

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 8

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 9

Semiautomatic Automatic Seam Resistance Welding Machine For Shock Absorber 10

Related Products:

Projection Welding Machine For Shock Absorber: The shock absorber storage cylinder convex ring special machine is a specialized equipment developed for the forming process of automotive shock absorber storage cylinder convex rings. It adopts advanced hydraulic forming and precision control technology to achieve high-precision and high-efficiency processing of the storage cylinder convex ring parts. This device is designed specifically for the manufacturing of core components of automotive suspension systems, and can meet the requirements of convex ring forming for different specifications of oil storage cylinders.

Shock Absorber Welding Machine: Designed based on the workpiece with protrusions on the bracket and inner plate provided by the customer. The thickest plate thickness of the welding material is 4.5mm+2.5mm (with 5 welding protrusions on one side). This welding machine adopts pneumatic pressurization and vertical movement of the upper electrode. Each model has the characteristics of simple and compact structure, novel and beautiful appearance, stable performance, safe and reliable use, high efficiency and energy conservation.

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.

Company Profile:

Item/Model		DN-40	DN-63	D(T)N-80	D(T)N-100	D(T)N-125	D(T)N-160	D(T)N-200
Rated power At 50%	KVA	40	63	80	100	125	160	200
Rated primary power	V	380	380	380	380	380	380	380
Secondary Voltage	V	5.2	6.7	7.9	8.3	8.6	9.1	10.6
Rated frequency	HZ	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Max.Short Circuit Current	KA	14	15	16	18	20	28	34
Max. weld power	KVA	62	86	170	280	300	330	410
Throat	MM	500	500	630	630	630	630	630
Max.Froce at electrodes	N	6000	6000	10000	10000	10000	12000	12000
Working stroke	MM	20	20	30	40	40	50	50
Cooling Water Consumpion 2.5bar	L/min	6	6	8	8	8	10	10
Electrodes tlp	MM	Φ13*45	Φ13*45	Φ16*45	Φ16*45	Φ16*45	Φ20*45	Φ20*45
Arms	MM	Φ50*150	Φ50*150	Φ80*220	Φ80*220	Φ80*220	Φ80*220	Φ80*220
Projection Clamping Plate	MM	125*125	125*125	200*200	200*200	200*200	200*200	200*200
Max.Welding Capaciry A3 steel	MM	2.5+2.5	3+3	4+4	4.5+4.5	5+5	5+5	6+6

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700
