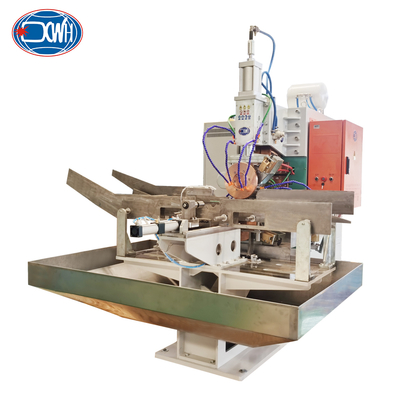

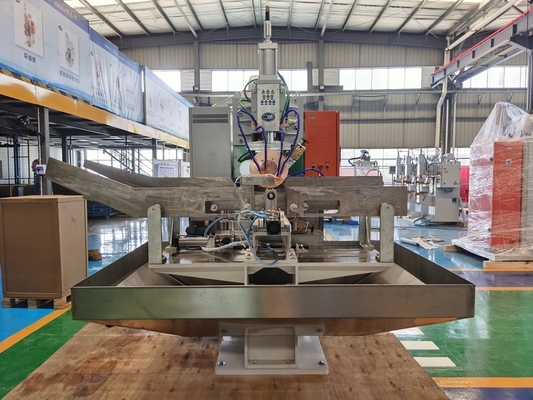

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel

Brand Name:	Xingweihan
Model Number:	DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
MOQ:	1
Price:	USD28000-USD30000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, ISO

Product Name:

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel

Application:

Seam Welding Machine Rolling Resistance Seam

Function:

Rolling Seam Welder

Machine Type:

Automated Welding Machine

Keyword:

Seam Welding Machine Price

Welding Material:

Carbon Steel

Feature:

High Efficiency

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Product Description

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel

Product Introduction:

Horizontal seam welding machines are particularly suitable for the production of industrial products such as automotive parts, water heaters, tanks, and enclosures. It has a wide range of applications and can handle welded parts of different sizes and shapes. And this automatic seam welding machine is designed for welding shock absorbers or piston cylinder tubes, which can automatically load, detect, and weld, and is compatible with various material welding requirements. Millimeter level precision welds can ensure welding quality.

Features:

1. Driving method: Horizontal seam welding machines are usually driven by servo motors, which have the characteristics of small torque fluctuations and stable speed. The rotation of the workpiece is driven by the motor to rotate the electrode, which is driven by the frictional force between the electrode and the workpiece. The motion is smooth and the speed is adjustable.

2.Welding quality: The welding process and parameters are set by the system, ensuring stable welding quality, beautiful welds, high weld strength, and good sealing.

3. Insulation protection, safe and reliable: The secondary side circuit adopts a pressurized cylinder seat and upper arm insulation method, which facilitates direct installation and welding work on the lower seat without worrying about short circuits. It is simple and practical

4. Easy to operate: The device is easy and convenient to operate, and the fully automatic welding process can be achieved by setting parameters through the touch screen.

Technical Parameters:

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

General Structures:

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 0

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 1

Detailed Images:

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 2

Customized Fixtures and Moving Components: Adopting a cyclic transplanting mechanism can achieve fully automatic welding and improve welding efficiency.The device has high compatibility and can weld workpieces of different diameters and lengths.

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 3

Cylinder: Adopting aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring combination with hydraulic cylinder, the surface is wear-resistant and has a long service life, achieving extremely high dot speed, electrode pressurization, smooth and fast.

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 4

Gas Storage Tanks: The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 5

Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

Scene Images:

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 6

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 7

Application:

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 8

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 9

Automatic Welding Machine Piston Bore Shock Absorber Seam Welders For Steel 10

Related Products:

Projection Welding Machine For Shock Absorber: The shock absorber storage cylinder convex ring special machine is a specialized equipment developed for the forming process of automotive shock absorber storage cylinder convex rings. It adopts advanced hydraulic forming and precision control technology to achieve high-precision and high-efficiency processing of the storage cylinder convex ring parts. This device is designed specifically for the manufacturing of core components of automotive suspension systems, and can meet the requirements of convex ring forming for different specifications of oil storage cylinders.

Shock Absorber Welding Machine: Designed based on the workpiece with protrusions on the bracket and inner plate provided by the customer. The thickest plate thickness of the welding material is 4.5mm+2.5mm (with 5 welding protrusions on one side). This welding machine adopts pneumatic pressurization and vertical movement of the upper electrode. Each model has the characteristics of simple and compact structure, novel and beautiful appearance, stable performance, safe and reliable use, high efficiency and energy conservation.

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.

Company Profile:

Item/Model		DN-40	DN-63	D(T)N-80	D(T)N-100	D(T)N-125	D(T)N-160	D(T)N-200
Rated power At 50%	KVA	40	63	80	100	125	160	200
Rated primary power	V	380	380	380	380	380	380	380
Secondary Voltage	V	5.2	6.7	7.9	8.3	8.6	9.1	10.6
Rated frequency	HZ	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Max.Short Circuit Current	KA	14	15	16	18	20	28	34
Max. weld power	KVA	62	86	170	280	300	330	410
Throat	MM	500	500	630	630	630	630	630
Max.Froce at electrodes	N	6000	6000	10000	10000	10000	12000	12000
Working stroke	MM	20	20	30	40	40	50	50
Cooling Water Consumpion 2.5bar	L/min	6	6	8	8	8	10	10
Electrodes tlp	MM	Φ13*45	Φ13*45	Φ16*45	Φ16*45	Φ16*45	Φ20*45	Φ20*45
Arms	MM	Φ50*150	Φ50*150	Φ80*220	Φ80*220	Φ80*220	Φ80*220	Φ80*220
Projection Clamping Plate	MM	125*125	125*125	200*200	200*200	200*200	200*200	200*200
Max.Welding Capaciry A3 steel	MM	2.5+2.5	3+3	4+4	4.5+4.5	5+5	5+5	6+6

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700
