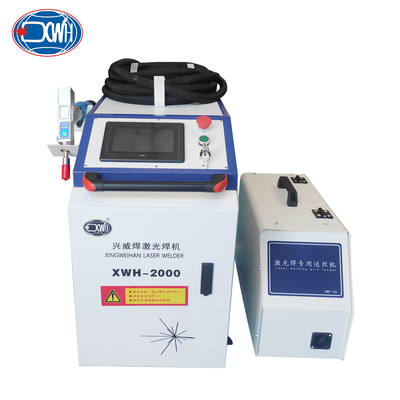

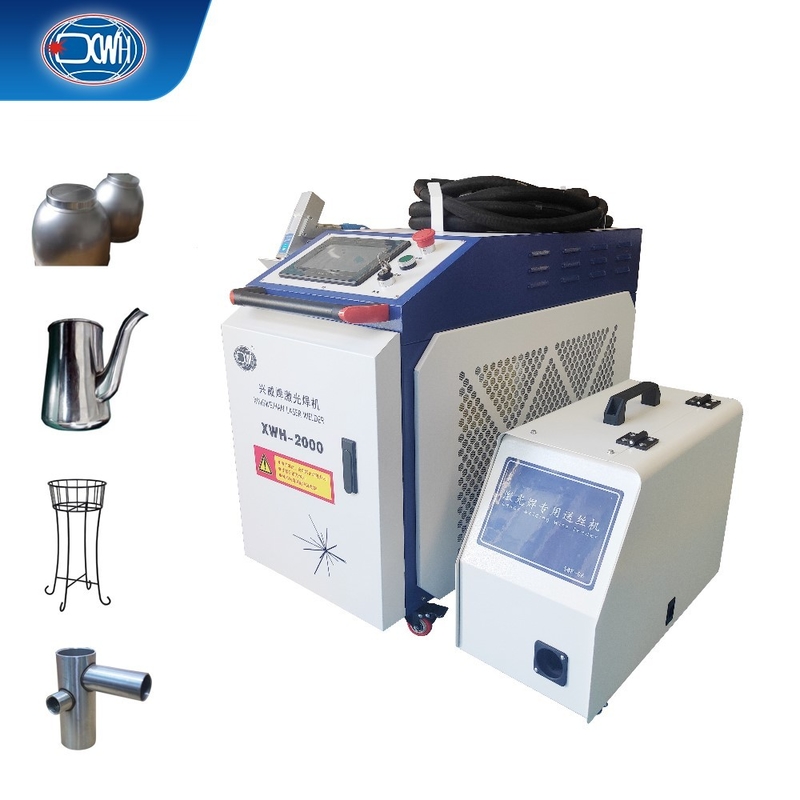

2000W Portable Fiber Laser Welder Rust Remover Cleaning Welding Machine 1500W

2000W Portable Fiber Laser Welder Rust Remover Cleaning Welding Machine 1500W

Brand Name:	Xingweihan
Model Number:	XWH-1500, XWH-2000, XWH-3000
MOQ:	1
Price:	USD2500-USD6000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, ISO

Product Name:

2000W Portable Fiber Laser Welder Rust Remover Cleaning Welding Machine 1500W

Application:

Portable Laser Welding Machine

Function:

Soldadora Laser

Machine Type:

Fiber Laser Welding Machine

Cooling Method:

Water Cooling

Welding Material:

Metal Aluminum Stainless Steel

Advantage:

High Speed Stability

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

2000W portable fiber laser welder

laser welding machine rust remover

1500W portable laser cleaning machine

Product Description

2000W Portable Fiber Laser Welder Rust Remover Cleaning Welding Machine 1500W

Product Introduction

The four-in-one handheld laser welding machine offers remarkable integration that saves valuable factory space and reduces equipment deployment costs. Its superior electro-optical conversion efficiency significantly outperforms traditional welding methods, reducing energy consumption and operational costs. With an extremely low learning threshold and excellent welding speed, it shortens production cycles, reduces reliance on skilled technicians, and lowers overall labor costs. The high one-time forming rate of weld quality minimizes rework and waste, directly increasing profits. This machine represents a modern production path that is more efficient, cost-effective, and delivers superior quality.

Key Features

Ergonomic lightweight design: Optimized internal structure reduces weight with a palm-fitting grip and anti-slip design for comfortable extended use.
Intuitive intelligent interface: High-definition OLED touchscreen with preset process parameters for quick professional operation.
WYSIWYG welding experience: High-brightness coaxial positioning red light for accurate welding path with smooth, flat welds requiring minimal post-processing.
Superior environmental adaptability: No professional certification needed, operates with brief training in various environments with no consumables.
Advanced safety features: Multiple protections including leakage, over-temperature, and anti-electric shock with nearly silent operation.

Technical Parameters

Name	Handheld laser welding machine
Model	XWH-1500 /XWH-2000 \| XWH-3000
Power Supply	220V + 10%, 50Hz; Rated current: < 14A \| 380V±5%, 50Hz, Rated current: ≤25A
Environmental Requirements	Temperature 5-40℃; Humidity 10-90%
Cooling Method	Water Cooling (dual temperature and dual control)
Output Power Instability	≤±2% (24-hour continuous operation)
Utilization Rate	≤99.5%
Laser Wavelength	1080nm
Optical Fiber	50um 10m
Beam Output	1 Beam
Modulation Frequency	20KHz
Dimensions	900430710mm
Weight	87kg

General Structures

Laser Welding Head & Laser Cleaning Head

Four-in-One Functionality

This handheld laser welding machine combines welding, cleaning, cutting, and weld cleaning functions for exceptional flexibility and efficiency in industrial applications:

1. Welding Function: Connects various metal materials with high energy density laser beams for precise, secure welds.
