products details

Home Products

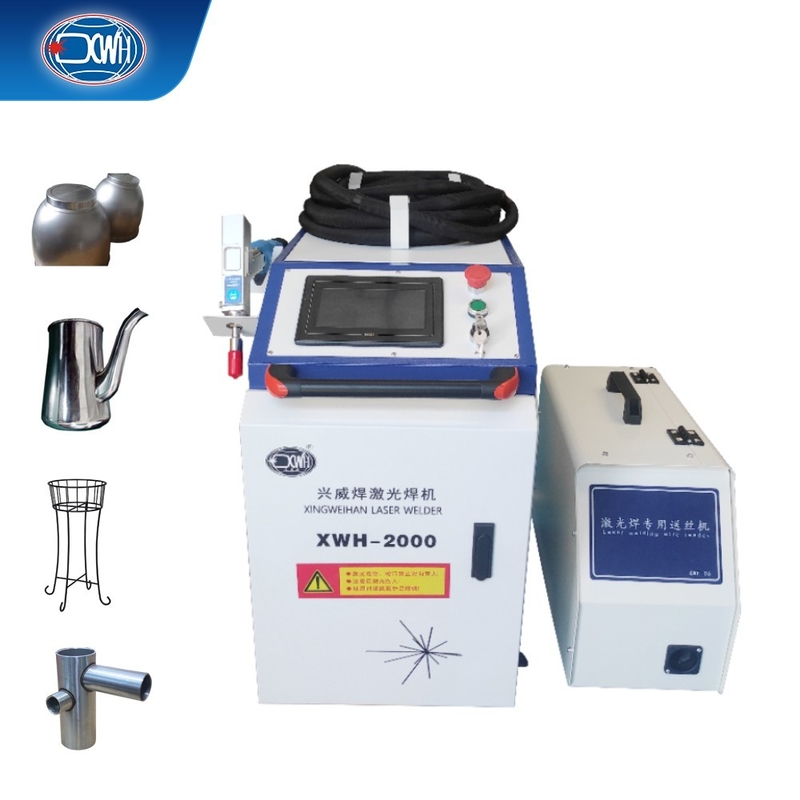

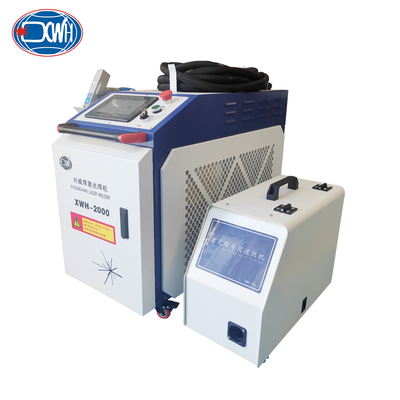

Fiber Water Cooled Portable Welding Laser Rust Removal Cleaner Welder Machine

Fiber Water Cooled Portable Welding Laser Rust Removal Cleaner Welder Machine

Brand Name:	Xingweihan
Model Number:	XWH-1500, XWH-2000, XWH-3000
MOQ:	1
Price:	USD2500-USD6000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, ISO

Product Name:

Fiber Water Cooled Portable Welding Laser Rust Removal Cleaner Welder Machine

Application:

Poste A Souder Laser

Function:

Máquina De Solda A Laser

Machine Type:

Laser Welder Machine

Cooling Method:

Water Cooling

Welding Material:

Carbon Steel Stainless Steel

Advantage:

High Welding Speed

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

fiber laser welding machine

water cooled laser welder

portable laser rust remover

Product Description

Fiber Water Cooled Portable Welding Laser Rust Removal Cleaner Welder Machine

Product Introduction

This handheld laser welding machine is an industrial masterpiece featuring ergonomic design with comfortable grip for long-term operation without fatigue. The precisely calculated center of gravity ensures stable and effortless handling. With its sleek metallic finish and professional aesthetic, it combines functionality with style. The intelligent OLED display provides clear parameter visualization and intuitive interaction. Every button and interface is carefully arranged, reflecting the perfect balance between form and function.

Key Features

Comprehensive safety protection: Five-layer intelligent protection system including over-temperature, over-current, under-voltage, anti-leakage, and anti-laser scattering with 24/7 monitoring and automatic fault warning.
Human eye safety design: Safety switch requires protective glasses and proper workpiece aiming before laser activation.
High-quality manufacturing: Industrial/military-grade components with extensive fatigue and environmental testing for reliability.
Durable construction: Dustproof and waterproof rating with impact-resistant metal shell.
Excellent after-sales support: Online fault diagnosis, remote technical support, and modular design for quick component replacement.

Technical Parameters

Name	Handheld laser welding machine
Model	XWH-1500 /XWH-2000 \| XWH-3000
Power Supply	220V + 10%, 50Hz; Rated current: < 14A \| 380V±5%, 50Hz, Rated current: ≤25A
Environmental Requirements	Temperature 5-40℃; Humidity 10-90%
Cooling Method	Water Cooling (dual temperature and dual control)
Output Power Instability	≤±2% (24-hour continuous operation)
Utilization Rate	≤99.5%
Laser Wavelength	1080nm
Optical Fiber	50um 10m
Beam Output	1 Beam
Modulation Frequency	20KHz
Dimensions	900430710mm
Weight	87kg

General Structures

Laser Welding Head vs Laser Cleaning Head

Multi-Functional Capabilities

This four-in-one handheld laser welding machine combines welding, cleaning, cutting, and weld cleaning functions for maximum flexibility in industrial applications:

1. Welding Function

Connects various metal materials with precise, secure welds using high-energy density laser beams.

2. Cleaning Function

Effectively removes welding residues to ensure joint cleanliness and improve weld quality.

3. Cutting Function

Enables precise material cutting, expanding the machine's application range beyond welding.

4. Weld Cleaning Function

Ensures weld cleanliness to improve joint strength and durability.

Application Scenes

Frequently Asked Questions

1. When can you arrange shipment?

Shipment is 15 days after receiving deposit (25+ days for customized machines).

2. Do you inspect the finished products?

Yes, each production step undergoes QC inspection before shipping.

3. Are you a factory?

Yes, we manufacture all machines and offer customization services.

4. How to purchase?

Send inquiry via email to receive a Proforma Invoice for payment.

5. How to contact you?

Via email or phone call.

6. Delivery method?

By air or sea freight.

7. Transport packing?

Extra-thickness cartons with protective PE foam and waterproof membrane (no damage history).

8. Payment methods?

T/T, Western Union, PayPal, L/C, D/A, etc.
