Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector

Brand Name:	Xingweihan
Model Number:	FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
MOQ:	1
Price:	USD12000-USD13000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, ISO

Product Name:

Roller Resistance Seam Welding Machine For Dishwasher Connector

Application:

Braided Water Connectors Welding

Function:

Seam Welding Machine Manufacturer In China

Machine Type:

Machine Weld Seam

Keyword:

Machine Seam Welding

Welding Material:

Stainless Steel Carbon Steel Metal

Type:

Circular Welding Machine

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Product Description

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector

Product Introduction:

This ring seam welding machine is a professional choice for pursuing welding quality, designed specifically for handling demanding stainless steel corrugated pipes and braided water connections. Through advanced frequency conversion control technology combined with a precise automatic rotating workpiece system, precise management of welding heat input and uniform formation of welds have been achieved, effectively avoiding defects such as burn through or incomplete penetration. Automated welding ensures that every product, from the faucet to the ice maker pipeline, can obtain a strong, sealed, and durable high-quality weld seam.

Features:

1.Heavy duty body stable and durable: With a solid weight of over one ton and sturdy structure, it effectively suppresses vibration during welding, ensures long-term high-precision stable operation, and extends equipment life.

2. Uniform and stable automatic rotation welding: The equipment achieves automatic and uniform rotation of the workpiece, and is used in conjunction with a fixed welding wheel for welding. This process ensures that the solder joints can uniformly and continuously cover the entire annular interface, forming a 360 ° smooth and consistent weld seam. Not only does it have a beautiful appearance, but its internal penetration is also uniform and reliable, greatly improving the long-term durability and safety of water connectors under high pressure conditions.

3. Special clamping scheme for corrugated pipe structure: A dedicated clamping device has been designed for the unique peak valley structure of flexible corrugated stainless steel pipes. It can stably and non destructively hold the corrugated pipe, effectively preventing it from slipping or shifting during the rotary welding process, ensuring precise alignment of the welding position. This is a key prerequisite for obtaining high-quality circumferential seams, highlighting the professionalism and high adaptability of the equipment.

Technical Parameters:

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

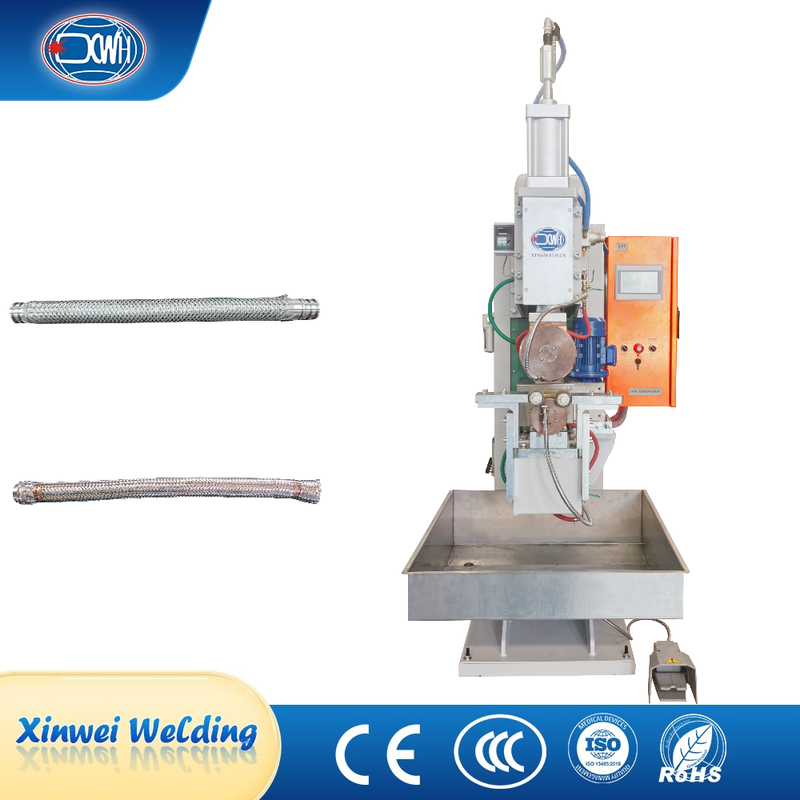

General Structures:

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 0

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 1

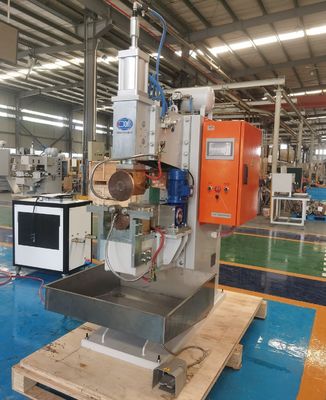

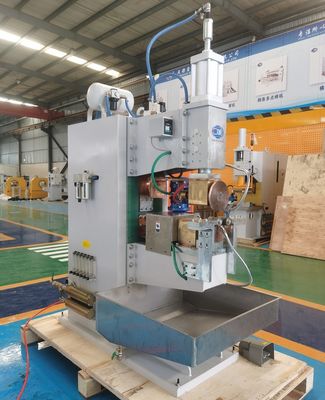

Detailed Images:

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 2

This system streamlines production by automating the entire welding process: clamping, rotation, and welding. Operators are only required for loading and unloading, which ensures high throughput and consistent output quality.

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 3

Integrated Cooling Solution: The external water storage tank seamlessly connects with the welding process, facilitating immediate cooling of the workpiece after welding, optimizing the production process, and improving overall operational efficiency.

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 4

Gas Storage Tanks: The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 5

Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

Scene Images:

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 6

Application:

Before Welding:

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 7

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 8

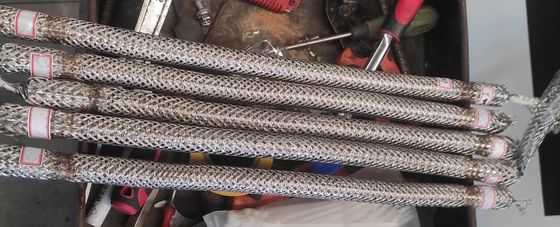

After Welding:

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 9

Stainless Steel Roller Resistance Seam Welding Machine For Dishwasher Connector 10

Multi Types of Seam Welders:

Horizontal Automatic Seam Welding Machine: The seam welder is mainly designed for welding shock absorbers or piston cylinder tubes. It is an automatic welding equipment used for welding circular and annular welds, widely used for welding various metal materials with sealing requirements, including stainless steel, low-alloy steel, aluminum, iron, and other alloys. It mainly completes welding by rotating the electrode to drive the workpiece to rotate.

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.

Company Profile:

Item/Model		DN-40	DN-63	D(T)N-80	D(T)N-100	D(T)N-125	D(T)N-160	D(T)N-200
Rated power At 50%	KVA	40	63	80	100	125	160	200
Rated primary power	V	380	380	380	380	380	380	380
Secondary Voltage	V	5.2	6.7	7.9	8.3	8.6	9.1	10.6
Rated frequency	HZ	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Max.Short Circuit Current	KA	14	15	16	18	20	28	34
Max. weld power	KVA	62	86	170	280	300	330	410
Throat	MM	500	500	630	630	630	630	630
Max.Froce at electrodes	N	6000	6000	10000	10000	10000	12000	12000
Working stroke	MM	20	20	30	40	40	50	50
Cooling Water Consumpion 2.5bar	L/min	6	6	8	8	8	10	10
Electrodes tlp	MM	Φ13*45	Φ13*45	Φ16*45	Φ16*45	Φ16*45	Φ20*45	Φ20*45
Arms	MM	Φ50*150	Φ50*150	Φ80*220	Φ80*220	Φ80*220	Φ80*220	Φ80*220
Projection Clamping Plate	MM	125*125	125*125	200*200	200*200	200*200	200*200	200*200
Max.Welding Capaciry A3 steel	MM	2.5+2.5	3+3	4+4	4.5+4.5	5+5	5+5	6+6

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700
