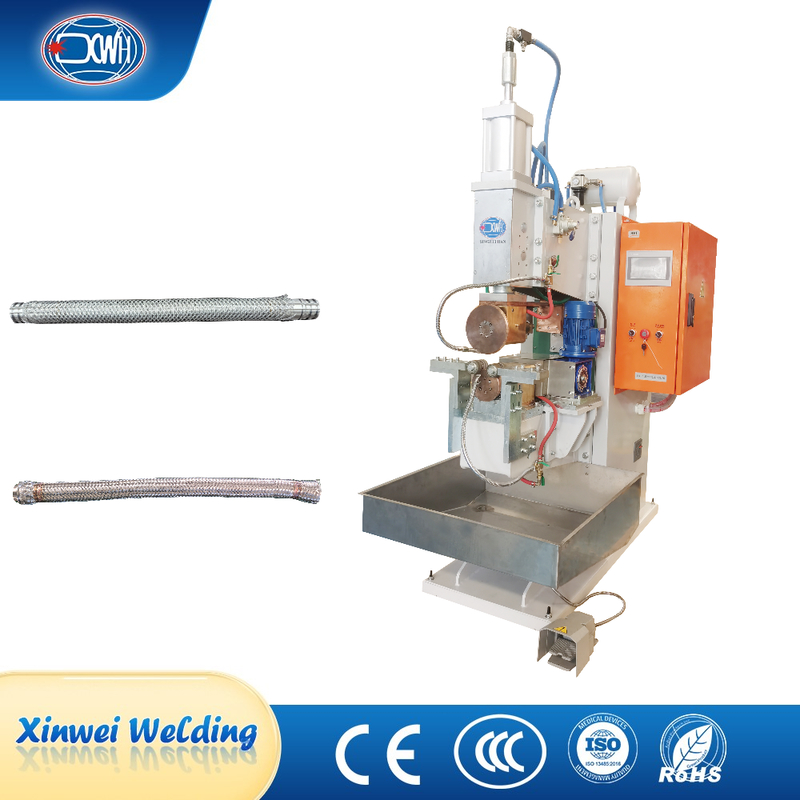

Ice Maker Connector Circumference Roller Seam Welder Welding Equipment
Brand Name:
Xingweihan
Model Number:
FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
Place of Origin:
China
Certification:
CE, RoHS, ISO
Minimum Order Quantity:
1
Price:
USD12000-USD13000
Supply Ability:
50 sets/month
Delivery Time:
30 working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
ice maker seam welder machine
,circumference roller welding equipment
,seam welder for connector welding
Product Name:
Ice Maker Connector Circumference Roller Seam Welder Welding Equipment
Application:
Braided Water Connectors Welding
Function:
Side Seam Welding Machine
Machine Type:
Semi-Automatic Seam Welding Machine
Keyword:
Seam Welding Machine Seam Welders
Welding Material:
Carbon Steel Stainless Steel Aluminum
Type:
Seam Welding Machine Manufacturers
Warranty:
12 Months Guarantee
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Product Description
Circular Continuous Roller Resistance Welder Seam Welding For Faucet Connector
Product Introduction:
This ring seam welding machine provides a complete and safe process solution from clamping, welding to cooling. The equipment automatically executes the most technically advanced rotary welding process, ensuring the accuracy and repeatability of the process; And manual labor is responsible for safe loading and unloading, as well as post weld cooling, fully reflecting the safety design concept of human-machine cooperation. This division of labor not only ensures the safety of operators, but also ensures that the equipment can output high-quality products stably for a long time, especially suitable for manufacturing environments that focus on production safety and process reliability.
Features:
1. Precision rotary welding: The automatic rotation mechanism ensures that the welding gun is fixed and the workpiece rotates evenly, thereby obtaining a perfect circular seam with 360 ° no dead corners, beautiful forming, and excellent sealing.
2. Optimization production mode of human-machine collaboration: The equipment adopts a collaborative production mode of "manual feeding, automatic welding, manual material extraction and cooling". This design entrusts the highly repetitive and precise welding core process to machine automation, while leaving the loading and unloading process that needs to be judged to humans, fully leveraging the respective advantages of humans and machines. While ensuring quality consistency, it achieves efficient and smooth assembly line operations.
3. Instant water cooling to optimize material performance: After welding is completed, the workpiece can be immediately placed in an external water storage tank for rapid cooling. This process not only improves the production cycle, but more importantly, for stainless steel materials, rapid cooling helps them quickly pass through the sensitization temperature zone, reduce carbide precipitation, and better maintain the corrosion resistance of the weld area, thereby extending the overall service life of the product.
Technical Parameters:
|
Model Item |
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input |
V
|
380
|
380
|
380
|
380 |
380
|
|
Frequency |
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current |
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency |
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force |
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity |
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption |
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|

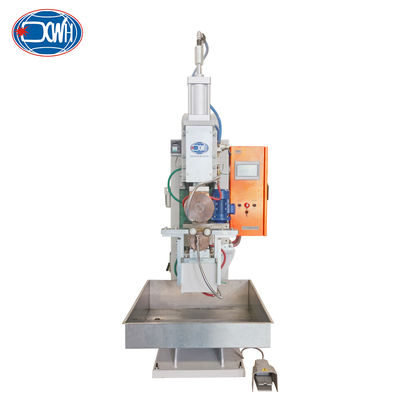

General Structures:

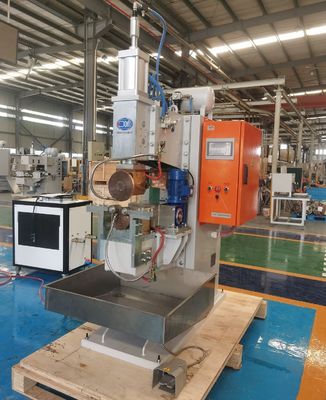

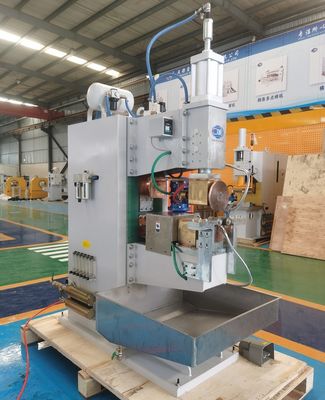

Detailed Images:
Efficient automation process: The equipment orchestrates a seamless workflow where clamping, rotating, and welding are executed automatically in a pre-programmed sequence. This division of labor, where human workers manage only part loading and unloading, guarantees exceptional process repeatability and elevated production efficiency.
Integrated Cooling Solution: The external water storage tank seamlessly connects with the welding process, facilitating immediate cooling of the workpiece after welding, optimizing the production process, and improving overall operational efficiency.
Gas Storage Tanks: The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.
Scene Images:
Application:
Before Welding:

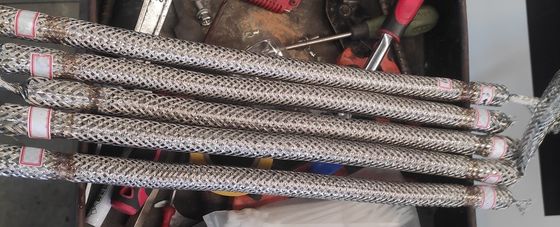

After Welding:
Multi Types of Seam Welders:
Horizontal Automatic Seam Welding Machine: The seam welder is mainly designed for welding shock absorbers or piston cylinder tubes. It is an automatic welding equipment used for welding circular and annular welds, widely used for welding various metal materials with sealing requirements, including stainless steel, low-alloy steel, aluminum, iron, and other alloys. It mainly completes welding by rotating the electrode to drive the workpiece to rotate.
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
