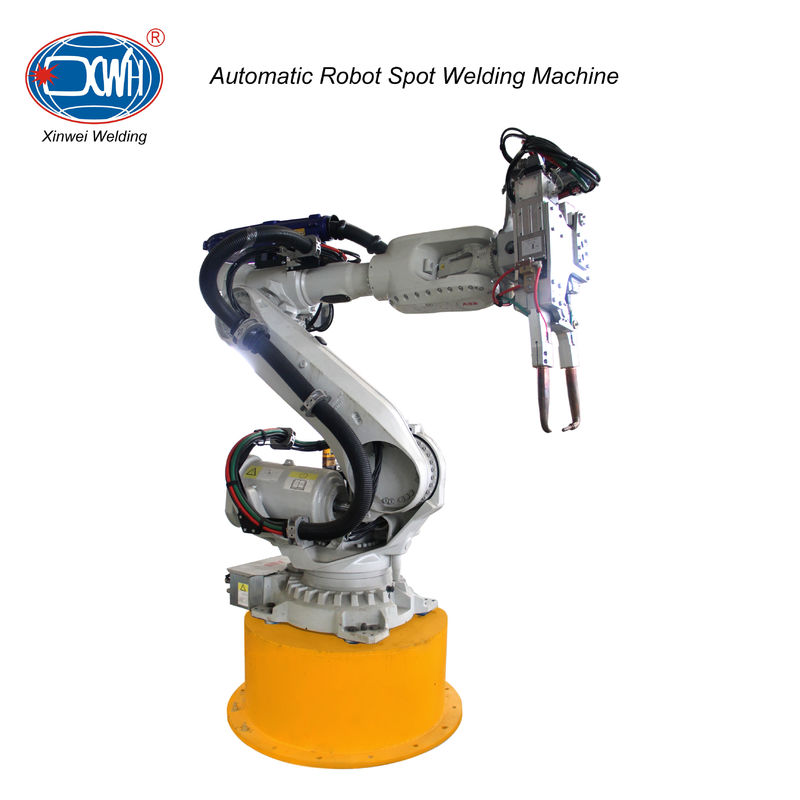

4500N Spot Welder Welding Gun

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DB3
Minimum Order Quantity: 1
Price: USD、RMB
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Core Components: High Frequency And High Power Robot Electric DC Spot Welding Gun Function: Resistance Welding
Throat: Customized Weight: 60~120Kg
Max. Welding Thickness: 6mm+6mm MOQ: 1
Voltage: 380V/220V Power: 160KVA
High Light:

160KVA spot welder welding gun

,

4500N spot welder welding gun

,

electric DC spot welding guns


Product Description

High frequency and high power robot electric DC spot welding guns


Product


The robot welding gun body, which has obtained multiple appearance patents, is processed by aerospace aluminum, which has good rigidity, high strength, and small deformation, which plays a very good role in improving the welding quality.

The communication between the welding host and the robot adopts the DEVICENET protocol, and a personalized communication module can also be configured according to user requirements.

Model
Items
Unit
DB3-100
DB3-160
Tranformer's Rated Capacity
KVA
100
160
Primary Power

500V 1000Hz
500V 1000Hz
Max Shortcut Current
KA
1.6
2.2
Max Gun Mouth Current's Open
mm
150
250
Max Electrode Pressure
N
4000N
4500
Flowrate of Cooling Water
L/min
15
15
Arm Material

CuCrZr
CuCrZr
Connecting Way Robot

Up,Down,Left,Right,Backward
Up,Down,Left,Right,Backward
Servo Motor

KUKA,ABB,
KUKA,ABB,
welding thickness

0.8+0.8,1.2+1.2,1.5+1.8
0.8+0.8,1.2+1.2,2+2,2.5+2.5
4500N Spot Welder Welding Gun 0
4500N Spot Welder Welding Gun 1
4500N Spot Welder Welding Gun 2
4500N Spot Welder Welding Gun 3
4500N Spot Welder Welding Gun 4
4500N Spot Welder Welding Gun 5
Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.
4500N Spot Welder Welding Gun 6
Wooden case is non-fumigation, more convenient for transport

Company Information
4500N Spot Welder Welding Gun 7
4500N Spot Welder Welding Gun 8
4500N Spot Welder Welding Gun 9
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in
