Resistance Inverter 50Hz 160KVA Suspension Spot Welding Machine For Stainless Steel

Resistance Inverter 50Hz 160KVA Suspension Spot Welding Machine For Stainless Steel

Brand Name:	XWH
Model Number:	DN3
MOQ:	1
Price:	USD4000-USD5000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

160KVA Suspension Spot Welding Machine

Application:

Automotive Industry

Function:

Sheet Metal Spot Welding

Input Voltage:

380V50Hz

Related Industry:

Stainless Steel Product

Control System:

Microcomputer

Warranty:

1 Year

Keyword:

Suspension Spot Welding Machine

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

1000 sets/month

Highlight:

160KVA portable spot welding machine

50Hz portable spot welding machine

50Hz stainless steel spot welding machine

Product Description

Resistance Inverter 50Hz 160KVA Portable Spot Welding Machine For Stainless Steel

Product Introduction:

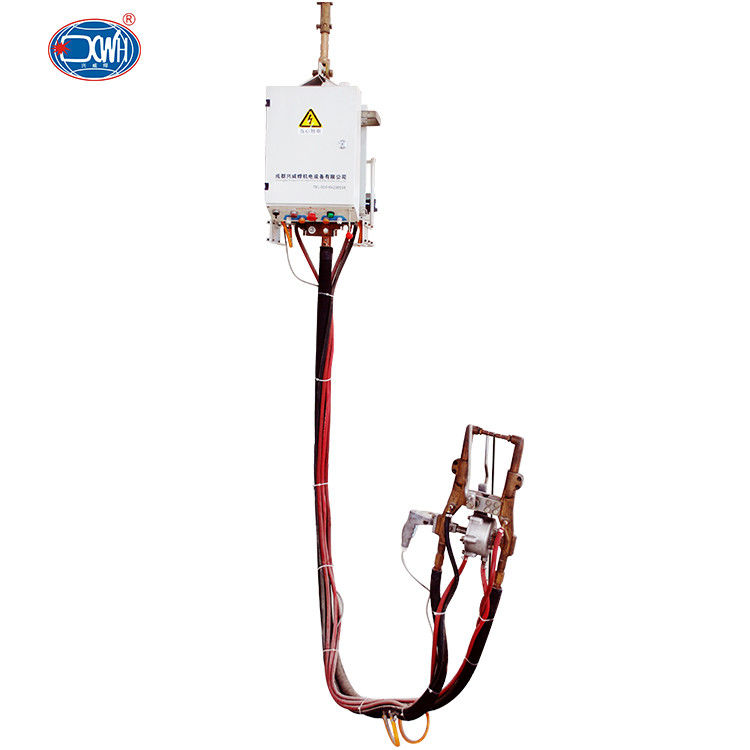

Suspension spot welding machine is a resistance welding equipment designed to separate the welding transformer from the welding gun. It is connected through high-voltage cables to achieve physical separation of energy transmission and welding operations. Its modular structure is suitable for high-frequency and high-intensity continuous welding operations, especially for industries such as automobile manufacturing and home appliance production.

Features:

1. The controller can control two welding tongs

2. Due to the small size, light weight, the lightest 9-15kg, the workers are easy to operate

3. Derived from the technology of the former Soviet Union in the 1950s, the technology is mature and stable

4. Maximum welding thickness is 5+5mm

5. The host is not easy to damage (10-year warranty)

Technical Parameters:

Models Item	unit	DN3-160	DN3-200
Rated power	KVA	160	200
Rated input current	A	400	475
Rated duty cycle	%	50
Rated input voltage	V	380
Power supply frequency	Hz	50/60
Secondary unload voltage	V	21.7-19	24.5-21.7
Max input capacity	KVA	315	383
Max output capacity	A	14800	16200
Insulating grade		F
Cooling water consumption 2.5bar	L/min	14	16
Pressure of cool water	Mpa	0.15-0.3Mpa
Pressure of compressed air	Mpa	0.5-0.6Mpa
Insulating resistance		500VDC=500M
Dielectric intensity		2500V,60S(primary-secondary)
weight	Kg	170	180

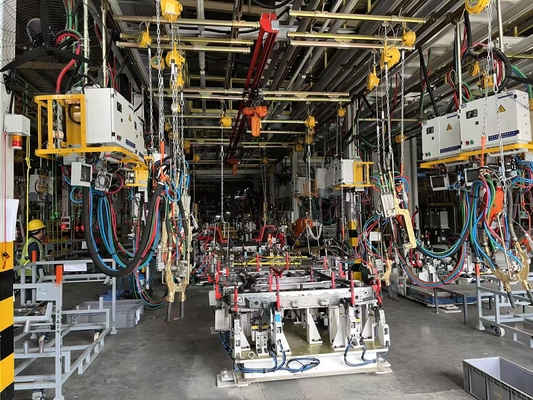

Scene Images:

Resistance Inverter 50Hz 160KVA Suspension Spot Welding Machine For Stainless Steel 0

Package Image:

Resistance Inverter 50Hz 160KVA Suspension Spot Welding Machine For Stainless Steel 1

Wooden case is non-fumigation, more convenient for transport.

Application:

Resistance Inverter 50Hz 160KVA Suspension Spot Welding Machine For Stainless Steel 2

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
