Product Name: | Handheld Automotive Spot Machine Manual Spot Welding | Power: | Customized |
---|---|---|---|
Warranty: | 1 Year | Rated Capacity: | 100--200KVA |
Voltage: | 380v | Frequency: | 50HZ/60HZ |
Weight: | 130--180KGS | Welding Area: | Spot Area |
High Light: | handheld manual spot welding machine,280A manual spot welding machine,280A automotive spot welding machine |

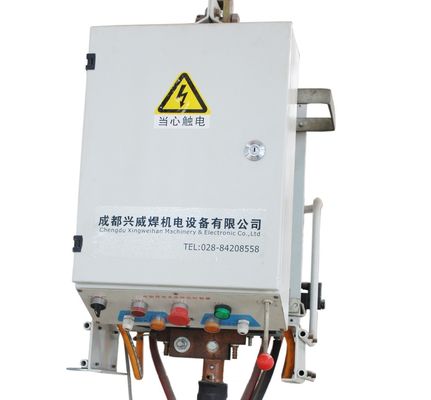

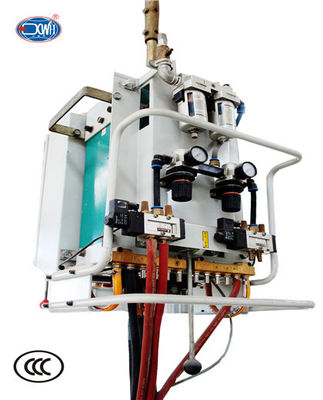

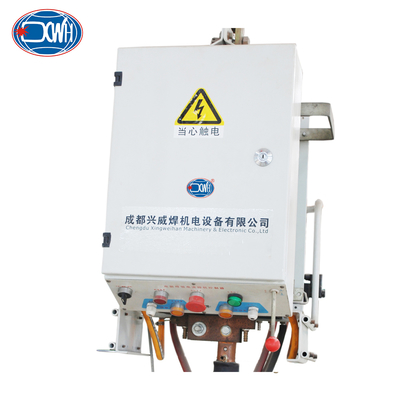

Handheld Automotive Spot Machine Manual Spot Welding
Features:
Item No | DN3-100 | DN3-125 | DN3-160 | DN3-200 |
Rated Power (KVA) | 100 | 125 | 160 | 200 |
Rated Input Current (A) | 280 | 330 | 400 | 475 |
Rated Duty Cycle (%) | 50 | |||
Rated Input Voltage (V) | 380 | |||
Power Supply Frequency (Hz) | 50/60 | |||
Secondary Unload Voltage (V) | 18-16.5 | 20-18 | 21.7-19 | 24.5-21.7 |
Max Input Capacity (KVA) | 232 | 278 | 315 | 383 |
Max Output Current (A) | 12000 | 14000 | 14800 | 16200 |
Insulating Grade | F | |||
Cooling WaterCconsumption 2.5bar(L/min) | 12 | 12 | 14 | 16 |
Pressure of Cool Water | 0.15-0.3 Mpa | |||
Pressure of Compressed Air | 0.5-0.6 Mpa | |||
Insulating resistance | 500 VDC=500M | |||
Dielectric Intensity | 2500, 60s(Primary-secondary) | |||
Weight (kg) | 130 | 145 | 170 | 180 |
Main Characteristics:
1. the high-quality steel sheet of silicon and epoxy resin of vacuum are used in the welding transformer.small,high insulating degree,low noise and reliable.
2. the welder have two kinds :transformer and controller separately two parts;one part of transformer and contrlloer.
3. users can be choose to join single rifle or one pair of rifles and have auxiliary to control according to the needs of craft.
4. voltage transformer two and can receive ordinary form root cable,can connect having the sense cable.
5. with high capacity and efficiency voltage transformer volume small and exquisite,energy-conservation,import.
