| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | XW |
| Minimum Order Quantity: | 1 |
| Price: | $300.00 - $800.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Month |

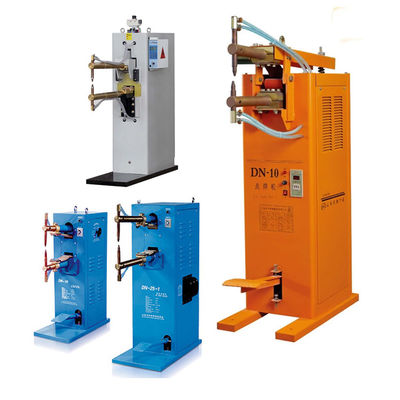

| Product Name: | Welding Table Mold Machine Multi Repair Multifunction Manual Spot Welding Machine | Frequency: | 50HZ/60HZ |
|---|---|---|---|
| Dimensions: | DN 10/16/25/35 | Welding Time: | 0.1-1S |
| Lead Time: | 3-5days | COLOR: | Customized |
| Machinery Test Repo: | Provided | Welding Curren: | 200-13000A |
| High Light: | DN 10 manual spot welding machine,260mm manual spot welding machine,DN 10 foot operated spot welder |
||
|
Product Welding Video
|
We provide technical guidance videos, product welding videos, and samples please contact us.
|
|||
|
Overseas on-site technical team
|
South America, Southeast Asia,etc
|
|||
|
One-stop service
|
MIG / TIG / Spot welding machine / Seam welding machine / Welding robot / Suspended Transmission System / Controller / Spring Balancer / Electrode
|
|||
|
Models
Item
|
DN-35
|
DN-25
|
DN-16
|
DN-10
|
|
Rated Power at 50%
|
35KVA
|
25KVA
|
16KVA
|
10KVA
|
|
Rated Primary Power
|
380V
|
380V
|
380V
|
380V
|
|
Rated Primary Current
|
92A
|
66A
|
42.1A
|
26.3A
|
|
Rated Duty Cycle
|
10%
|
10%
|
10%
|
10%
|
|
Secondary Unload Voltage
|
2.6～4.2V
|
2.3～3.55V
|
1.98～3.01V
|
1.65～2.4V
|
|
Adjustment Rated
|
4
|
4
|
4
|
4
|
|
Welding Time Adjustment
|
0～9.99s
|
0～9.99s
|
0～9.99s
|
0～9.99s
|
|
Arms Length
|
280mm
|
280mm
|
280mm
|
260mm
|
|
Max. Welding Capacity
|
3.5+3.5mm
|
2.5+2.5mm
|
2+2mm
|
1.5+1.5mm
|
|
Cooling Ways
|
Main Transformer: Air
Electrode: Water
|
|||
|
Features
|
1) The main transformer is made of imported cold-rolled silicon steel, less power loss and low no-load current.

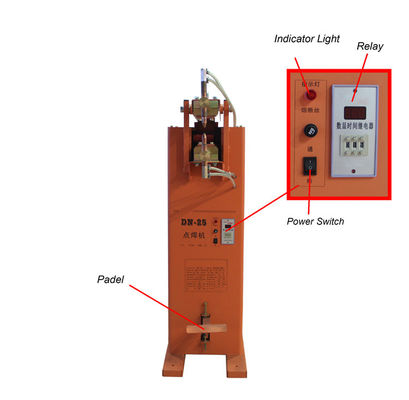

2) Pivoting arm, pedal, spring press structure, easy to operate, The structure in graceful form, durable and cheap. 3) In main circuit adopts thyristors as non-contactor switch, quick switch off and reliable. Welding time can be controlled and adjusted precisely, good welding repeatability, easy to maintenance, can realize high quality weld. 4) Adopt the digital control system; it is widely used in mild steel, wire, stainless steel plate and so on.
|
|||
