Multi Head Spot Welding Machine
Created with Pixso.

Dc 15mm Multi Head Point Spot Welding Machine , ISO Resistance Spot Welder

Dc 15mm Multi Head Point Spot Welding Machine , ISO Resistance Spot Welder

Brand Name: XWH
Model Number: DNB
MOQ: 1
Price: USD13000-USD20000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Double Point Type Special Resistance Spot Welder
Machine Type:
Resistance Welding
Core Components::
Engine, Motor, Transformer
Voltage:
220V/380V/415V/440V
Frequency:
50HZ/60HZ
Welding Area:
1-18mm
Rated Duty Cycle:
50%
Weight:
500kg
Packaging Details:
Wooden Case
Supply Ability:
30 sets/month
Highlight:

15mm multi spot welding machine

,

ISO multi spot welding machine

,

ISO resistance spot welder

Product Description

15mm Multi Spot Welding Machine , ISO Resistance Spot Welder





Product Introduction:



The design of the multi head spot welding machine is based on the customized design of the buyer's trunking components, with the workpiece manually fed and automatically positioned without clamping. Automatic welding of all welding points in one clamping process (8 points welded simultaneously, adjustable specifications). So after the solder joint is completed, the mobile platform continues to advance into the next working cycle. The entire process is fully automatic control, with automatic monitoring and alarm, and automatic shutdown for faults. High production efficiency, with a production rhythm of approximately 1.5-2.5 seconds for 25 steps, taht is 50 seconds per workpiece.







Features:



1. Accurate microcomputer control: The microcomputer inside the welding machine scans the input voltage in high numbers for a long time. As soon as the power supply fluctuates, it immediately calculates the compensation data and changes the welding energy, so that welding does not have false welding or explosion due to unstable voltage. It is more suitable for use under unstable voltage, and can ensure even welding effect each time.



2. Stable current output: Due to the use of microcomputer microcontroller control, the current regulation is refined to ensure stable output current, and the welding discharge time control is precise and unrestricted.



3. Simplified operation settings: All parameters are computerized, using LCD liquid crystal display and keyboard adjustment, accurate, intuitive, and convenient.



4. Easy to adjust and use: The spacing between welding needles and the pressure of welding needles are independently adjustable, suitable for the welding of fine components, with accurate alignment and high yield.







Technical Parameters:



Models/Item DN(B)-100 D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 100 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 30 40 40 45
Max. force (N) 6000 6000 10000 15000
Electrode length(MM) 450 450 450 500
Working stroke(MM) 80 80 80 80
Cooling consumption(L/min) 20 20 20 20
Max.welding capacity(MM) 3.0+3.0 4.0+4.0 5.0+5.0 6.0+6.0

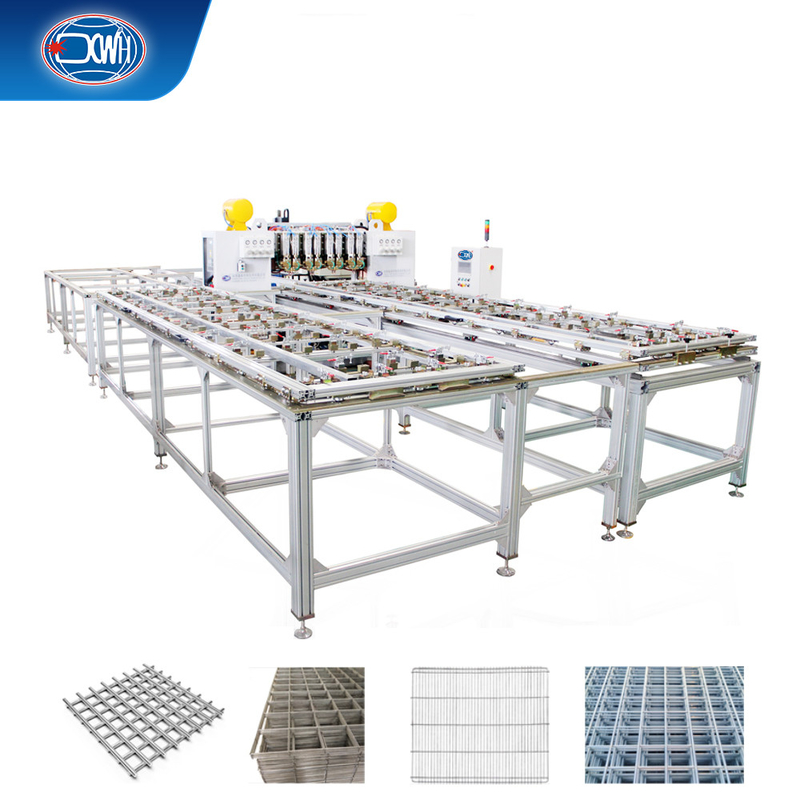

General Structures:



Dc 15mm Multi Head Point Spot Welding Machine , ISO Resistance Spot Welder 0

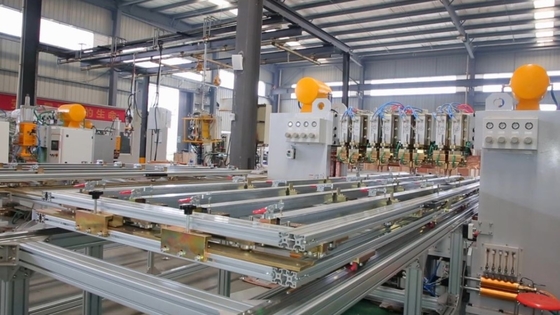

Production Line:



Dc 15mm Multi Head Point Spot Welding Machine , ISO Resistance Spot Welder 1







Application:



Dc 15mm Multi Head Point Spot Welding Machine , ISO Resistance Spot Welder 2





FAQ:



1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.




8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
