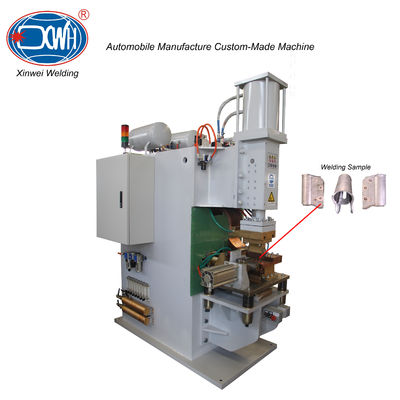

Projection 50HZ Multi Point Spot Welding Machine For Car Body

Projection 50HZ Multi Point Spot Welding Machine For Car Body

Brand Name:	XWH
Model Number:	DNB
MOQ:	1
Price:	USD2000-USD100000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Stainless Steel Car Automatic Multi-point Spot Welding Machine

Machine Type:

Resistance Welding

Core Components::

Engine, Motor, Transformer

Voltage:

220V/380V

Frequency:

50HZ/60HZ

Welding Area:

1-18mm

Rated Duty Cycle:

50%

Weight:

500kg

Packaging Details:

Wooden Case

Supply Ability:

30 sets/month

Highlight:

50HZ multi point spot welding machine

projection multi point spot welding machine

50HZ car body spot welder

Product Description

stainless steel car automatic multi-point spot welding machine

Details

Welding Stroke	50mm-140mm
Color	customized
Machine type	Resistance Welding Machine
Function	Spot welding
Frequency	50HZ/60HZ
MOQ	1 Set
Feature	projection spot welding
Throat	customized
Max. force at electrodes	3500N

When the two electrodes are pressed into the workpiece, the two metal layers form a certain contact resistance of the spot welder under the pressure of the two electrodes. When the welding current flows from one electrode to the other electrode, the two contact resistance points form an instant thermal fusion, and the welding current flows from the other electrode to the two workpieces, forming a circuit instantly without causing damage to the two electrodes. The internal structure of the welding workpiece.

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our main product:

1. Resistance C Type Crank Arm Table Spot Welding Machine

2. Portable MF Spot Welder

3. Suspension Spot Welding Machine

4. Stationary Resistance SpotWelding Machine

5. Robotic Welding Gun

6. Nut Feeder

7. Micro-computer resistance controller,etc
