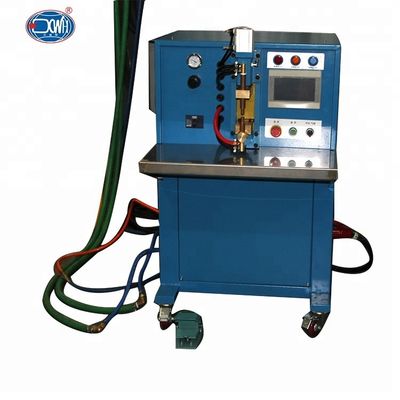

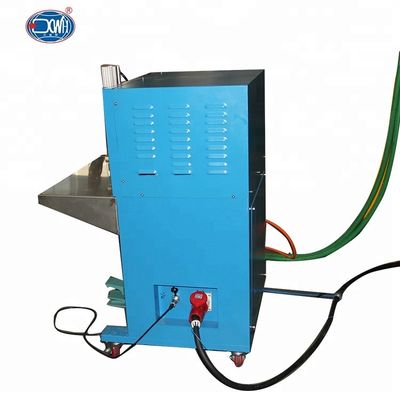

35KVA Point Welding Machine 1000N Resistance Welding Equipment
Brand Name:
XWH
Model Number:
DNB
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1
Price:
$1,000.00 - $3,000.00
Supply Ability:
150 sets/month
Delivery Time:
15 working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
35KVA point welding machine
,1000N point welding machine
,1000N resistance welding equipment
Product Name:
Double Head Capacitor Energy Storage Electric Resistance Spot Point Welding Machine
Voltage:
380V/220V
Core Components::
Engine, Motor, Transformer
Table:
Customized
Frequency:
50HZ/60HZ
Rated Capacity:
25/35/50 KVA
Rated Duty Cycle:
50%
Weight:
500KG
Product Description
Double Head Capacitor Energy Storage Electric Resistance Spot Point Welding Machine
Details
FEATURES:
| Parameter/Model No | Input Voltage | Welding Power | Capacitance | Energy Storage | Welding Arm Length | Electrode Travel | Electrode Pressure | Total Weight |
| DR-2KVA | 220V | 2KVA | 4500μF | 500J | 120MM | 50MM | 1000N | 280KG |
| DR-3KVA | 220V | 3KVA | 13500μF | 1500J | 380MM | 60MM | 2500N | 460KG |
| DR-5KVA | 220V/380V | 5KVA | 27000μF | 3000J | 380MM | 60MM | 3900N | 700KG |
| DR-7KVA | 220V/380V | 7KVA | 47000μF | 4500J | 380MM | 60MM | 3900N | 850KG |
| DR-10KVA | 220V/380V | 10KVA | 79000μF | 8000J | 380MM | 60MM | 6280N | 1000KG |
| DR-12KVA | 220V/380V | 12KVA | 98000μF | 10000J | 380MM | 60MM | 6280N | 1200KG |
| DR-16KVA | 220V/380V | 16KVA | 12000μF | 12000J | 380MM | 60MM | 12000N | 1500KG |
ADVANTAGES:
1. Quick energy release for welding highly conductive metals such as aluminum, copper, etc.
2. Small heat affected weld zones, beautiful welding quality, mainly used for welding various stainless steel products.
3. Adopted Japanese original capacitor, repeatable energy release independent of line voltage fluctuations, save more than 90% energy, widely used for all kinds of industrial projection welding, especially for multi-spot projection welding. Such as auto filter, Clutch, etc.
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our main product:
Our main product:
1. Resistance C Type Crank Arm Table Spot Welding Machine
2. Portable MF Spot Welder
3. Suspension Spot Welding Machine
4. Stationary Resistance SpotWelding Machine
5. Robotic Welding Gun
6. Nut Feeder
7. Micro-computer resistance controller,etc
Certifications
Exhibition
Service
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining spot welding machines and so on..
Our engineers will train customer how to operate, repair and maintaining spot welding machines and so on..
Transportation Display
