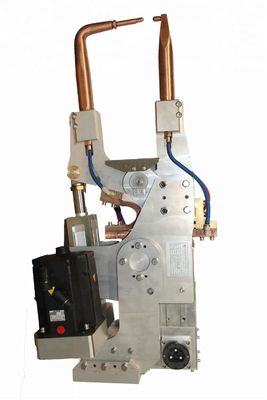

Aluminum 4000N Robotic Spot Welding Gun ISO Certification

Aluminum 4000N Robotic Spot Welding Gun ISO Certification
Aluminum 4000N Robotic Spot Welding Gun ISO Certification
Aluminum 4000N Robotic Spot Welding Gun ISO Certification
Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DB3
Minimum Order Quantity: 1
Price: USD、RMB
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Get Best Price Contact Now
Detail Information
Core Components: Robot Aluminum Spot Welding Machine Welding Gun Function: Spot Welding
Throat: Customized Weight: 60~120Kg
Max. Welding Thickness: 6mm+6mm MOQ: 1
Voltage: 280V Power: 160KVA
Highlight:

ISO robotic spot welding gun

,

4000N robotic spot welding gun

Product Description

Robot Aluminum Spot Welding Machine Welding Gun
Product

1. Save labor cost (1 machine = 3-5 people), improve labor productivity, improve labor intensity of workers, can work in
harmful environment for 24h

2. High welding precision, high quality, current can be automatically switched at any time, welding thickness 0.1mm-5mm

3. Welding pressure can be set and driven by servo motor

4. Can match any kind of robot

5. Welding arm: aviation aluminum

6. One robot can control multiple welding guns (3 sets)

7. Can store 32 welding specifications. The pressure can be adjusted. Reducing impact deformation and noise

8. Can weld high-strength plate, aluminum, galvanized metal and other materials, good welding effect

Model
Items
Unit
DB3-100
DB3-160
Tranformer's Rated Capacity
KVA
100
160
Primary Power

500V 1000Hz
500V 1000Hz
Max Shortcut Current
KA
1.6
2.2
Max Gun Mouth Current's Open
mm
150
250
Max Electrode Pressure
N
4000N
4500
Flowrate of Cooling Water
L/min
15
15
Arm Material

CuCrZr
CuCrZr
Connecting Way Robot

Up,Down,Left,Right,Backward
Up,Down,Left,Right,Backward
Servo Motor

KUKA,ABB,台达等品牌
KUKA,ABB,台达等品牌
welding thickness

0.8+0.8,1.2+1.2,1.5+1.8
0.8+0.8,1.2+1.2,2+2,2.5+2.5
Aluminum 4000N Robotic Spot Welding Gun ISO Certification 0
Aluminum 4000N Robotic Spot Welding Gun ISO Certification 1
Aluminum 4000N Robotic Spot Welding Gun ISO Certification 2
Aluminum 4000N Robotic Spot Welding Gun ISO Certification 3
Aluminum 4000N Robotic Spot Welding Gun ISO Certification 4
Aluminum 4000N Robotic Spot Welding Gun ISO Certification 5
Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.
Aluminum 4000N Robotic Spot Welding Gun ISO Certification 6
Wooden case is non-fumigation, more convenient for transport

Company Information
Aluminum 4000N Robotic Spot Welding Gun ISO Certification 7
Aluminum 4000N Robotic Spot Welding Gun ISO Certification 8
Aluminum 4000N Robotic Spot Welding Gun ISO Certification 9
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in
