Robotic Spot Welding Gun
Created with Pixso.

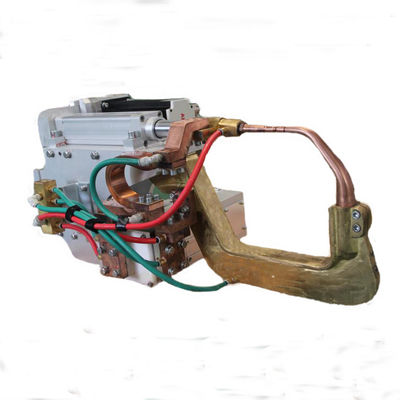

Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun

Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun

Brand Name: XWH
Model Number: DB3
MOQ: 1
Price: USD、RMB
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Core Components:
Robot AC DC Electric Spot Welding Machine Gun For Car
Function:
Spot Welding
Throat:
Customized
Weight:
60~120Kg
Max. Welding Thickness:
6mm+6mm
MOQ:
1
Voltage:
280V
Power:
160KVA
Supply Ability:
500 sets/month
Highlight:

servo motor spot soldering gun

,

100KVA spot soldering gun

,

servo motor gun spot welding machine

Product Description
Robot AC DC Electric Spot Welding Machine Gun For Car
Product

1. Save labor cost (1 machine = 3-5 people), improve labor productivity, improve labor intensity of workers, can work in
harmful environment for 24h

2. High welding precision, high quality, current can be automatically switched at any time, welding thickness 0.1mm-5mm

3. Welding pressure can be set and driven by servo motor

4. Can match any kind of robot

5. Welding arm: aviation aluminum

6. One robot can control multiple welding guns (3 sets)

7. Can store 32 welding specifications. The pressure can be adjusted. Reducing impact deformation and noise

8. Can weld high-strength plate, aluminum, galvanized metal and other materials, good welding effect

Model
Items
Unit
DB3-100
DB3-160
Tranformer's Rated Capacity
KVA
100
160
Primary Power

500V 1000Hz
500V 1000Hz
Max Shortcut Current
KA
1.6
2.2
Max Gun Mouth Current's Open
mm
150
250
Max Electrode Pressure
N
4000N
4500
Flowrate of Cooling Water
L/min
15
15
Arm Material

CuCrZr
CuCrZr
Connecting Way Robot

Up,Down,Left,Right,Backward
Up,Down,Left,Right,Backward
Servo Motor

KUKA,ABB,
KUKA,ABB,
welding thickness

0.8+0.8,1.2+1.2,1.5+1.8
0.8+0.8,1.2+1.2,2+2,2.5+2.5
Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun 0
Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun 1
Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun 2
Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun 3
Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun 4
Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun 5
Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.
Servo Motor Gun Spot Welding Machine , 100KVA Spot Soldering Gun 6
Wooden case is non-fumigation, more convenient for transport
