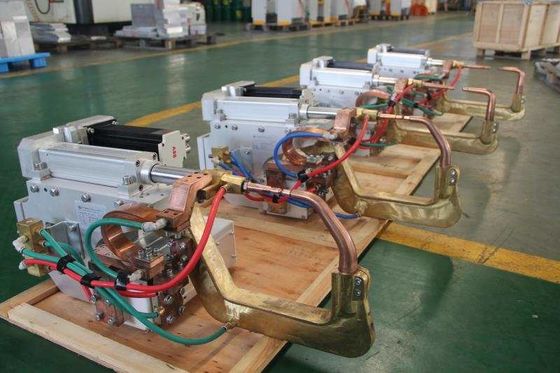

Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic

Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic
Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DB3
Minimum Order Quantity: 1
Price: USD、RMB
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Get Best Price Contact Now
Detail Information
Core Components: Compact Servo-Electric Automatic Robot Welding Gun Function: Resistance Welding
Throat: Customized Weight: 60~120Kg
Max. Welding Thickness: 6mm+6mm MOQ: 1
Voltage: 280V Power: 160KVA
Highlight:

280V servo gun spot welding

,

160KVA servo gun spot welding

Product Description

Compact Servo-Electric Automatic Robot Welding Gun


Product

The product adopts the world's advanced high-frequency inverter technology, full-bridge soft switching technology and DSP digital control technology; the output frequency is 10,000 Hz. It has the characteristics of small size of the transformer, high output power, good welding shape, less welding spatter, and high control accuracy. When welding multi-layer galvanized steel sheets and high-strength steel sheets, not only the quality of the solder joints is good, but also it can be basically splash-free
Model
Items
Unit
DB3-100
DB3-160
Tranformer's Rated Capacity
KVA
100
160
Primary Power

500V 1000Hz
500V 1000Hz
Max Shortcut Current
KA
1.6
2.2
Max Gun Mouth Current's Open
mm
150
250
Max Electrode Pressure
N
4000N
4500
Flowrate of Cooling Water
L/min
15
15
Arm Material

CuCrZr
CuCrZr
Connecting Way Robot

Up,Down,Left,Right,Backward
Up,Down,Left,Right,Backward
Servo Motor

KUKA,ABB,台达等品牌
KUKA,ABB,台达等品牌
welding thickness

0.8+0.8,1.2+1.2,1.5+1.8
0.8+0.8,1.2+1.2,2+2,2.5+2.5
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic 0
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic 1
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic 2
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic 3
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic 4
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic 5
Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic 6
Wooden case is non-fumigation, more convenient for transport

Company Information
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic 7
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic 8
Compact Electric 280V 160KVA Servo Gun Spot Welding Automatic 9
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in
