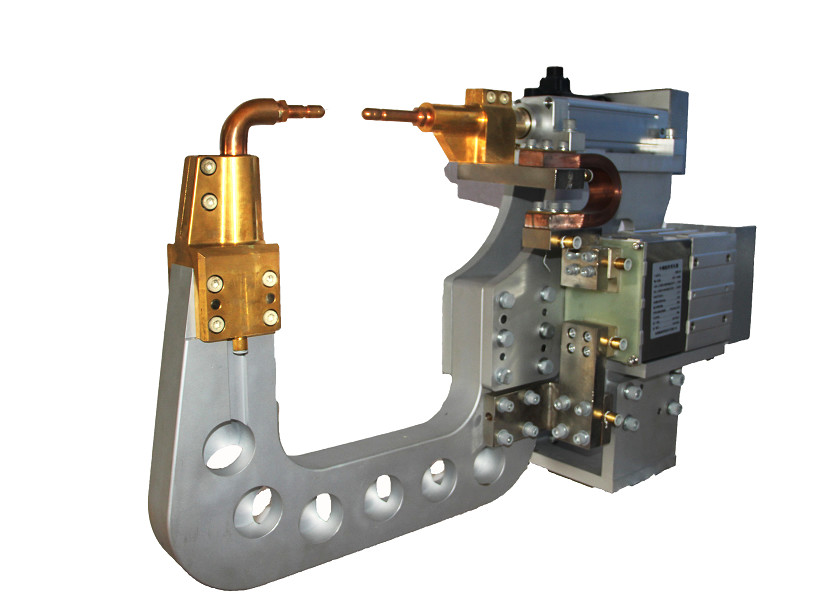

C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun

C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun
Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DB3
Minimum Order Quantity: 1
Price: USD、RMB
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Get Best Price Contact Now
Detail Information
Core Components: C Type Welding Gun Inverter DC Robot Servo Spot Welder Function: Resistance Welding
Throat: Customized Weight: 60~120Kg
Max. Welding Thickness: 6mm+6mm MOQ: 1
Voltage: 380V Power: 160KVA
Highlight:

C Type handgun spot welding machine

,

4KN handgun spot welding machine

,

4KN servo spot welding gun

Product Description

C Type Welding Gun Inverter DC Robot Servo Spot Welder​


Product

The transformer is small in size and light in weight, which not only realizes the integration of the transformer and the welding tongs, but also helps to reduce the overall weight of the robot welding tongs.
The welding tongs servo electric cylinder can adopt imported hollow motor, or the electric cylinder independently researched and developed by our company and obtained a number of patents. The imported hollow motor uses planetary roller screws, and its service life is 5-10 times that of ordinary ball screws. The electric cylinder produced by our company has reasonable structure design, low noise, strong rigidity and long service life
Model
Items
Unit
DB3-100
DB3-160
Tranformer's Rated Capacity
KVA
100
160
Primary Power

500V 1000Hz
500V 1000Hz
Max Shortcut Current
KA
1.6
2.2
Max Gun Mouth Current's Open
mm
150
250
Max Electrode Pressure
N
4000N
4500
Flowrate of Cooling Water
L/min
15
15
Arm Material

CuCrZr
CuCrZr
Connecting Way Robot

Up,Down,Left,Right,Backward
Up,Down,Left,Right,Backward
Servo Motor

KUKA,ABB,台达等品牌
KUKA,ABB,台达等品牌
welding thickness

0.8+0.8,1.2+1.2,1.5+1.8
0.8+0.8,1.2+1.2,2+2,2.5+2.5
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun 0
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun 1
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun 2
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun 3
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun 4
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun 5
Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun 6
Wooden case is non-fumigation, more convenient for transport

Company Information
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun 7
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun 8
C Type Handgun Spot Welding Machine , 4KN Servo Spot Welding Gun 9
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in
