Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DB3
Minimum Order Quantity: 1
Price: USD、RMB
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Core Components: Pneumatic Cylinder Pneumatic Robot Welding Gun Function: Resistance Welding
Throat: Customized Weight: 60~120Kg
Max. Welding Thickness: 6mm+6mm MOQ: 1
Voltage: 380V/220V Power: 200KVA
High Light:

cylinder robotic spot welding gun

,

1000HZ robotic spot welding gun

,

1000HZ c type welding gun


Product Description

Pneumatic cylinder pneumatic robot welding gun​


Product


1. The welding tongs can be used with integrated electric cylinders and combined servo electric cylinders at the same time.

2, self-made transformer, compact structure, there are two series of 1000HZ/2000HZ.

3. Aluminum structure of welding tongs, light weight.

4, X, C type clamp body has a high degree of standardization, interchangeability can reach 80%, which can reduce the reserve of spare parts.

5. The clamp body has good rigidity, and the electrode pressure can reach 600kg, which can meet the needs of high current welding.

6. Easy to disassemble and maintain.

Model
Items
Unit
DB3-100
DB3-160
Tranformer's Rated Capacity
KVA
100
160
Primary Power

500V 1000Hz
500V 1000Hz
Max Shortcut Current
KA
1.6
2.2
Max Gun Mouth Current's Open
mm
150
250
Max Electrode Pressure
N
4000N
4500
Flowrate of Cooling Water
L/min
15
15
Arm Material

CuCrZr
CuCrZr
Connecting Way Robot

Up,Down,Left,Right,Backward
Up,Down,Left,Right,Backward
Servo Motor

KUKA,ABB,台达等品牌
KUKA,ABB,台达等品牌
welding thickness

0.8+0.8,1.2+1.2,1.5+1.8
0.8+0.8,1.2+1.2,2+2,2.5+2.5

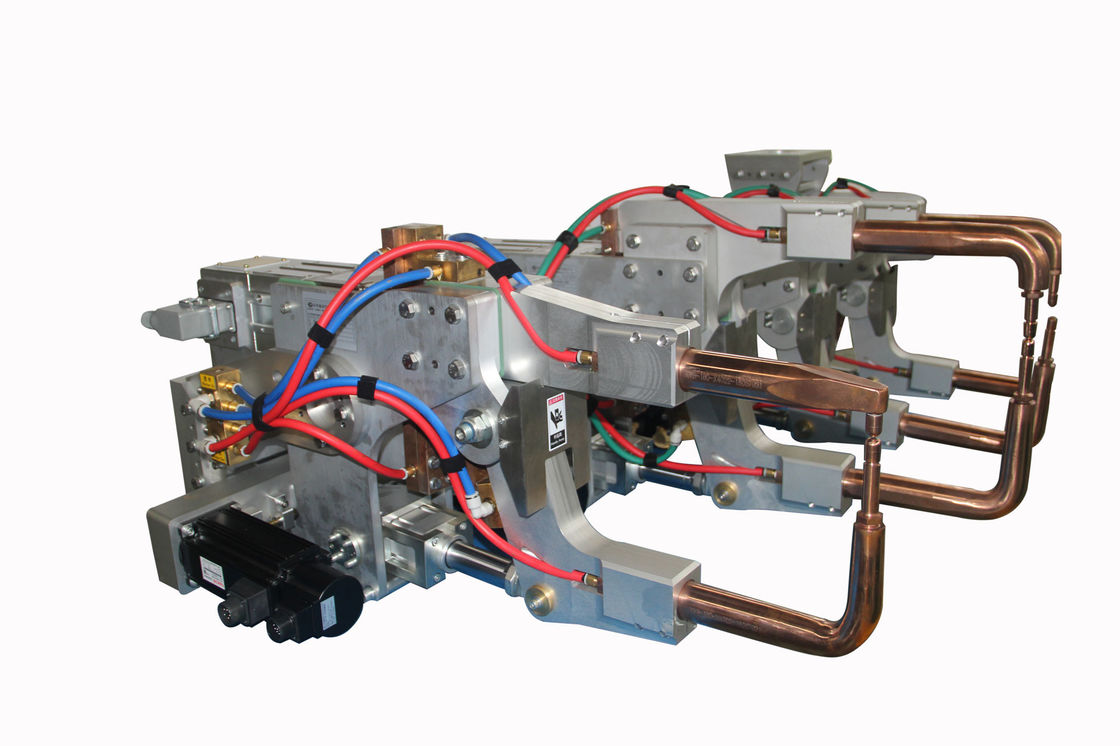

Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun 0
Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun 1
Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun 2
Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun 3
Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun 4
Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun 5

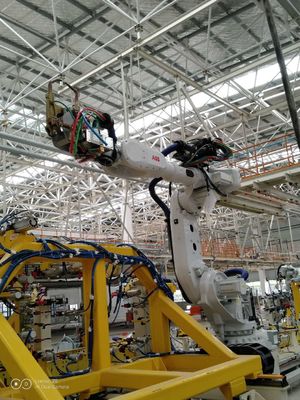

Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.
Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun 6
Wooden case is non-fumigation, more convenient for transport

Company Information
Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun 7
Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun 8
Cylinder Robotic Spot Welding Gun , 1000HZ C Type Welding Gun 9
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in
