Electromagnetic Shielding 500V 200KVA Servo Spot Welding Gun Hand Held

Electromagnetic Shielding 500V 200KVA Servo Spot Welding Gun Hand Held

Brand Name:	XWH
Model Number:	DB3
MOQ:	1
Price:	USD、RMB
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Core Components:

160KVA 200KVA Pneumatic Servo Pneumatic Robot Welding Gun

Function:

Resistance Welding

Throat:

Customized

Weight:

60~120Kg

Max. Welding Thickness:

6mm+6mm

MOQ:

Voltage:

380V/220V

Power:

160KVA/200KVA

Supply Ability:

500 sets/month

Highlight:

200KVA servo spot welding gun

500V servo spot welding gun

hand held spot welding gun

Product Description

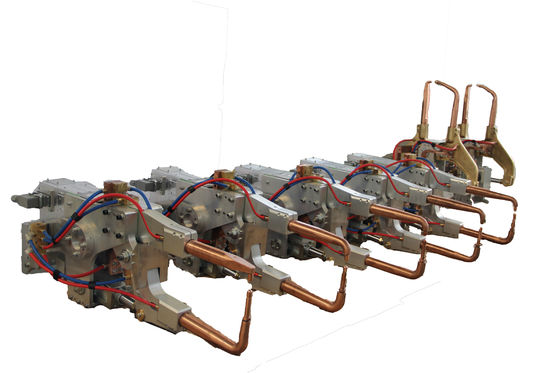

160KVA 200KVA Pneumatic Servo Pneumatic Robot Welding Gun

Product

Advantages:

1. The machine is powerful, but the volume of the transformer is greatly reduced, only one tenth of the original; it can save a lot of copper;

2. Realize the integration of welding gun and transformer, and adopt inverter technology, which can save more than 70% of electric energy;

3. Due to the introduction of electromagnetic compatibility, soft start and capacitor filter circuits, the interference to itself and the pollution of the power grid are reduced;

4. Electromagnetic shielding is adopted for the transformer to reduce the harm of electromagnetic waves to operators;

Model Items	Unit	DB3-100	DB3-160
Tranformer's Rated Capacity	KVA	100	160
Primary Power		500V 1000Hz	500V 1000Hz
Max Shortcut Current	KA	1.6	2.2
Max Gun Mouth Current's Open	mm	150	250
Max Electrode Pressure	N	4000N	4500
Flowrate of Cooling Water	L/min	15	15
Arm Material		CuCrZr	CuCrZr
Connecting Way Robot		Up,Down,Left,Right,Backward	Up,Down,Left,Right,Backward
Servo Motor		KUKA,ABB,台达等品牌	KUKA,ABB,台达等品牌
welding thickness		0.8+0.8,1.2+1.2,1.5+1.8	0.8+0.8,1.2+1.2,2+2,2.5+2.5

Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.

Wooden case is non-fumigation, more convenient for transport
