| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DB3 |
| Minimum Order Quantity: | 1 |
| Price: | USD8000-USD10000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Core Components: | Resistance Servo Robotic Spot Welding Gun | Function: | Automatic Welding |
|---|---|---|---|
| Machine Type: | Automatic Double-side Welding | Weight: | 500kg |
| Max. Welding Thickness: | 6mm+6mm | Feature: | High Production Efficiency |
| Application: | Automotive Industry | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | Certification: | CE |
| Highlight: | Robotic Aluminum Automatic Welding Gun,Resistance Servo Automatic Welding Gun,500V Automatic Robotic Spot Welding Gun |
||

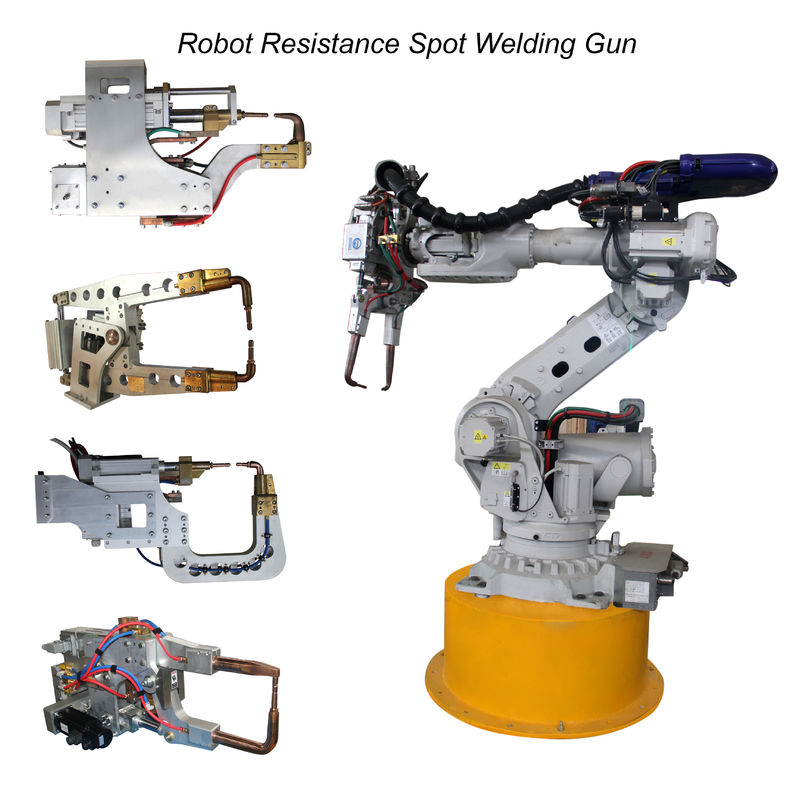

Robot Obara Aluminum Automatic Welding Gun Resistance Servo Robotic Spot Welding Gun
Product Introduction:
DB3 robot servo intermediate frequency spot welding tongs have stable welding, high efficiency, effectively reduce manpower, and can adapt to various working environments,. Up to 32 sets of welding methods can be stored. Xinwei robot welding tongs are made of aviation aluminum and can be matched with various types of robots. They are easy to install and operate.
Application: automobile manufacturing, maintenance industry, agricultural machinery, chemical pipeline manufacturing, plate metal processing, construction steel, household appliances and other steel manufacturing industry.
Features:
1. Stabilize and improve welding quality, which can be reflected in numerical form;
2. Improve labor productivity;
3. Improve the workers’ labor intensity and available in a harmful environment;
4. Reduce the requirements for the operation of workers;
5. The opening of the welding guns is precisely controlled by the servo robot,the cycle time of welding can be greatly reduced;
6. It can save much time for decreasing the opening since the guns’expanding can be adjusted according to the working conditions as long as no collision or interference occurs;
7. When the welding guns closed and pressurized, not only the pressure can be regulated, but also the electrodes can close softly,which will reduce impact deformation and noise.
Technical Parameters:
| Models/Item | unit | DB3-100 | DB3-160 |
|
Transformer’ s Rated Capacity
|
KVA | 100 | 160 |
|
Primary Power
|
V | 500V 1000Hz | 500V 1000Hz |
|
Max Shortcut Current
|
KV | 1.6 | 2.2 |
|
Max Gun Mouth Current’s Open
|
MM | 150 | 250 |
|
Max Electrode Pressure
|
N | 4000 | 4500 |
|
Cooling Consumption
|
L/min | 15 | 15 |
|
Arm Material
|
CuCrZr
|
CuCrZr
|
|
|
Connecting Way Robot
|
Up, down,left,right,backward | Up, down,left,right,backward | |
|
Servo motor
|
KUKA,ABB,Delta |
KUKA,ABB,Delta
|
|
|
Welding thickness
|
MM | 0.8+0.8,1.2+1.2,1.5+1.8 | 0.8+0.8,1.2+1.2,2+2,2.5+2.5 |
Drawings Reference:

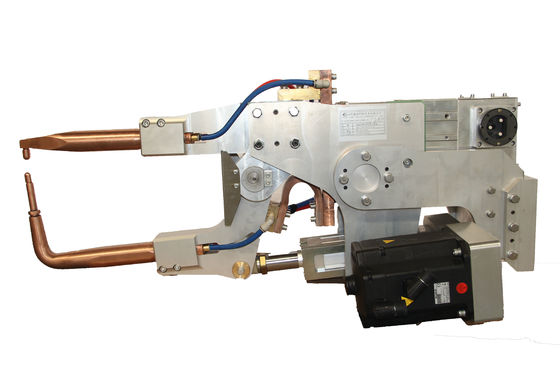

C Type Welding Gun
X Type Welding Gun
Production Line:
Application:
FAQ:
