| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DB3 |
| Minimum Order Quantity: | 1 |
| Price: | USD8000-USD10000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Automatic Spot Welding Gun | Function: | Automatic Operation |
|---|---|---|---|
| Throat: | Customized | Weight: | 200kg |
| Max. Welding Thickness: | 6mm+6mm | MOQ: | 1 |
| Voltage: | 500V | Power: | 100KVA, 160KVA |
| Machine Type: | Resistance Welding Machine | Feature: | High Efficiency |
| Highlight: | Metal Spot Welding Gun Machine,Mf Dc Spot Welding Gun Machine,160KVA Metal Robotic Spot Welding Gun |
||
Product Introduction
|
Model Items
|
Unit | DB3-100 | DB3-160 |
| Tranformer's Rated Capacity | KVA | 100 | 160 |
| Primary Power | 500V 1000Hz | 500V 1000Hz | |
| Max Shortcut Current | KA | 1.6 | 2.2 |
| Max Gun Mouth Current's Open | mm | 150 | 250 |
| Max Electrode Pressure | N | 4000N | 4500 |
| Flowrate of Cooling Water | L/min | 15 | 15 |
| Arm Material | CuCrZr | CuCrZr | |
| Connecting Way Robot | Up, Down, Left, Right, Backward | Up, Down, Left, Right, Backward | |
| Servo Motor | KUKA, ABB, Delta | KUKA, ABB, Delta | |
| welding thickness | 0.8+0.8, 1.2+1.2, 1.5+1.8 | 0.8+0.8, 1.2+1.2, 2+2, 2.5+2.5 |

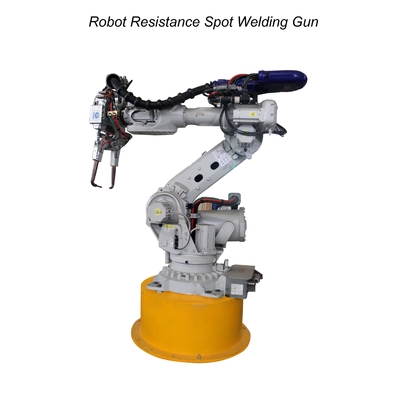

With the technology development of electronics, computer, numerical control and robotics, automatic robotic welders have become more sophisticated since they were used for production in 1960s.

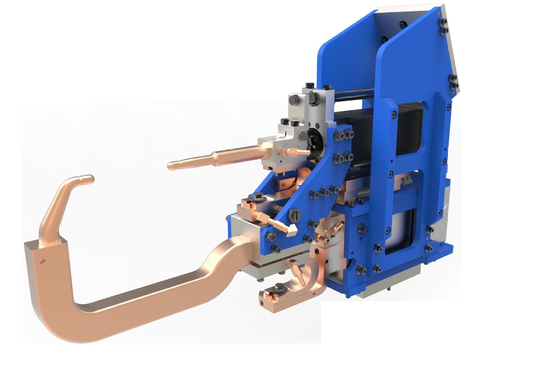

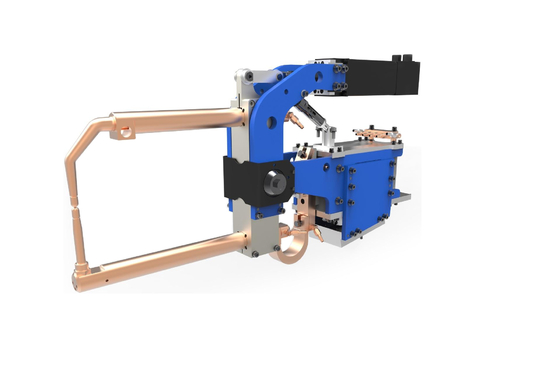

DB3 SERVO MF DC Spot Welding Gun Machine can be custom-made according to your requirement. it is used in automobile manufacturing, maintenance industry, agricultural machinery, chemical pipeline manufacturing, plate metal processing, construction steel, household appliances and other steel manufacturing industry.
|
Model
Items
|
Unit | DB3-100 | DB3-160 |
| Tranformer's Rated Capacity | KVA | 100 | 160 |
| Primary Power | 500V 1000Hz | 500V 1000Hz | |
| Max Shortcut Current | KA | 1.6 | 2.2 |
| Max Gun Mouth Current's Open | mm | 150 | 250 |
| Max Electrode Pressure | N | 4000N | 4500 |
| Flowrate of Cooling Water | L/min | 15 | 15 |
| Arm Material | CuCrZr | CuCrZr | |
| Connecting Way Robot | Up,Down,Left,Right,Backward | Up,Down,Left,Right,Backward | |
| Servo Motor | KUKA,ABB, | KUKA,ABB,台达等品牌 | |
| welding thickness | 0.8+0.8,1.2+1.2,1.5+1.8 | 0.8+0.8,1.2+1.2,2+2,2.5+2.5 |
