Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DND3
Minimum Order Quantity: 1
Price: USD4800-USD6000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Manual Single Sided Spot Welding Machine Rated Capacity: 160KVA, 200KVA
Application: Metal Welding Frequency: 50HZ/60HZ
Voltage: 220V/380V Max. Welding Thickness: 1.5mm+5mm
Machine Type: Single Spot Welding Machine Function: Spot Welding
High Light:

Auto Single Side Spot Welding Machine

,

Automotive SS Spot Welding Machine

,

Auto Body Hand Spot Welding Machine


Product Description

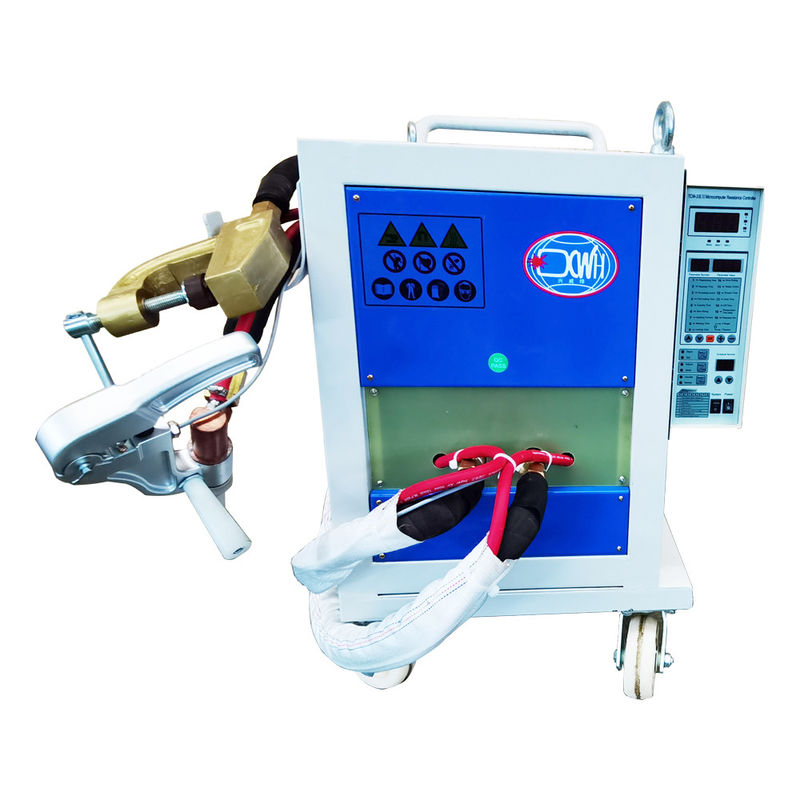

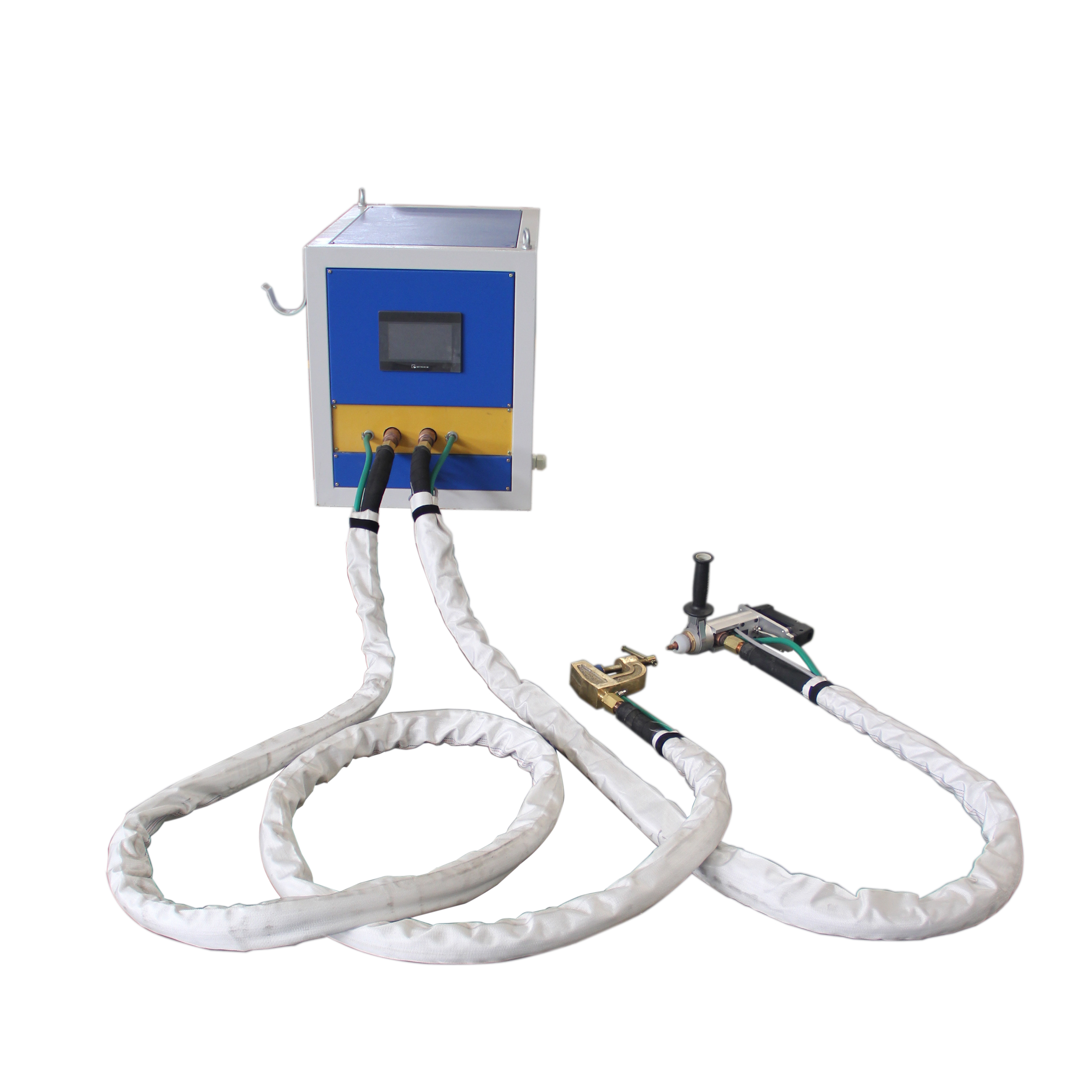

Automotive Small Stainless Steel Auto Body Hand Single Side Spot Welding Machine



Product Description





The single side spot weding machine is for single point, manual spot welding, made up of gun and clamp through welding structure formed by welding circuit, achieving the purpose of spot welding. Cooperating with the micro-computer controller, it can ensure the stable welding current.



Models /Item
Unit
DND3-160
DND3-200
Rated power
KVA
160
200
Rated input current
A
400
475
Rated duty cycle
%
50
Rated input voltage
V
380
Power supply frequency
Hz
50/60
Secondary unload voltage
V
21.7-19
24.5-21.7
Max welding ability
MM
1.0+framework
1.5+framework
Max output current
A
14800
16200
Insulating grade

F
Cooling water consumption 2.5bar
L/min
14
16
Pressure of cool water
Mpa
0.15-0.3Mpa
Pressure of compressed air
Mpa
0.5-0.6Mpa
Insulating resistance

500VDC=500M
Dielectric intensity

2500V,60S(primary-secondary)
weight
Kg
220
240

♦The single side spot weling machine can be customized according to your requirements.





Application:



Automobile manufacturing, maintenance industry, agricultural machinery, plate metal processing, construction steel, household appliances and other steel manufacturing industry.





Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 0





Company Information
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 1
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 2
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 3
Chengdu Xinwei Weldinghan Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 4
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 5
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 6
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 7
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 8
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 9
Exhibition Pictures
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 10
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 11
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 12
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 13
Service
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 14
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 15
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 17
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 18
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 19
Automotive Stainless Steel Auto Body Hand Single Side Spot Welding Machine Small 20
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
