| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DND3 |
| Minimum Order Quantity: | 1 |
| Price: | USD4800-USD6000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Mobile Single Side Spot Welding Machine | Rated Capacity: | 160KVA, 200KVA |
|---|---|---|---|
| Application: | Metal Sheet Welding | Keyword: | Portable Welding Machine |
| Voltage: | 220V/380V | Max. Welding Thickness: | 1.5mm+5mm |
| Machine Type: | Resistance Welding Machine | Function: | Spot Welding |
| High Light: | Aluminum Small Wire Spot Welding Machine,Stainless Steel Spot Welding Machine 200KVA,Metal Sheet Single Side Spot Welder |
||

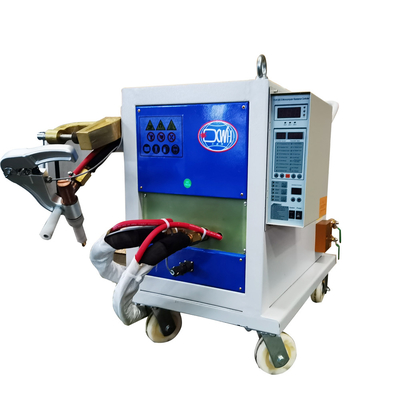

Single side spot welding machine is composed of welding transformer, controller, welding clamp and water-cooled cable, especially suitable for spot welding between bus body skin and frame, as well as metal cabinets, doors and Windows and other thin plate welding.
|
Models /Item
|
Unit
|
DND3-160
|
DND3-200
|
|
Rated power
|
KVA
|
160
|
200
|
|
Rated input current
|
A
|
400
|
475
|
|
Rated duty cycle
|
%
|
50
|
|
|
Rated input voltage
|
V
|
380
|
|
|
Power supply frequency
|
Hz
|
50/60
|
|
|
Secondary unload voltage
|
V
|
21.7-19
|
24.5-21.7
|
|
Max welding ability
|
MM
|
1.0+framework
|
1.5+framework
|
|
Max output current
|
A
|
14800
|
16200
|
|
Insulating grade
|
|
F
|
|
|
Cooling water consumption 2.5bar
|
L/min
|
14
|
16
|
|
Pressure of cool water
|
Mpa
|
0.15-0.3Mpa
|
|
|
Pressure of compressed air
|
Mpa
|
0.5-0.6Mpa
|
|
|
Insulating resistance
|
|
500VDC=500M
|
|
|
Dielectric intensity
|
|
2500V,60S(primary-secondary)
|
|
|
weight
|
Kg
|
220
|
240
|
♦The single side spot weling machine can be customized according to your requirements.
Features:

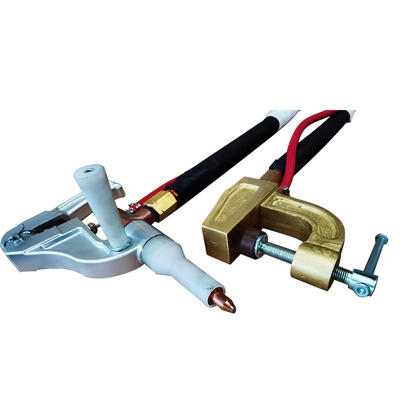

1.The spot welding machine adopts a single spot welding gun or spot welding pliers for spot welding operation. Therefore, it can be applied to spot welding of various geometric structures and various sizes and shapes, and it is very convenient to use.
2.All the conductive main circuit of the welding machine is made of high quality copper material. The welding performance is superior and durable.
3.The spot welding work is safe and reliable, and the maintenance is very convenient.
