| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DND3 |
| Minimum Order Quantity: | 1 |
| Price: | USD4800-USD6000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Mobile Single Side Spot Welding Machine | Rated Capacity: | 160KVA, 200KVA |
|---|---|---|---|
| Application: | Metal Sheet Welding | Keyword: | Portable Welding Machine |
| Voltage: | 220V/380V | Max. Welding Thickness: | 1.5mm+5mm |
| Machine Type: | Resistance Welding Machine | Function: | Spot Welding |
| High Light: | SS Single Side Spot Welding Machine,Cnc Single Side Spot Welding Machine,160KVA Single Sided Spot Welder |
||

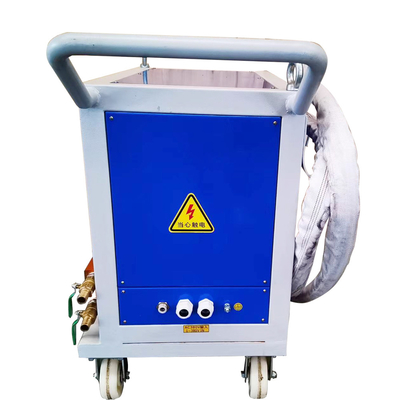

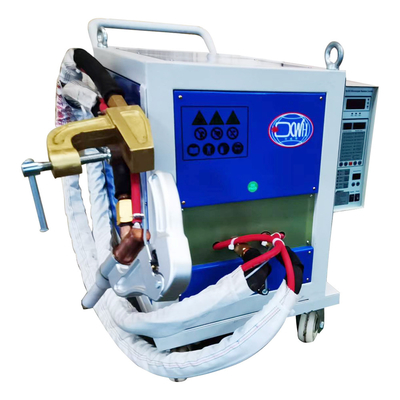

The mobile single spot welding machine is welding by the resistance heat generated when the current passes through the welding parts. It is mainly used for single spot welding of bus skeleton and low carbon steel skin. Mobile single side single spot welding machine can be placed on the ground for use, or suspended using with steel cable. Through the connection of flexible cable and spot welding gun, welding parts do not move during welding, and the handheld spot welding gun can be used in all directions. The operation is convenient and flexible.
|
Models /Item
|
Unit
|
DND3-160
|
DND3-200
|
|
Rated power
|
KVA
|
160
|
200
|
|
Rated input current
|
A
|
400
|
475
|
|
Rated duty cycle
|
%
|
50
|
|
|
Rated input voltage
|
V
|
380
|
|
|
Power supply frequency
|
Hz
|
50/60
|
|
|
Secondary unload voltage
|
V
|
21.7-19
|
24.5-21.7
|
|
Max welding ability
|
MM
|
1.0+framework
|
1.5+framework
|
|
Max output current
|
A
|
14800
|
16200
|
|
Insulating grade
|
|
F
|
|
|
Cooling water consumption 2.5bar
|
L/min
|
14
|
16
|
|
Pressure of cool water
|
Mpa
|
0.15-0.3Mpa
|
|
|
Pressure of compressed air
|
Mpa
|
0.5-0.6Mpa
|
|
|
Insulating resistance
|
|
500VDC=500M
|
|
|
Dielectric intensity
|
|
2500V,60S(primary-secondary)
|
|
|
weight
|
Kg
|
220
|
240
|
♦The single side spot weling machine can be customized according to your requirements.
Features:
1.The welding effect of single side spot welding machine is good. The workpiece is not deformed after welding and the scar is small.
2. The single side spot welding machine can be equipped with different welding guns or welding clamps to meet the welding needs of different product structures
3. The single side welding machine adopts microcomputer control system to accurately control welding elements such as welding current and welding time. The operation setting is convenient and intuitive with good welding stability.
