Brand Name: | XWH |
Model Number: | DND3 |
MOQ: | 1 |
Price: | USD4800-USD6000 |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 sets/month |

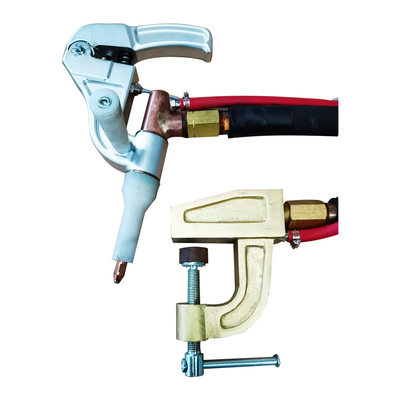

Single side spot welding machine is composed of welding transformer, controller, welding clamp and water-cooled cable, especially suitable for spot welding between bus body skin and frame, as well as metal cabinets, doors and Windows and other thin plate welding.
Models /Item
|
Unit
|
DND3-160
|
DND3-200
|
Rated power
|
KVA
|
160
|
200
|
Rated input current
|
A
|
400
|
475
|
Rated duty cycle
|
%
|
50
|
|
Rated input voltage
|
V
|
380
|
|
Power supply frequency
|
Hz
|
50/60
|
|
Secondary unload voltage
|
V
|
21.7-19
|
24.5-21.7
|
Max welding ability
|
MM
|
1.0+framework
|
1.5+framework
|
Max output current
|
A
|
14800
|
16200
|
Insulating grade
|
|
F
|
|
Cooling water consumption 2.5bar
|
L/min
|
14
|
16
|
Pressure of cool water
|
Mpa
|
0.15-0.3Mpa
|
|
Pressure of compressed air
|
Mpa
|
0.5-0.6Mpa
|
|
Insulating resistance
|
|
500VDC=500M
|
|
Dielectric intensity
|
|
2500V,60S(primary-secondary)
|
|
weight
|
Kg
|
220
|
240
|
♦The single side spot weling machine can be customized according to your requirements.
Features:

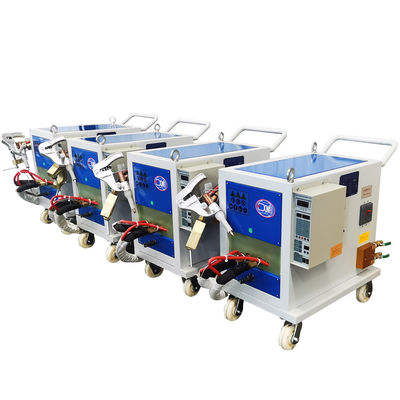

1.The structure form is vehicle type and suspension type.
2. Easy to move and change the welding station.
3. It is especially suitable for welding in positions where conventional welding tongs cannot operate.
4. The spot welding work is safe and reliable, and the maintenance is very convenient.
5. It is suitable for bus skin and ordinary welding machine whose welding arm can not reach into the place.
