Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DND3
Minimum Order Quantity: 1
Price: USD4800-USD6000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Mobile Single Side Spot Welding Machine Rated Capacity: 160KVA, 200KVA
Application: Metal Sheet Spot Welding Keyword: Handheld Welding Machine
Voltage: 220V/380V Max. Welding Thickness: 1.5mm+5mm
Machine Type: Resistance Welding Machine After Warranty Service: Video Technical Support, Online Support And Spare Parts
High Light:

Handheld Single Side Spot Welding Machine

,

Aluminium Single Side Spot Welding Machine

,

Auto Body Single Phase Spot Welder


Product Description

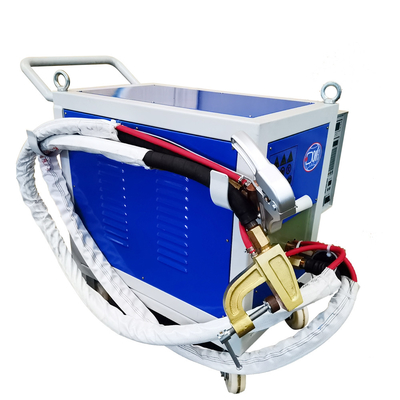

Handheld Single Phase Aluminium Auto Body Panel Single Side Spot Welding Machine



Product Description

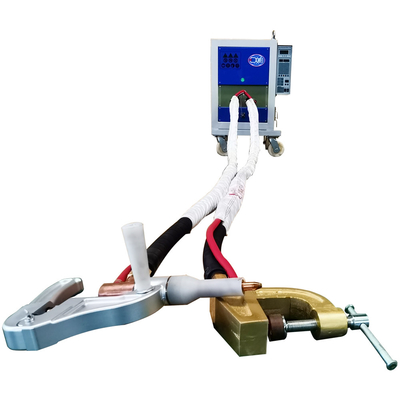

Single side spot welding machine is composed of welding transformer, controller, welding clamp and water-cooled cable, especially suitable for spot welding between bus body skin and frame, as well as metal cabinets, doors and Windows and other thin plate welding.



Models /Item
Unit
DND3-160
DND3-200
Rated power
KVA
160
200
Rated input current
A
400
475
Rated duty cycle
%
50
Rated input voltage
V
380
Power supply frequency
Hz
50/60
Secondary unload voltage
V
21.7-19
24.5-21.7
Max welding ability
MM
1.0+framework
1.5+framework
Max output current
A
14800
16200
Insulating grade

F
Cooling water consumption 2.5bar
L/min
14
16
Pressure of cool water
Mpa
0.15-0.3Mpa
Pressure of compressed air
Mpa
0.5-0.6Mpa
Insulating resistance

500VDC=500M
Dielectric intensity

2500V,60S(primary-secondary)
weight
Kg
220
240

♦The single side spot weling machine can be customized according to your requirements.





Features:



1. Reasonable structure and flexible spot welding, reducing labor intensity.



2. Since the welder and cable can be moved freely, it can weld in all directions.



3. Users can choose a variety of suitable welding gun according to different needs.



4. The single side spot welding machine has strong applicability, which can be suspended and moved, and can be manually operated.



5. The single side spot welding machine is especially suitable for the maintenance of automobile and cabinet manufacturing industry, mainly to solve the welding of sheet metal and components.



Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 0





Company Information
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 1
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 2
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 3
Chengdu Xinwei Weldinghan Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 4
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 5
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 6
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 7
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 8
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 9
Exhibition Pictures
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 10
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 11
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 12
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 13
Service
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 14
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 15
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 17
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 18
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 19
Aluminium Auto Body Panel Single Side Spot Welding Machine Single Phase Handheld 20
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
