Auto Body Capacitive Discharge Resistance Welding Spot Welder Handy Industrial

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DND3
Minimum Order Quantity: 1
Price: USD4800-USD6000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Mobile Single Side Spot Welding Machine Rated Capacity: 160KVA, 200KVA
Application: Metal Sheet Spot Welding Keyword: Handheld Welding Machine
Voltage: 220V/380V Max. Welding Thickness: 1.5mm+5mm
Machine Type: Resistance Welding Machine After Warranty Service: Video Technical Support, Online Support And Spare Parts
High Light:

Industrial Resistance Welding Spot Welder

,

Handy Resistance Welding Spot Welder

,

Auto Body Capacitive Discharge Spot Welder


Product Description

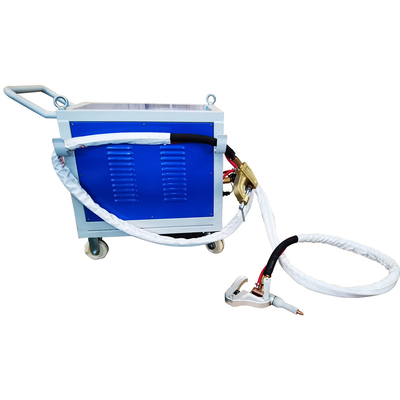

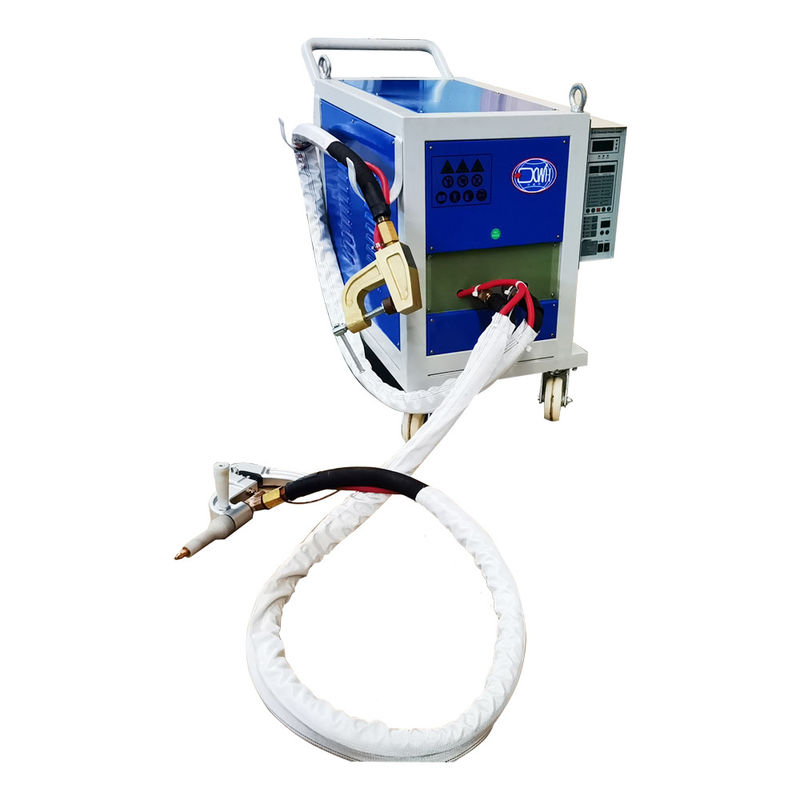

Handy Auto Body Capacitive Discharge Industrial Resistance Welding Spot Welder



Product Description





Single side spot welding machine is composed of welding transformer, controller, welding clamp and water-cooled cable, especially suitable for spot welding between bus body skin and frame, as well as metal cabinets, doors and Windows and other thin plate welding.



Models /Item
Unit
DND3-160
DND3-200
Rated power
KVA
160
200
Rated input current
A
400
475
Rated duty cycle
%
50
Rated input voltage
V
380
Power supply frequency
Hz
50/60
Secondary unload voltage
V
21.7-19
24.5-21.7
Max welding ability
MM
1.0+framework
1.5+framework
Max output current
A
14800
16200
Insulating grade

F
Cooling water consumption 2.5bar
L/min
14
16
Pressure of cool water
Mpa
0.15-0.3Mpa
Pressure of compressed air
Mpa
0.5-0.6Mpa
Insulating resistance

500VDC=500M
Dielectric intensity

2500V,60S(primary-secondary)
weight
Kg
220
240

♦The single side spot weling machine can be customized according to your requirements.





Features:



1. Reasonable structure and flexible spot welding, reducing labor intensity.



2.Single spot welder has the advantages of small volume, light weight and other characteristics. The welding machine and welding gun can be mobile./Equipped with long water-cooling welding cable, the hand-held spot welding gun can operate flexibly and conveniently. The machine is installed with four rollers to make sure it can move conveniently.



3. Generally for low carbon steel, steel, galvanized steel, stainless steel and other metal. It is widely used in all kinds of sheet metal, steel box and cabinet, iron furniture, stainless steel kitchen products, stainless steel door manufacturing and steel wire mesh reweld after leakage welding etc.
