| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DND3 |
| Minimum Order Quantity: | 1 |
| Price: | USD4800-USD6000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Portable Single Side Spot Welding Machine | Rated Capacity: | 160KVA, 200KVA |
|---|---|---|---|
| Application: | Automobile Welding | Keyword: | Handheld Welding Machine |
| Voltage: | 220V/380V | Max. Welding Thickness: | 1.5mm+5mm |
| Machine Type: | Resistance Welding Machine | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Accurate Pro Point Spot Welder,Water Cooled Accurate Point Spot Welder,160KVA One Sided Spot Welding Machine |
||

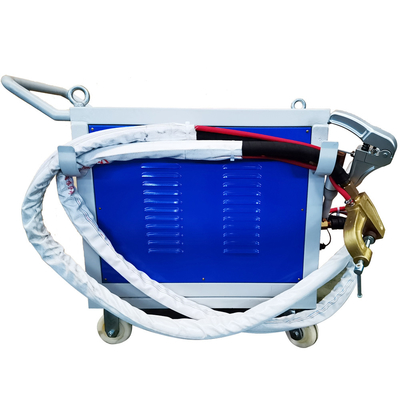

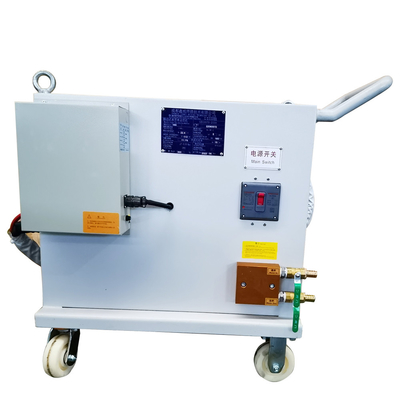

The single side spot welding machine is composed of circuit, welding transformer, circulating cooling waterway system, spot welding control system, two water-cooled cables connected with the welding transformer, spot welding gun and galvanic pincette. There are four rollers at the bottom for easy movement and a Longitudinal hanging plate at the top frame.
|
Models /Item
|
Unit
|
DND3-160
|
DND3-200
|
|
Rated power
|
KVA
|
160
|
200
|
|
Rated input current
|
A
|
400
|
475
|
|
Rated duty cycle
|
%
|
50
|
|
|
Rated input voltage
|
V
|
380
|
|
|
Power supply frequency
|
Hz
|
50/60
|
|
|
Secondary unload voltage
|
V
|
21.7-19
|
24.5-21.7
|
|
Max welding ability
|
MM
|
1.0+framework
|
1.5+framework
|
|
Max output current
|
A
|
14800
|
16200
|
|
Insulating grade
|
|
F
|
|
|
Cooling water consumption 2.5bar
|
L/min
|
14
|
16
|
|
Pressure of cool water
|
Mpa
|
0.15-0.3Mpa
|
|
|
Pressure of compressed air
|
Mpa
|
0.5-0.6Mpa
|
|
|
Insulating resistance
|
|
500VDC=500M
|
|
|
Dielectric intensity
|
|
2500V,60S(primary-secondary)
|
|
|
weight
|
Kg
|
220
|
240
|
♦The single side spot weling machine can be customized according to your requirements.
Features:
1. The structure is humanized as it's easy and flexible to weld in all directions.
2. The welding machine adopts microcomputer which controls the welding current and time precisely.
3.The single side spot welding machine can match with multiple suitable welding gun according to kinds of needs.
4. The single side spot welding machine can not only be suspended and moved, but also can be manually operated.
