| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DND3 |
| Minimum Order Quantity: | 1 |
| Price: | USD4800-USD6000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Portable Single Side Spot Welding Machine | Rated Capacity: | 160KVA, 200KVA |
|---|---|---|---|
| Application: | Mesh Welding Machine | Keyword: | Handheld Welding Machine |
| Voltage: | 220V/380V | Max. Welding Thickness: | 1.5mm+5mm |
| Machine Type: | Resistance Welding Machine | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| High Light: | Single Sided Handheld Spot Welder Pen,220v Wire Mesh Spot Welder Pen,ISO Handheld Spot Welding Machine |
||

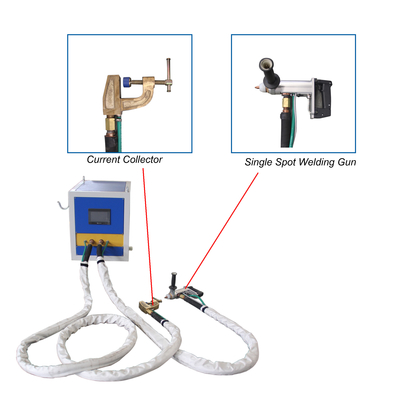

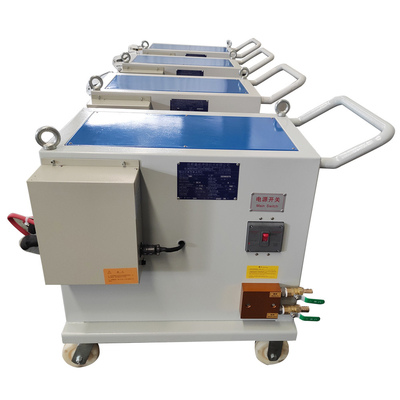

The single side spot welding machine consists of circuit, welding transformer, circulating cooling waterway system, spot welding control system, two water-cooled cables connected with the welding transformer, spot welding gun and galvanic pincette. There are four rollers at the bottom for easy movement and a Longitudinal hanging plate at the top frame for hanging.
|
Models /Item
|
Unit
|
DND3-160
|
DND3-200
|
|
Rated power
|
KVA
|
160
|
200
|
|
Rated input current
|
A
|
400
|
475
|
|
Rated duty cycle
|
%
|
50
|
|
|
Rated input voltage
|
V
|
380
|
|
|
Power supply frequency
|
Hz
|
50/60
|
|
|
Secondary unload voltage
|
V
|
21.7-19
|
24.5-21.7
|
|
Max welding ability
|
MM
|
1.0+framework
|
1.5+framework
|
|
Max output current
|
A
|
14800
|
16200
|
|
Insulating grade
|
|
F
|
|
|
Cooling water consumption 2.5bar
|
L/min
|
14
|
16
|
|
Pressure of cool water
|
Mpa
|
0.15-0.3Mpa
|
|
|
Pressure of compressed air
|
Mpa
|
0.5-0.6Mpa
|
|
|
Insulating resistance
|
|
500VDC=500M
|
|
|
Dielectric intensity
|
|
2500V,60S(primary-secondary)
|
|
|
weight
|
Kg
|
220
|
240
|
♦The single side spot weling machine can be customized according to your requirements.
Features:
1. The structure is reasonableas as its flexible spot welding can reduce labor intensity.
2. The single side spot welding machine can weld in all directions as the welder and cable is easy to move.
3. User can select multiple suitable welding guns according to kinds of requirements.
4. The single side spot welding machine is mainly used for welding the thin plate between the bus surface skin and the structure, as well as welding metal boxes, doors and Windows, etc.
