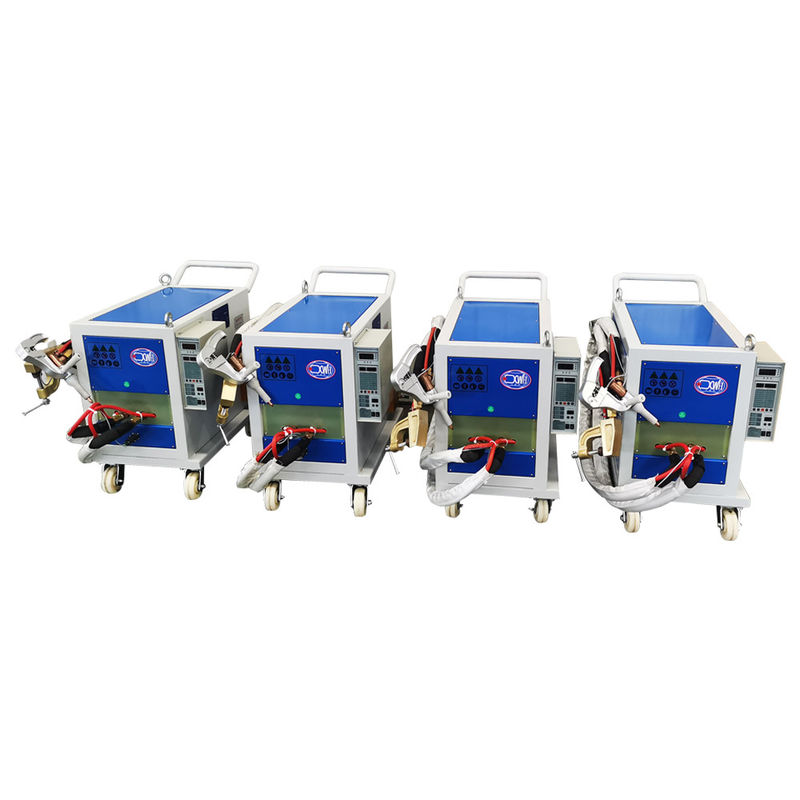

Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DND3
Minimum Order Quantity: 1
Price: USD4800-USD6000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Portable Single Side Spot Welding Machine Rated Capacity: 160KVA, 200KVA
Function: Automobile Welding Keyword: Handheld Welding Machine
Voltage: 220V/380V Max. Welding Thickness: 1.5mm+5mm
Machine Type: Resistance Welding Machine After Warranty Service: Video Technical Support, Online Support And Spare Parts
High Light:

Single Sided Spot Welding Machine

,

Resistance Single Sided Spot Welding Machine

,

Automotive Single Side Spot Welding Machine


Product Description



Mfdc Resistance Single Sided Small Portable Spot Welding Machine In Automotive



Product Description





The single side spot welding machine consists of the machinery frame structure, welding transformer, control system, water-cooling cable and welding torch,, especially suitable for automobile and cabinet manufacturing industry, as well as sheet metal and components.



Models /Item
Unit
DND3-160
DND3-200
Rated power
KVA
160
200
Rated input current
A
400
475
Rated duty cycle
%
50
Rated input voltage
V
380
Power supply frequency
Hz
50/60
Secondary unload voltage
V
21.7-19
24.5-21.7
Max welding ability
MM
1.0+framework
1.5+framework
Max output current
A
14800
16200
Insulating grade

F
Cooling water consumption 2.5bar
L/min
14
16
Pressure of cool water
Mpa
0.15-0.3Mpa
Pressure of compressed air
Mpa
0.5-0.6Mpa
Insulating resistance

500VDC=500M
Dielectric intensity

2500V,60S(primary-secondary)
weight
Kg
220
240

♦The single side spot weling machine can be customized according to your requirements.





Features:



1. The single spot welding machine is widely used to weld the low carbon steel, stainless steel sheet and low carbon steel structure.



2. As the singe side spot welding machine is flexible and humanized, so it can reduce labor intensity.



3. The single side spot welding machines is movable as it can be installed on the cart. Besides it can alsobe hanged for moving freely. When welding, the workpiece can stay still while the welding gun moves .





Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 0



Company Information
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 1
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 2
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 3
Chengdu Xinwei Weldinghan Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 4
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 5
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 6
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 7
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 8
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 9
Exhibition Pictures
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 10
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 11
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 12
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 13
Service
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 14
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 15
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 17
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 18
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 19
Mfdc Resistance Single Sided Spot Welding Machine Small Portable In Automotive 20
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
