| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DND3 |
| Minimum Order Quantity: | 1 |
| Price: | USD4800-USD6000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Portable Single Side Spot Welding Machine | Rated Capacity: | 160KVA, 200KVA |
|---|---|---|---|
| Function: | Automobile Welding | Keyword: | Handheld Welding Machine |
| Voltage: | 220V/380V | Max. Welding Thickness: | 1.5mm+5mm |
| Machine Type: | Resistance Welding Machine | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| High Light: | Automotive Spot Soldering Resistance Welding Machine,Inverter Aluminum Sheet Resistance Welding Machine,160KVA Single Side Spot Welding Machine |
||

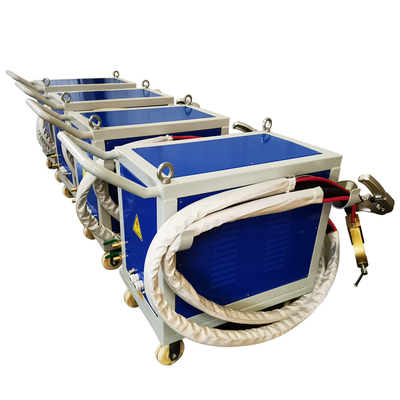

The single spot welding machine is a new mobile spot welding machine designed according to the needs of market. It not only maintains the spot welding function of fixed spot welding machine,it but also highlights its advantages of convenient operation and accurate control.
|
Models /Item
|
Unit
|
DND3-160
|
DND3-200
|
|
Rated power
|
KVA
|
160
|
200
|
|
Rated input current
|
A
|
400
|
475
|
|
Rated duty cycle
|
%
|
50
|
|
|
Rated input voltage
|
V
|
380
|
|
|
Power supply frequency
|
Hz
|
50/60
|
|
|
Secondary unload voltage
|
V
|
21.7-19
|
24.5-21.7
|
|
Max welding ability
|
MM
|
1.0+framework
|
1.5+framework
|
|
Max output current
|
A
|
14800
|
16200
|
|
Insulating grade
|
|
F
|
|
|
Cooling water consumption 2.5bar
|
L/min
|
14
|
16
|
|
Pressure of cool water
|
Mpa
|
0.15-0.3Mpa
|
|
|
Pressure of compressed air
|
Mpa
|
0.5-0.6Mpa
|
|
|
Insulating resistance
|
|
500VDC=500M
|
|
|
Dielectric intensity
|
|
2500V,60S(primary-secondary)
|
|
|
weight
|
Kg
|
220
|
240
|
♦ The single side spot weling machine can be customized according to your requirements.
Features:
1. Conrolled by microcomputer, the welding time and current can be controlled precisely.
2. The welding gun is movable and suitable for different strctures of welding workpieces.
3. The single side spot welding machine mainly used in kinds of plates, metal sheets and other metal materials composed of box, cabinet, platform, frame, shell, and other workpiece welding processing
