| Product Name: | Stationary Spot Welder | Application: | Sheet Metal Welding |
|---|---|---|---|
| Function: | Door Panel Welding | Machine Type: | Resiatance Welding Machine |
| Feature: | Stationary Welding Machine | Welding Material: | Steel Copper Aluminum |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| Highlight: | T Bar Metal Spot Weld Remover,380V Suction Car Dent Puller,3KW Vehicle Body Spot Weld Remover |
||

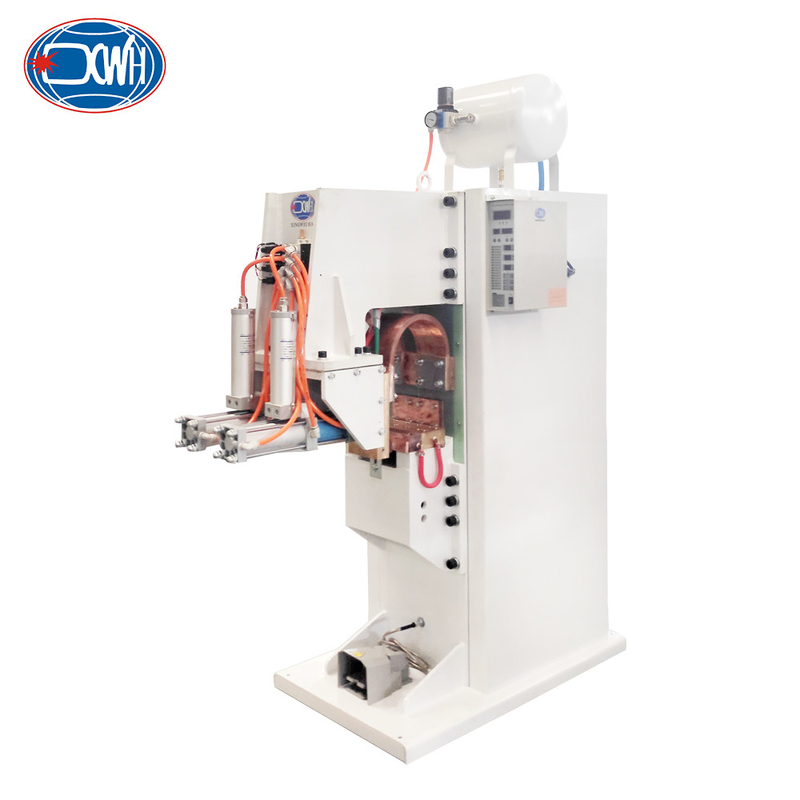

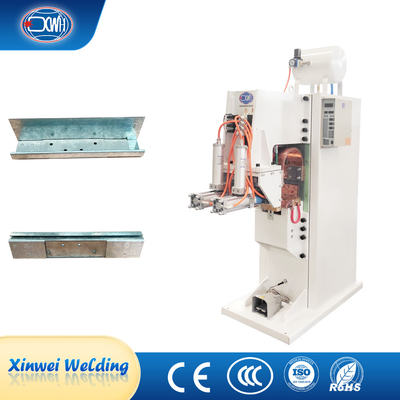

Industrial Soldadora De Punto Hand Resistance Projection Spot Welding Machine
Product Description
The metal leaf welding machine's welding action principle: Press the start button and the equipment action will be completed by the welding controller without manual intervention.Until welding point is completed. Each welding head completes projection welding of 4 welding points. A total of 8 protrusions were welded in one clamping process. Easy to ensure the welding quality of each welding point. The welding pressure and welding current of each welding head are independently adjustable.
Technical Parameters
| Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
| Max.Welding Capaciry A3 steel | MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 |
Advantages
1. The descent and ascent speed of the pressure head can be adjusted arbitrarily, easing the pressure impact on the workpiece and reducing noise;
2. The combination cylinder of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, equipped with a pilot large flow electromagnetic directional valve, has faster response speed and extremely sensitive follow-up performance, achieving extremely high tapping speed.
3. The secondary side circuit adopts a pressurized cylinder seat and upper arm insulation method, which is convenient for direct installation and welding work in the lower seat without worrying about short circuits. It is simple and practical.
4. The main welding circuit adopts a fully internal water-cooled resistance welding transformer and water-cooled high-power thyristor components, with strong output power. The welding machine uses a set of welding controllers, which can operate in three modes: dual head simultaneous, dual head alternating, and dual head running separately. The digital touch screen is convenient for parameter adjustment, and the three modes can be switched freely.
