| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD13000-USD15000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Wire Mesh Welding Machine | Application: | Welding Ventilation Duct |
|---|---|---|---|
| Function: | Spot Weldinng | Machine Type: | Automatic Welding |
| Keyword: | Resistance Spot Welding Machine | Welding Material: | Alloy Metal Aluminum Stainless Steel |
| Feature: | Stationary Welding Machine | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | Certification: | CE |
| Highlight: | Hail Damage Car Dent Puller,3KW Aluminum Car Dent Puller |
||

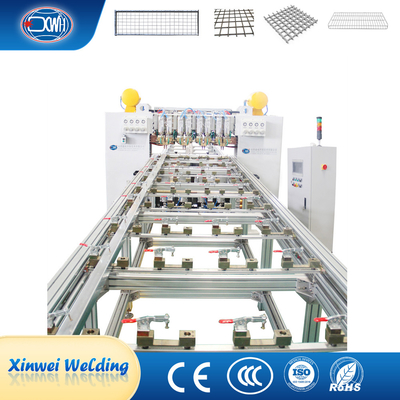

Resistance Spot Projection Welding Automatic Welder Point Wire Mesh Welding Machine
Product Introduction
The rectangular tube multi-point welding machine mainly consists of a frame, 4 sets of welding transformers, 4 sets of welding controllers, 8 sets of upper electrode assemblies, lower electrode assemblies, workpiece movement mechanisms, workpiece positioning fixtures, conveying platforms, water system, gas system, electrical control system, etc.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Features
1. Accurate microcomputer control: The microcomputer inside the welding machine scans the input voltage in high numbers for a long time. As soon as the power supply fluctuates, it immediately calculates the compensation data and changes the welding energy, so that welding does not have false welding or explosion due to unstable voltage. It is more suitable for use under unstable voltage, and can ensure even welding effect each time
2. Stable current output: Due to the use of microcomputer microcontroller control, the current regulation is refined to ensure stable output current, and the welding discharge time control is precise and unrestricted
3. Simplified operation settings: All parameters are computerized, using LCD liquid crystal display and keyboard adjustment, accurate, intuitive, and convenient
4. Easy to adjust and use: The spacing between welding needles and the pressure of welding needles are independently adjustable, suitable for the welding of fine components, with accurate alignment and high yield

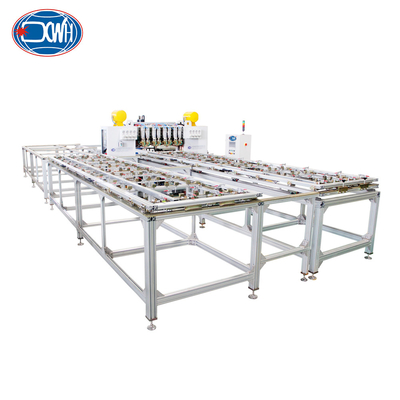

Major Structure
Application
