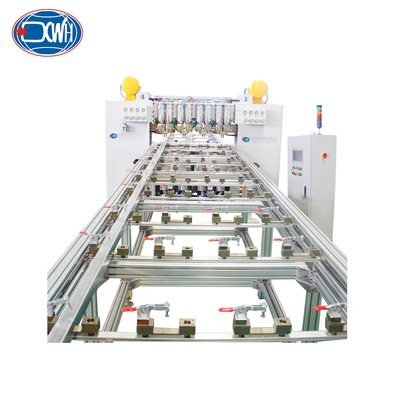

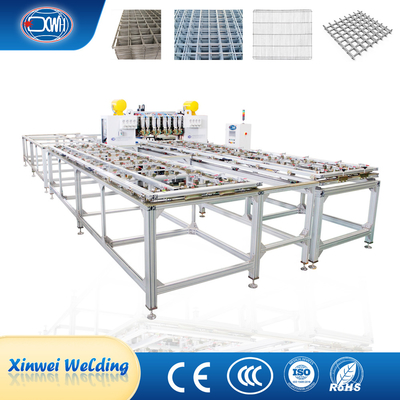

Cnc Automatic Welder Machines Multi Head Spot Welding Wire Mesh Welding Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD13000-USD15000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Wire Mesh Spot Welding Machine Application: Ventilation Duct Welding
Function: Resistance Spot Welding Machine Type: Wire Welder Automatic Machines
Keyword: Automatic Multi Head Spot Welding Machine Welding Material: Steel Copper Aluminum
Feature: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
After Warranty Service: Video Technical Support, Online Support And Spare Parts Certification: CE
High Light:

ISO Auto Body Spot Welder

,

3KW Suction Cup Dent Removal


Product Description





Cnc Automatic Welder Machines Multi Head Spot Welding Wire Mesh Welding Machine



Product Introduction



The rectangular tube multi point welding machine is developed based on the welding process of the workpiece, using pneumatic pressure and vertical movement of the upper electrode up and down. All models have the characteristics of compact structure, novel and beautiful design, stable performance, safe and reliable use, and high efficiency and energy conservation.





 Technical Parameters



Models/Item DN(B)-100 D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 100 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 30 40 40 45
Max. force (N) 6000 6000 10000 15000
Electrode length(MM) 450 450 450 500
Working stroke(MM) 80 80 80 80
Cooling consumption(L/min) 20 20 20 20
Max.welding capacity(MM) 3.0+3.0 4.0+4.0 5.0+5.0 6.0+6.0





Features



1. Accurate microcomputer control: The microcomputer inside the welding machine scans the input voltage in high numbers for a long time. As soon as the power supply fluctuates, it immediately calculates the compensation data and changes the welding energy, so that welding does not have false welding or explosion due to unstable voltage. It is more suitable for use under unstable voltage, and can ensure even welding effect each time



2. Stable current output: Due to the use of microcomputer microcontroller control, the current regulation is refined to ensure stable output current, and the welding discharge time control is precise and unrestricted



3. Simplified operation settings: All parameters are computerized, using LCD liquid crystal display and keyboard adjustment, accurate, intuitive, and convenient



4. Easy to adjust and use: The spacing between welding needles and the pressure of welding needles are independently adjustable, suitable for the welding of fine components, with accurate alignment and high yield





Major Structure



Cnc Automatic Welder Machines Multi Head Spot Welding Wire Mesh Welding Machine 0





Cnc Automatic Welder Machines Multi Head Spot Welding Wire Mesh Welding Machine 1



Cnc Automatic Welder Machines Multi Head Spot Welding Wire Mesh Welding Machine 2



Application





Cnc Automatic Welder Machines Multi Head Spot Welding Wire Mesh Welding Machine 3


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
