| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DTN-500J, DTN-800J |
| Minimum Order Quantity: | 1 |
| Price: | USD3000-USD4500 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Capacitor Welding Machine | Application: | For Electronic Components |
|---|---|---|---|
| Capacitance: | 8000uf | Electrode Stroke: | 50mm |
| Input Heat: | 500J | Machine Type: | Resistance AC Welding Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| Highlight: | Discharge Nut Capacitor Spot Welder,Electronic Components Capacitor Spot Welder,Cnc Capacitance Discharge Spot Welder |
||

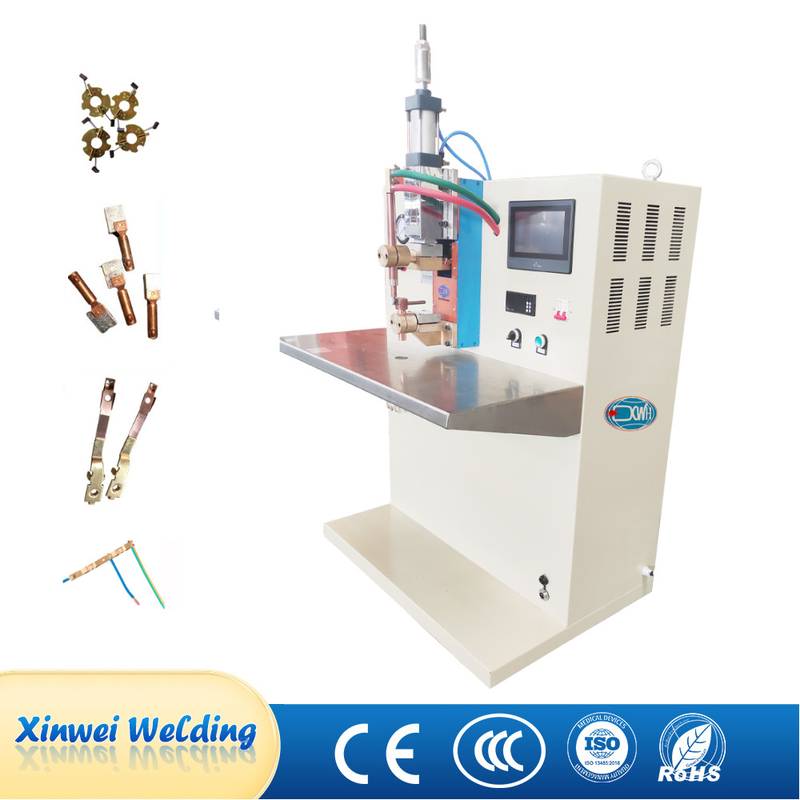

Cnc Capacitance Discharge Nut Capacitor Spot Welder For Electronic Components
Product Introduction:
Capacitive energy storage welding machine is a special resistance welding machine that uses a pulse current with relatively concentrated energy to generate heat through the contact point of the welded work and fuse the metal. Mainly used for welding dissimilar metal hard specifications with different thicknesses or surfaces, especially suitable for welding materials with good thermal conductivity, good conductivity, or small post weld heat affected zone, such as electrical appliances, watch straps, jewelry, stainless steel tableware, and hardware manufacturing.
Advantages:
1. Fast charging and discharging circuit, stable voltage, high charging and discharging frequency.
2. The fast logic circuit can ensure that the welder will not discharge until the capacitor is charged to the preset voltage. (It can ensure that the capacitor does not discharge when the voltage is below the preset value during fast welding) so as to ensure the welding quality.
3. Digital regulator can adjust the voltage at both ends of the capacitor from 40V to 1V accuracy 400 v.
4. Accurate digital circuit can control the voltage fluctuation error within 0.5%.
Technical Parameters:
| Model | Input voltage | Capacitance | Energy Storage | Electrode Pressure | The Max. welding Ihickness | Weigh |
| DTN-500J | 220V | 4500μF | 500j | 1000N | 1+1MM | 200KG |
| DTN-800J | 220V | 8000μF | 800j | 3900N | 1.2+1.2MM | 450KG |
Details:
Easy to operate
Capacitive discharge welding, short time solder joints, small deformation, easy to operate.
High welding quality
Fully functional, good performance, stable voltage, good qualitative analysis and high welding quality.
Different electrodes

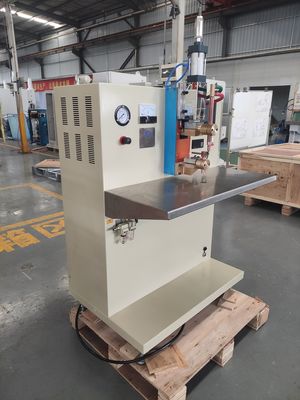

Scene Images:
Application:
FAQ:
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
