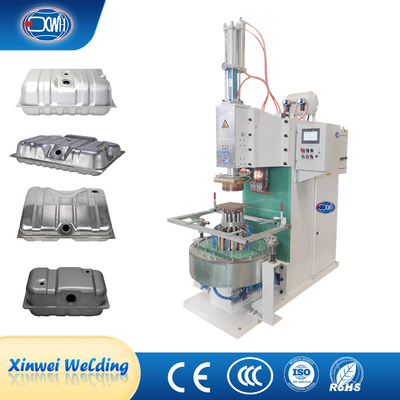

Resistance Aluminum Fuel Oil Tank Welding Multi Poiant Welding Spot Welder Machine

Resistance Aluminum Fuel Oil Tank Welding Multi Poiant Welding Spot Welder Machine

Brand Name:	XWH
Model Number:	DN(B)-160, DN(B)-200, DN(B)-250
MOQ:	1
Price:	USD30000-USD40000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Fuel Tank Welding Machine

Application:

Welding Machine For Oil Tank

Function:

Resistance Spot Welding

Machine Type:

Pneumatic Spot Welding

Keyword:

Welding Multi Spot Machine

Welding Material:

Stainless Steel

Feature:

High Production Efficiency

Warranty:

1 Year Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Stud Welder Dent Repair Machine

Suction Cup Dent Repair Machine

Product Description

Resistance Aluminum Fuel Oil Tank Welding Multi Poiant Welding Spot Welder Machine

Product Introduction:

Platform type spot welding machine is mainly designed for large metal workpieces in industries such as hardware, sheet metal, elevators, kitchenware, and automobiles.

Advantages:

1. The electrode pressurization is stable and fast: the aluminum alloy cylinder, low damping sealing ring, and light friction ring combination cylinder work stably.

2. Energy saving and efficient welding power supply: The welding controller adopts a commercial intermediate frequency controller, which is reliable in quality, stable in operation, and easy to operate.

3. All waterway components are made of stainless steel and equipped with a visual water flow display, which is conducive to monitoring the cooling situation of the electrode head and preventing the electrode head from overheating and reducing its lifespan; The main water inlet is equipped with a water filter to prevent blockages in the waterway.

4. The equipment has air pressure and water pressure switches and alarms. It can effectively prevent water or gas shortage during welding, thereby protecting the safety of equipment use.

Technical Parameters:

Models/Item	DN(B)-100	D(N)B--160	D(N)B--200	D(N)B--250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current(KA)	30	40	40	45
Max. force (N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max.welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

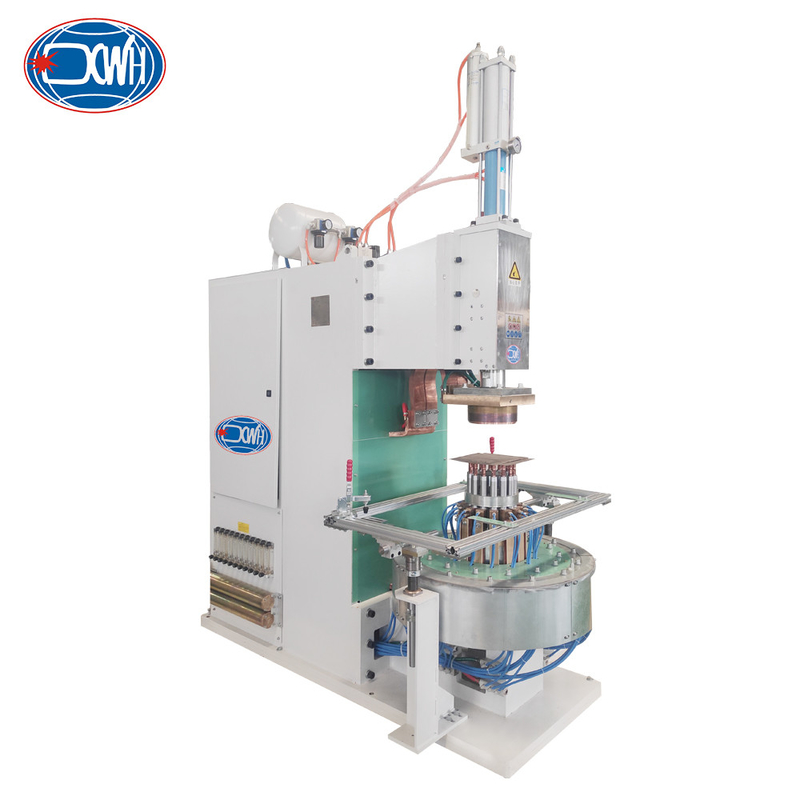

General Structures:

Resistance Aluminum Fuel Oil Tank Welding Multi Poiant Welding Spot Welder Machine 0

Resistance Aluminum Fuel Oil Tank Welding Multi Poiant Welding Spot Welder Machine 1

Workpiece:

Resistance Aluminum Fuel Oil Tank Welding Multi Poiant Welding Spot Welder Machine 2

Production Line:

Resistance Aluminum Fuel Oil Tank Welding Multi Poiant Welding Spot Welder Machine 3

Application:

Resistance Aluminum Fuel Oil Tank Welding Multi Poiant Welding Spot Welder Machine 4

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
