| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN(B)-160, DN(B)-200, DN(B)-250 |
| Minimum Order Quantity: | 1 |
| Price: | USD30000-USD40000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Multi Point Spot Welding Machine | Application: | Oil Tank Welding Machine |
|---|---|---|---|
| Function: | Spot Welding | Machine Type: | Pneumatic Spot Welder |
| Keyword: | Multi-Point Spot Welding Machine | Welding Material: | Galvanized |
| Feature: | Stationary Welding Machine | Warranty: | 12 Months Guarantee |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Electric Spot Dent Puller,O Liner Spot Dent Puller,380V Steel Spot Welding Machine |
||
Pneumatic Spot Welder Cnc Multi Point Oil Tank Multi-Point Spot Welding Machine
Product Introduction:

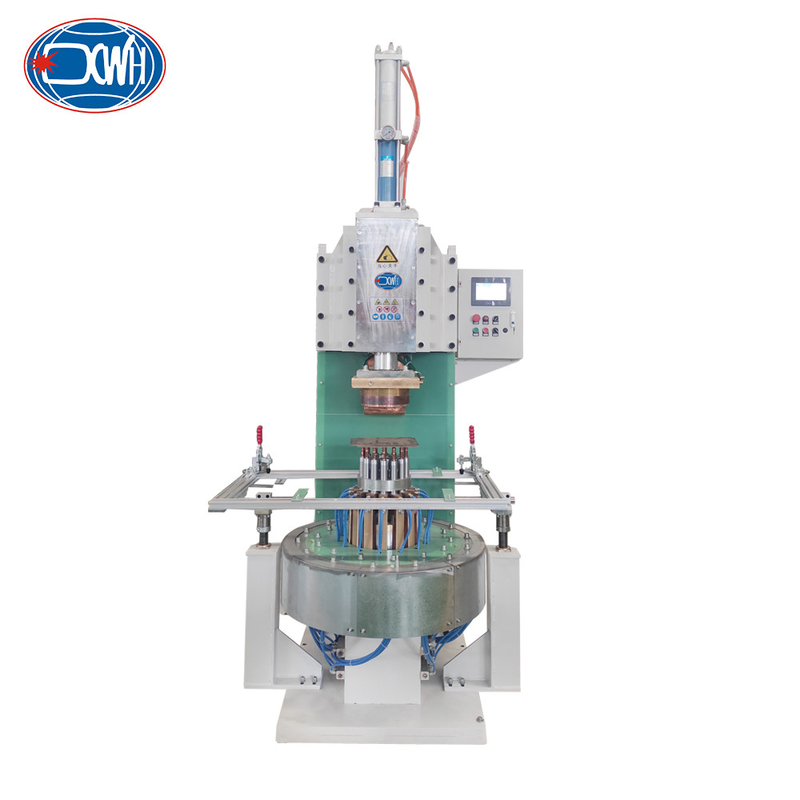

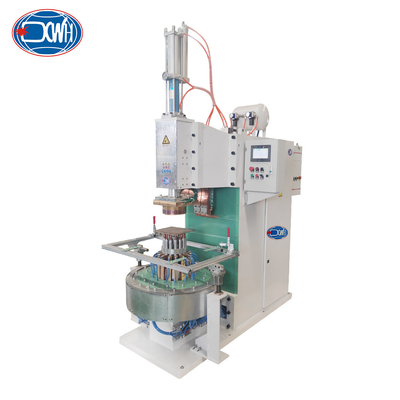

The 14 point fuel tank welding machine consists of a frame, 14 sets of elastic bottom electrodes controlled by cylinders for on/off, upper motor cylinder electrode components, welding transformer (intermediate frequency), welding machine controller, air circuit system, cooling water system, etc.
Advantages:
1. The upper electrode is pressurized by an auxiliary cylinder, which makes stroke adjustment convenient and accurate, making the workpiece operation stroke continuously adjustable.
2. The spare dedicated gas storage tank for welding machines is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
3. The upper electrode moves vertically up and down in the linear guide rail, with high precision in repeated positioning. So as to make the solder joints accurate.
4. The number of welding steps and the number of welding points per step can be adjusted arbitrarily, and the welding parameters for each step can be set separately. It can be flexibly set according to the product current requirements to improve efficiency.
Technical Parameters:
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Workpiece:
Production Line:
Application:
FAQ:
