Leaf Stationary Spot Welder Projection Welding Machines For Galvanized Sheets

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
Minimum Order Quantity: 1
Price: USD4500-USD6000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Projection Welding Machine Price Application: Galvanized Sheet Welding
Function: Multiple Types Machine Type: Resistance AC Welding Machine
Feature: High Efficiency Easy Operation Welding Material: Thin-galvanized Sheets
Max. Welding Capacity: 6+6mm After Warranty Service: Free Spare Parts, Field Installation, Commissioning And Training
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

380V Car Dent Fix Machine

,

3KVW Car Dent Puller


Product Description

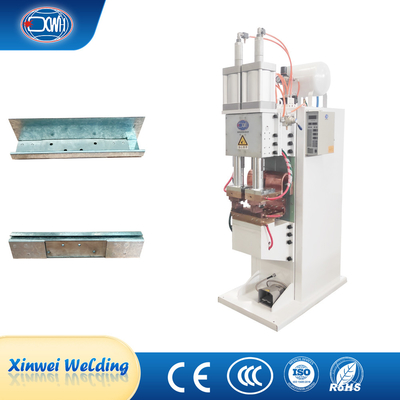

Leaf Stationary Spot Welder Projection Welding Machines For Galvanized Sheets



Product Description



The metal leaf welding machine's welding action principle: Press the start button and the equipment action will be completed by the welding controller without manual intervention.Until welding point is completed. Each welding head completes projection welding of 4 welding points. A total of 8 protrusions were welded in one clamping process. Easy to ensure the welding quality of each welding point. The welding pressure and welding current of each welding head are independently adjustable.


Technical Parameters



Item/Model   DN-40 DN-63 D(T)N-80 D(T)N-100 D(T)N-125 D(T)N-160 D(T)N-200
Rated power At 50% KVA 40 63 80 100 125 160 200
Rated primary power V 380 380 380 380 380 380 380
Secondary Voltage V 5.2 6.7 7.9 8.3 8.6 9.1 10.6
Rated frequency HZ 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Max.Short Circuit Current KA 14 15 16 18 20 28 34
Max. weld power KVA 62 86 170 280 300 330 410
Throat MM 500 500 630 630 630 630 630
Max.Froce at electrodes N 6000 6000 10000 10000 10000 12000 12000
Working stroke MM 20 20 30 40 40 50 50
Cooling Water Consumpion 2.5bar L/min 6 6 8 8 8 10 10
Electrodes tlp MM Φ13*45 Φ13*45 Φ16*45 Φ16*45 Φ16*45 Φ20*45 Φ20*45
Arms MM Φ50*150 Φ50*150 Φ80*220 Φ80*220 Φ80*220 Φ80*220 Φ80*220
Projection Clamping Plate MM 125*125 125*125 200*200 200*200 200*200 200*200 200*200
Max.Welding Capaciry A3 steel MM 2.5+2.5 3+3 4+4 4.5+4.5 5+5 5+5 6+6





Advantages



1) The formation of the weld nugget is always surrounded by a plastic ring, isolating the molten metal from the air, and the metallurgical process is simple.



2) The heating time is short, the heat is concentrated, so the heat affected zone is small, and the deformation and stress are also small. Usually, there is no need to arrange calibration and heat treatment procedures after welding.



3) No need for filler metals such as welding wires and rods, as well as welding consumables such as chlorine, ethylene glycol, and hydrogen, resulting in low welding costs.



4) Simple operation, easy to achieve mechanization and automation, low proficiency requirements for workers, and low labor intensity.



5) High productivity, low noise, and no harmful gases.





Product Structure

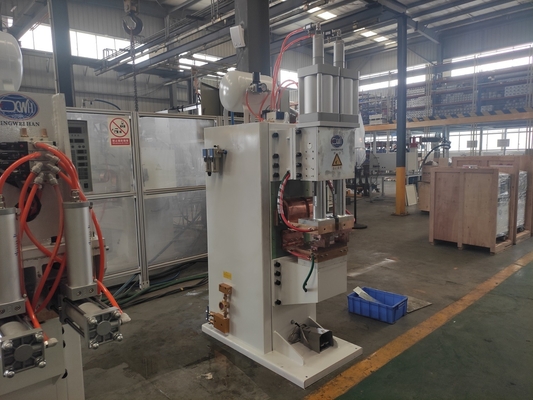

Leaf Stationary Spot Welder Projection Welding Machines For Galvanized Sheets 0





Leaf Stationary Spot Welder Projection Welding Machines For Galvanized Sheets 1



Images



Leaf Stationary Spot Welder Projection Welding Machines For Galvanized Sheets 2




Application


Leaf Stationary Spot Welder Projection Welding Machines For Galvanized Sheets 3
Leaf Stationary Spot Welder Projection Welding Machines For Galvanized Sheets 4

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
