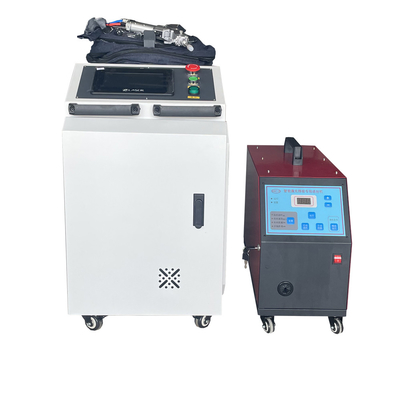

Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: XW-1000W, XW-1500W, XW-2000W
Minimum Order Quantity: 1
Price: USD5000-USD10000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Fiber Laser Welding Machine Welding Material: Aluminum, Stainless Steel, Metal Steel
MOQ: 1 Set Application: Fiber Laser Welding
Cooling System: Build-In Water Cooling Function: Laser Welding, Cutting And Rusts Removal
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Cnc Fiber Laser Welder Machine

,

1500W Fiber Laser Welder Machine


Product Description



1500W Cnc Small Portable Hand Held Handheld Fiber Laser Welding Machine For Sale



Product Description

Portable laser welding machine is a new type of welding, is also one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process belongs to the heat conduction type, that is, laser radiation heats workpiece surface and surface heat diffuses to the interior through heat conduction. By controlling the parameters of laser pulse width, energy, peak power and repetition rate, the workpiece is melted to form a specific molten pool. The laser welder is not only for laser welding, but also for rusts removal and cutting.



Technical Parameters



ItemsModels XW-1000W XW-1500W XW-2000W
Laser Power 1000W 1500W 2000W
Laser Length Customized Customized Customized
Total Power ≤6KW ≤7KW ≤9KW
Conduction Types Optical Fiber Optical Fiber Optical Fiber
Output Mode Standard QBH Standard QBH Standard QBH
Laser Line 1080±nm 1080±nm 1080±nm
Power Supply 220V±10% AC 220V±10% AC 220V±10% AC
Working Humidity <70% No Condensation <70% No Condensation <70% No Condensation
Working Temperature -10℃-45℃ -10℃-45℃ -10℃-45℃
Cooling System Industrial Chiller Industrial Chiller Industrial Chiller
Welding speed 0.7-2.0m/min 0.7-2.0m/min 0.7-2.0m/min
Operation System Hand-held Welding Hand-held Welding Hand-held Welding
Standard Output ±2% ±2% ±2%
Weight ≤185KG ≤185KG ≤185KG
Power Source 220V/50Hz/40A 220V/50Hz/60A 380V/50Hz/60A
Dimension 1000*600*1200mm 1000*600*1200mm 1000*600*1200mm




Advantages


1. Hand-held welding joint: super great original welding gun, only weighs 0.7kg.
2. Brand laser: optional brand, quality assurance, to meet various needs.
3. Laser water cooler: automatic constant temperature adjustment, intelligent; High precision for temperature control , adjustable.

4. Quality cow leather fiber: safe and durable, fireproof and wear-resistant; Extended optical fiber for remote operation.

5. Mainly used in aluminum, iron, stainless steel, copper and other metal sheet of the same material’s welding, as well as aluminum copper, stainless steel copper and other materials’ mixed welding.



Schematic Diagram of Product Structure



Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 0





①Hand held welding joint                                                                             ②Consumable accessories kit

③Control Panel④Optical Master⑤Wire Feeder                                          ⑥Consumable accessories kit

⑦Emergency Stop Switch, Key Switch, Power Button                                 ⑧Conducting Wire




Connect the wire, Insert the air pipe and Connect the wire feeding device



◎The yellow green line is the ground wire, the red line and the blue line are connected to a neutral line and a live line, which can be connected to the electrical box. After the connection, connect the main power line to the lower right of the back cover of the equipment, PE line to ground wire, N line to neutral line, and L line to ground wire. (Please refer to the actual laser power cord for details).

Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 1



◎Connect the connection of the gas pipe connector at the lower right of the rear cover of the equipment with the gas pipe of the oxygen cylinder flowmeter (gas pipe connector) to ensure no air leakage.

Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 2



◎Insert the power cable of the wire feeding device into the cable hauling board or distribution box, connect the interface of the reserved cable at the lower left of the rear cover of the device to the wire feeding device, and assemble the wire feeding machine.

Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 3



Fix the wire feed head on the hand holding welding head.

Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 4




Application

Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 5

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 6
Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 7
Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 8
Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 9

Cnc Small Handheld Fiber Laser Welder Machine Portable 1500W 10
