| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE, ISO |
| Model Number: | XW-1000W, XW-1500W, XW-2000W |
| Minimum Order Quantity: | 1 |
| Price: | USD5000-USD10000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Handheld Fiber Laser Welding Machine | Welding Material: | Aluminum, Stainless Steel, Metal Steel |
|---|---|---|---|
| MOQ: | 1 Set | Application: | Fiber Laser Welding |
| Cooling System: | Build-In Water Cooling | Function: | Laser Welding, Cutting And Rusts Removal |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | 1080nm Aluminium Laser Welder Machine,Mold Repair Laser Welder Machine,Handheld Fiber Laser Welding Machine |
||

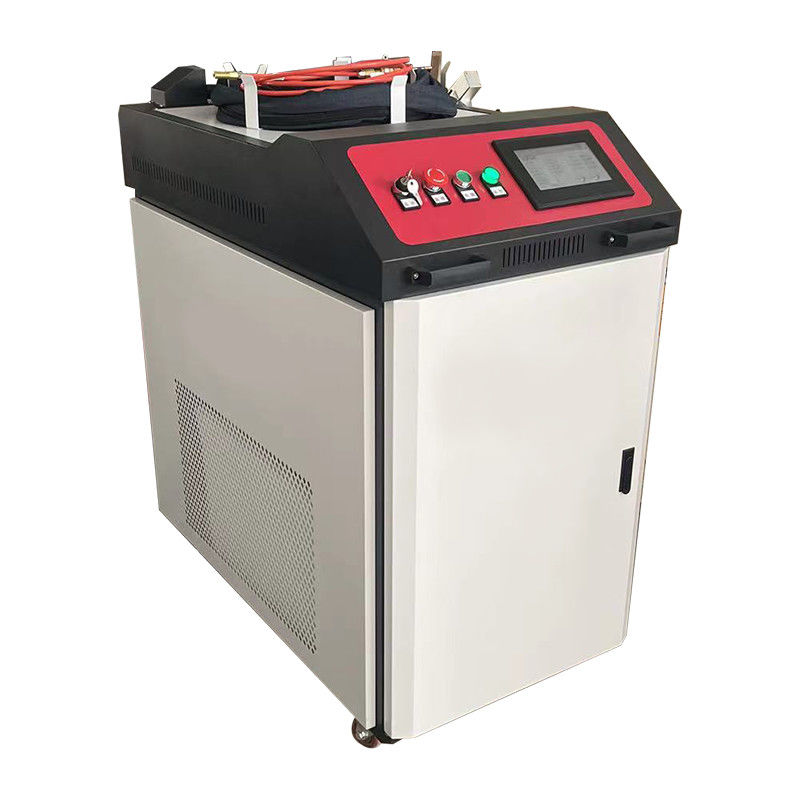

Precision Aluminium Mold Repair Handheld Welding Machine Laser Welder For Sale
How Does The Laser Welder Work?
The principle of laser welders and torches is simple: the laser beam will be the medium used to heat the surface of the materials you are fusing together. Laser welders do this by using light pulses that focus on a small area. The surface of the workpiece absorbs heat and generates heat.
Technical Parameters
| ItemsModels | XW-1000W | XW-1500W | XW-2000W |
| Laser Power | 1000W | 1500W | 2000W |
| Laser Length | Customized | Customized | Customized |
| Total Power | ≤6KW | ≤7KW | ≤9KW |
| Conduction Types | Optical Fiber | Optical Fiber | Optical Fiber |
| Output Mode | Standard QBH | Standard QBH | Standard QBH |
| Laser Line | 1080±nm | 1080±nm | 1080±nm |
| Power Supply | 220V±10% AC | 220V±10% AC | 220V±10% AC |
| Working Humidity | <70% No Condensation | <70% No Condensation | <70% No Condensation |
| Working Temperature | -10℃-45℃ | -10℃-45℃ | -10℃-45℃ |
| Cooling System | Industrial Chiller | Industrial Chiller | Industrial Chiller |
| Welding speed | 0.7-2.0m/min | 0.7-2.0m/min | 0.7-2.0m/min |
| Operation System | Hand-held Welding | Hand-held Welding | Hand-held Welding |
| Standard Output | ±2% | ±2% | ±2% |
| Weight | ≤185KG | ≤185KG | ≤185KG |
| Power Source | 220V/50Hz/40A | 220V/50Hz/60A | 380V/50Hz/60A |
| Dimension | 1000*600*1200mm | 1000*600*1200mm | 1000*600*1200mm |
Advantages
1. Better control: control in mode, speed, power, heat, etc., and control in motion. You can set it to the minimum or maximum value according to your preference.
2. Versatility of welding: Another advantage of using a hand-held laser is that you can use it for a variety of objects and materials. In addition, you can also weld different objects and materials!
3. No electrodes: We also know that you do not have to use any type of electrode. Therefore, you can expect to reduce the cost and loss of output.
4. Easy to focus: The laser beam used for welding or cutting is easy to focus; You will have optical instruments as a guide to alignment, and you will never have to consider quality.
Schematic Diagram of Product Structure
①Hand held welding joint ②Consumable accessories kit
③Control Panel④Optical Master⑤Wire Feeder ⑥Consumable accessories kit
⑦Emergency Stop Switch, Key Switch, Power Button ⑧Conducting Wire
Shutdown Sequence
①After the work stops, it is necessary to press the laser off the control panel first.
② Turn off the power button, emergency stop button, air switch, gas tank valve.
Note: The red button on the left is the emergency stop button(Press this button quickly can achieve protective measures).
③.Place the hand-held welding joint on the bracket on the top of the equipment.
