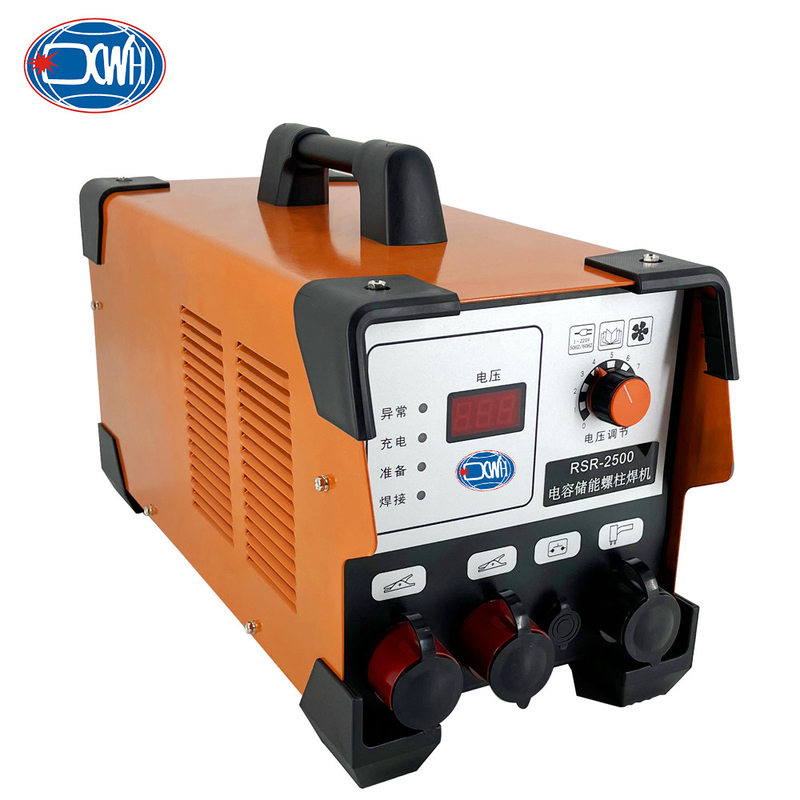

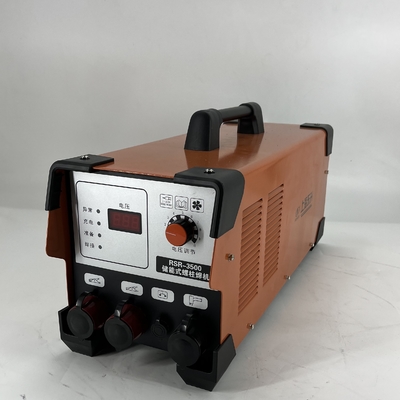

Cnc Pro Aluminum Capacitor Discharge Arc Weld Machine Shear Stud Welding Gun

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: RSR-1600, RSR-2500, RSR-3500
Minimum Order Quantity: 1
Price: USD600-USD800
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Capacitive Energy Storage Stud Welding Machine Application: Stud Welding
MOQ: 1 Set Package: Wooden Case
Production Time: 15-20 Days Type: Energy Storage
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Capacitor Discharge Arc Weld Machine

,

Cnc Pro Arc Weld Machine

,

Shear Stud Welding Machine


Product Description



Cnc Pro Cheap Aluminum Capacitor Discharge Arc Weld Shear Stud Welding Gun Price





Product Description



Energy storage stud welding is also called capacitance discharge stud welding. The equipment first charges the preset amount of energy into the capacitor, and then when welding, all the energy is released from the capacitor at one time for welding. The welding time is 1-3 milliseconds. As energy cannot be supplied continuously, it is generally used to weld studs with a diameter of 3-10mm.





Technical Parameters



Item/Model
RSR-1600
RSR-2500
RSR-3000
Input Voltage (V)
AC220
AC220
AC220
Frequency (Hz)
50/60
50/60
50/60
Rated storage energy (J) 1600 2500 3000
Diameter of welding stud (mm)
M3~M6
M3~M8
M3~M10
Thickness of welding plate (mm)
0.2~1.0
0.2~2.0
0.2~3.0
Capacitance (uf) 720000 1080000 1440000
Productivity (pcs/minute) 20 20 20
Charging voltage (V)
30~200
30~200
30~200
Overall dimension (mm)
416*245*300
416*245*300
416*245*300
Weight (kg) 12 13 14
Protection Degree IP21S IP21S IP21S





Features



1. Continuously display the energy storage voltage, which is not affected by the fluctuation of input voltage, and can automatically adapt to the changes of power grid, with over temperature self-protection function.
2. The panel is LCD, microprocessor controlled, and has expert welding specifications.
3. The equipment is light, suitable for mobile operation, and can be driven by conventional power supply.
4. Low heat generation, poor penetrability, little deformation of plates/shallow welding pool, no discoloration of the back, slight deformation or no deformation (depending on the thickness and surface finish of the workpiece, the degree of deformation varies).
5. Suitable for stud welding of carbon steel, stainless steel, copper and aluminum.

6. Application fields: electrical cabinets, household appliances, sheet metal processing, signs, insulation nails, elevators, aluminum curtain walls, electrical sets, mechanical accessories, automobile industry, kitchen equipment and metal workpieces, etc.





Welding Principle



Cnc Pro Aluminum Capacitor Discharge Arc Weld Machine Shear Stud Welding Gun 0

Having the tip of the stud contacts the workpiece and pull the welding gun switch, then the energy storage capacitor is discharged through the tip of the element.



Cnc Pro Aluminum Capacitor Discharge Arc Weld Machine Shear Stud Welding Gun 1

When the arc is ignited, a thin layer of molten metal is generated on the surface of the stud and the workpiece, and the penetration depth is about 0.1 mm.



Cnc Pro Aluminum Capacitor Discharge Arc Weld Machine Shear Stud Welding Gun 2

The stud is inserted into the molten pool, the metal solidifies, and the screw is welded firmly.





Applicable Working Environment and Conditions



This welding machine is allowed to be used under the following conditions:

1. Altitude not exceeding 1000m

2. The environment is free of corrosive gases such as acid and alkali, or other harmful gases and flammable and explosive gases.

3. The ambient air temperature range during welding shall be - 10 ℃~40 ℃.

4. Power supply quality: supply voltage fluctuation range 180-240V





Samples



Cnc Pro Aluminum Capacitor Discharge Arc Weld Machine Shear Stud Welding Gun 3



Cnc Pro Aluminum Capacitor Discharge Arc Weld Machine Shear Stud Welding Gun 4



Cnc Pro Aluminum Capacitor Discharge Arc Weld Machine Shear Stud Welding Gun 5
