Capacitor Discharge Shear Stud Welding Machine Industrial Weld Stud Types

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: RSR-1600, RSR-2500, RSR-3500
Minimum Order Quantity: 1
Price: USD600-USD800
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Capacitive Energy Storage Stud Welding Machine Application: Stud Welding
MOQ: 1 Set Package: Wooden Case
Production Time: 15-20 Days Type: Energy Storage
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Capacitor Discharge Stud Welding Machine

,

Industrial Shear Stud Welding Machine

,

ISO Capacitor Discharge Stud Welder


Product Description



Capacitor Discharge Industrial Weld Stud Types Shear Stud Welding Machine Price





Product Description



Energy storage stud welding is also called capacitance discharge stud welding. The equipment first charges the preset amount of energy into the capacitor, and then when welding, all the energy is released from the capacitor at one time for welding. The welding time is 1-3 milliseconds. As energy cannot be supplied continuously, it is generally used to weld studs with a diameter of 3-10mm.





Technical Parameters



Item/Model
RSR-1600
RSR-2500
RSR-3000
Input Voltage (V)
AC220
AC220
AC220
Frequency (Hz)
50/60
50/60
50/60
Rated storage energy (J) 1600 2500 3000
Diameter of welding stud (mm)
M3~M6
M3~M8
M3~M10
Thickness of welding plate (mm)
0.2~1.0
0.2~2.0
0.2~3.0
Capacitance (uf) 720000 1080000 1440000
Productivity (pcs/minute) 20 20 20
Charging voltage (V)
30~200
30~200
30~200
Overall dimension (mm)
416*245*300
416*245*300
416*245*300
Weight (kg) 12 13 14
Protection Degree IP21S IP21S IP21S





Features



1. Continuously display the energy storage voltage, which is not affected by the fluctuation of input voltage, and can automatically adapt to the changes of power grid, with over temperature self-protection function
2. The panel is LCD, microprocessor controlled, and has expert welding specifications
3. Small size, light weight and convenient operation
4. The welding is firm, with less splash and beautiful welding
5. Suitable for stud welding of carbon steel, stainless steel, copper and aluminum.

6. Application fields: aluminum and stainless steel curtain wall, elevator manufacturing, electrical control cabinet manufacturing, kitchenware manufacturing, communication equipment manufacturing, medical equipment manufacturing, heating and air-conditioning equipment manufacturing, food machinery manufacturing, hardware products, billboards and signboards manufacturing, etc.

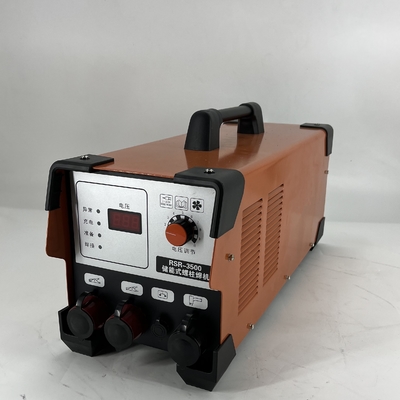

Panel diagram



Capacitor Discharge Shear Stud Welding Machine Industrial Weld Stud Types 0



Capacitor Discharge Shear Stud Welding Machine Industrial Weld Stud Types 1





Safety Warning



Noise - excessive noise is harmful to people's hearing!

·Protect your ears, use ear shields or wear other hearing protection.

·Warn bystanders that noise may cause potential damage to their hearing.


Failure - seek professional help when encountering difficulties!

·If you encounter difficulties in installation and operation, please follow the relevant contents of this manual for troubleshooting.

·If you still cannot fully understand after reading, or cannot solve the problem according to the instructions of this manual, you should contact us immediately.





Samples



Capacitor Discharge Shear Stud Welding Machine Industrial Weld Stud Types 2



Capacitor Discharge Shear Stud Welding Machine Industrial Weld Stud Types 3



Capacitor Discharge Shear Stud Welding Machine Industrial Weld Stud Types 4





Frequently Asked Questions


1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
