Shear Stud Welding Machine For Stainless Steel Threaded Bolt Pro Weld

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: RSR-1600, RSR-2500, RSR-3500
Minimum Order Quantity: 1
Price: USD600-USD800
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Capacitive Energy Storage Stud Welding Machine Application: Stud Welding
MOQ: 1 Set Voltage: AC 220v 50/60HZ
Production Time: 15-20 Days Type: Energy Storage
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Threaded Bolt Stud Welding Machine

,

SS Threaded Bolt Stud Welder

,

60HZ Shear Stud Welding Machine


Product Description



Best Headed Stainless Steel Threaded Bolt Pro Weld Shear Stud Welding Machine





Product Description



Capacitive energy storage stud welding machine is a welding process that uses the principle of capacitive discharge to weld the stud on the workpiece. The discharge time is only 3-6 milliseconds, so that the stud can be welded on a 0.5-3 mm thin plate without causing deformation, discoloration or burning through.





Technical Parameters



Item/Model
RSR-1600
RSR-2500
RSR-3000
Input Voltage (V)
AC220
AC220
AC220
Frequency (Hz)
50/60
50/60
50/60
Rated storage energy (J) 1600 2500 3000
Diameter of welding stud (mm)
M3~M6
M3~M8
M3~M10
Thickness of welding plate (mm)
0.2~1.0
0.2~2.0
0.2~3.0
Capacitance (uf) 720000 1080000 1440000
Productivity (pcs/minute) 20 20 20
Charging voltage (V)
30~200
30~200
30~200
Overall dimension (mm)
416*245*300
416*245*300
416*245*300
Weight (kg) 12 13 14
Protection Degree IP21S IP21S IP21S





Features



1. This machine is mainly used for stud connection of various structural parts and decorative parts of low carbon steel, stainless steel and aluminum alloy.Such as various low-carbon steel or stainless steel cabinets, instrument housings, car bodies, kitchenware, hardware products and welding of fixed studs on aluminum alloy ceiling.

2. It will not damage the paint, coating or cover on the back of the welding, and has the characteristics of high efficiency, energy saving, convenience, no deformation and discoloration of the workpiece, and can be welded in various positions, which can replace the fastening method of riveting or drilling.

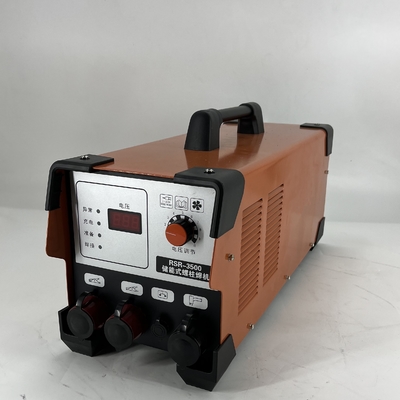

Panel diagram



Shear Stud Welding Machine For Stainless Steel Threaded Bolt Pro Weld 0



Shear Stud Welding Machine For Stainless Steel Threaded Bolt Pro Weld 1





Safety Warning



Smoke - may be harmful to health!

-Keep the head out of the smoke.

-During arc welding, use ventilation or air extraction device to avoid inhaling welding gas.


Fire
-Welding sparks may cause fire, please make sure there is no flammable near the welding station.





Samples



Shear Stud Welding Machine For Stainless Steel Threaded Bolt Pro Weld 2

Frequently Asked Questions


1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.

Shear Stud Welding Machine For Stainless Steel Threaded Bolt Pro Weld 3
Shear Stud Welding Machine For Stainless Steel Threaded Bolt Pro Weld 4
Shear Stud Welding Machine For Stainless Steel Threaded Bolt Pro Weld 5
Shear Stud Welding Machine For Stainless Steel Threaded Bolt Pro Weld 6

Shear Stud Welding Machine For Stainless Steel Threaded Bolt Pro Weld 7
