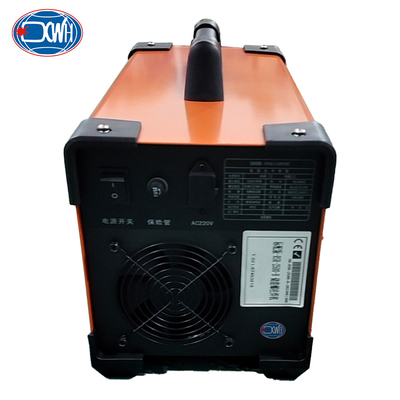

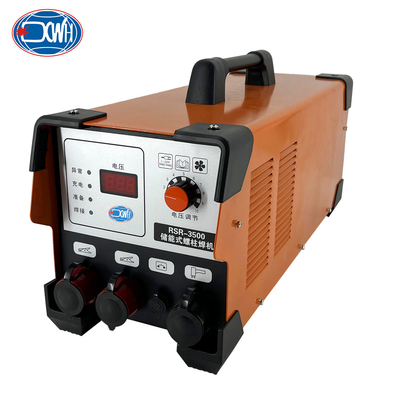

Body Work Aluminium Weld Stud Welding Machine For Threaded Studs

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: RSR-1600, RSR-2500, RSR-3500
Minimum Order Quantity: 1
Price: USD600-USD800
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Capacitive Energy Storage Stud Welding Machine Application: Stud Welding
MOQ: 1 Set Package: Wooden Case
Production Time: 15-20 Days Type: Energy Storage
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Threaded Stud Welding Machine

,

Bodywork Aluminium Stud Welding Machine

,

Aluminum Studs For Stud Welder


Product Description



Body Work Aluminium Weld Stud Welding Machine Manufacturers For Threaded Studs





Product Description



Energy storage stud welding is also called capacitance energy storage stud welding, capacitance discharge stud welding, etc. It is called energy storage welding for short.Before welding, store a specified amount of charge in the large capacitor in advance, and then release all the energy in the large capacitor (usually only 1-3ms) instantaneously through silicon controlled rectifier, so as to achieve the effect of instant welding.





Technical Parameters



Item/Model
RSR-1600
RSR-2500
RSR-3000
Input Voltage (V)
AC220
AC220
AC220
Frequency (Hz)
50/60
50/60
50/60
Rated storage energy (J) 1600 2500 3000
Diameter of welding stud (mm)
M3~M6
M3~M8
M3~M10
Thickness of welding plate (mm)
0.2~1.0
0.2~2.0
0.2~3.0
Capacitance (uf) 720000 1080000 1440000
Productivity (pcs/minute) 20 20 20
Charging voltage (V)
30~200
30~200
30~200
Overall dimension (mm)
416*245*300
416*245*300
416*245*300
Weight (kg) 12 13 14
Protection Degree IP21S IP21S IP21S





Features



1. Continuously display the energy storage voltage, which is not affected by the fluctuation of input voltage, and can automatically adapt to the changes of power grid, with over temperature self-protection function.
2. The panel is LCD, microprocessor controlled, and has expert welding specifications.
3. The equipment is light, suitable for mobile operation, and can be driven by conventional power supply.
4. Low heat generation, poor penetrability, little deformation of plates/shallow welding pool, no discoloration of the back, slight deformation or no deformation (depending on the thickness and surface finish of the workpiece, the degree of deformation varies).
5. It is suitable for welding on thin plates without worrying about welding through the workpiece, and the thinnest can be 0.3mm. It is rich in weldable materials. It can weld not only low carbon steel and stainless steel, but also aluminum, copper and other non-ferrous metals.

6. Main application industries: computer cabinet and other sheet metal industries, kitchen appliances manufacturing industry, medical equipment manufacturing industry, box elevator manufacturing industry, aluminum curtain wall manufacturing industry.





Welding Principle



Body Work Aluminium Weld Stud Welding Machine For Threaded Studs 0

Having the tip of the stud contacts the workpiece and pull the welding gun switch, then the energy storage capacitor is discharged through the tip of the element.



Body Work Aluminium Weld Stud Welding Machine For Threaded Studs 1

When the arc is ignited, a thin layer of molten metal is generated on the surface of the stud and the workpiece, and the penetration depth is about 0.1 mm.



Body Work Aluminium Weld Stud Welding Machine For Threaded Studs 2



The stud is inserted into the molten pool, the metal solidifies, and the screw is welded firmly.





Safety Warning



Noise - excessive noise is harmful to people's hearing!

·Protect your ears, use ear shields or wear other hearing protection.

·Warn bystanders that noise may cause potential damage to their hearing.


Failure - seek professional help when encountering difficulties!

·If you encounter difficulties in installation and operation, please follow the relevant contents of this manual for troubleshooting.

·If you still cannot fully understand after reading, or cannot solve the problem according to the instructions of this manual, you should contact us immediately.





Samples



Body Work Aluminium Weld Stud Welding Machine For Threaded Studs 3



Frequently Asked Questions


1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
