| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE, ISO |
| Model Number: | RSR-1600, RSR-2500, RSR-3500 |
| Minimum Order Quantity: | 1 |
| Price: | USD600-USD800 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Capacitive Energy Storage Stud Welding Machine | Application: | Stud Welding |
|---|---|---|---|
| MOQ: | 1 Set | Package: | Wooden Case |
| Production Time: | 15-20 Days | Type: | Energy Storage |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Welding Studs To Plate Stud Welder,Screw Threaded Cd Pro Stud Welder,IP21S Stud Welding Machine |
||

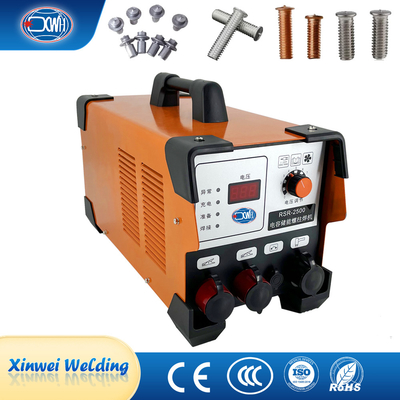

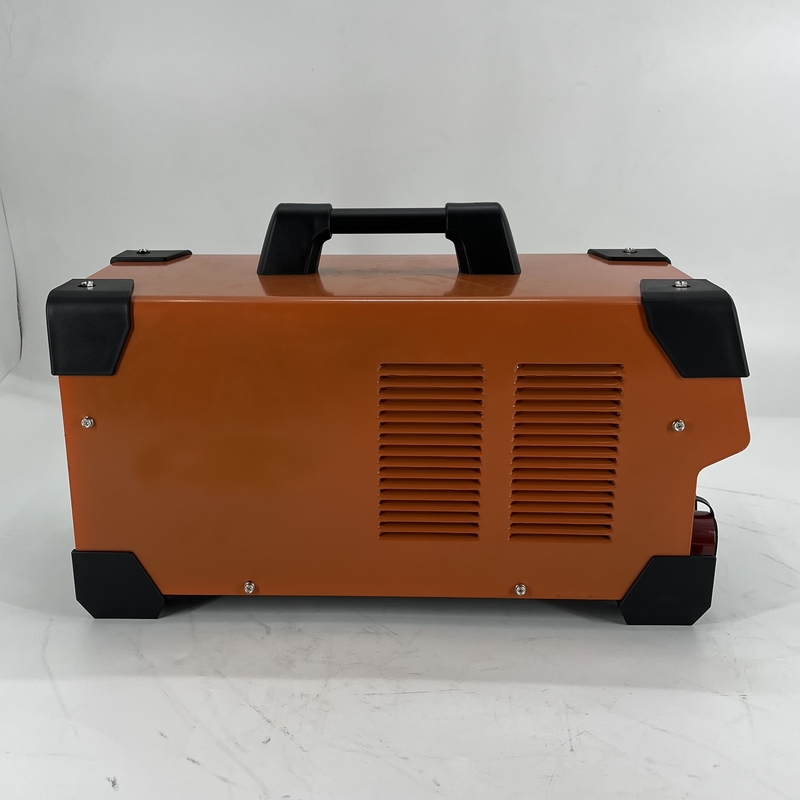

Screw Threaded Cd Pro Weld Aluminum Welding Studs To Plate Stud Welder For Sale
Product Description
Energy storage stud welding is also called capacitance energy storage stud welding, capacitance discharge stud welding, etc. It is called energy storage welding for short.Before welding, store a specified amount of charge in the large capacitor in advance, and then release all the energy in the large capacitor (usually only 1-3ms) instantaneously through silicon controlled rectifier, so as to achieve the effect of instant welding.
Technical Parameters
| Item/Model |
RSR-1600
|
RSR-2500
|
RSR-3000
|
| Input Voltage (V) |
AC220
|
AC220
|
AC220
|
| Frequency (Hz) |
50/60
|
50/60
|
50/60
|
| Rated storage energy (J) | 1600 | 2500 | 3000 |
| Diameter of welding stud (mm) |
M3~M6
|
M3~M8
|
M3~M10
|
| Thickness of welding plate (mm) |
0.2~1.0
|
0.2~2.0
|
0.2~3.0
|
| Capacitance (uf) | 720000 | 1080000 | 1440000 |
| Productivity (pcs/minute) | 20 | 20 | 20 |
| Charging voltage (V) |
30~200
|
30~200
|
30~200
|
| Overall dimension (mm) |
416*245*300
|
416*245*300
|
416*245*300
|
| Weight (kg) | 12 | 13 | 14 |
| Protection Degree | IP21S | IP21S | IP21S |
Features
1. Continuously display the energy storage voltage, which is not affected by the fluctuation of input voltage, and can automatically adapt to the changes of power grid, with over temperature self-protection function.
2. The panel is LCD, microprocessor controlled, and has expert welding specifications.
3. The equipment is light, suitable for mobile operation, and can be driven by conventional power supply.
4. Low heat generation, poor penetrability, little deformation of plates/shallow welding pool, no discoloration of the back, slight deformation or no deformation (depending on the thickness and surface finish of the workpiece, the degree of deformation varies).
5. It is suitable for welding on thin plates without worrying about welding through the workpiece, and the thinnest can be 0.3mm. It is rich in weldable materials. It can weld not only low carbon steel and stainless steel, but also aluminum, copper and other non-ferrous metals.
6. Main application industries: computer cabinet and other sheet metal industries, kitchen appliances manufacturing industry, medical equipment manufacturing industry, box elevator manufacturing industry, aluminum curtain wall manufacturing industry.
Welding Principle
Common Troubleshooting
A. Digital voltmeter does not work:
① Whether the power supply is normal;
② Whether the power connection meets the requirements;
③ The power fuse is burnt out;
④ The indicator lamp is broken.
B. The indicator light for welding is not on:
① Voltmeter has voltage display, the lamp is not on, and the indicator is broken;
② If the voltmeter does not display voltage, the charging thyristor may be damaged or the control circuit may be damaged.
C. Cannot weld:
① The welding gun switch is damaged;
② The discharge thyristor is damaged;
③ The control board is broken;
④ The welding torch cable is disconnected.
